This laboratory combines the best of both OPAL-RT and Festo solutions to deliver academic researchers and teachers the ideal Hardware-in-the-Loop (HIL) and Rapid Control Prototyping (RCP) simulation system to conduct experiments and teach in the fields of electrical machinery, power converters and wind energy generation.

The Power System teaching laboratory is intended to perform transient stability analysis of electric grids. The basic power grid example, covered in all fundamental electric grids courses, is analyzed in time-domain and phasor-domain.

Starting at CAD$18,788

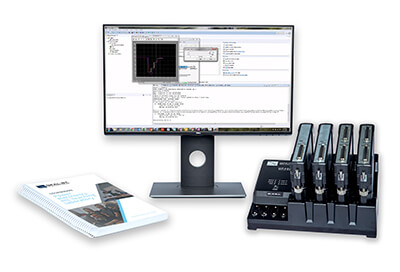

This educational courseware based on a OP4510 intended to teach power electronics to university undergraduate students. Students can experiment and learn power electronics, such as converters, rectifiers, and inverters, including the control logic with HIL and RCP Tools commonly used in innovative power electronics industry.

Starting at CAD$22,624

Modular, flexible and configurable, the power electronics test bench combines a state-of-the-art Hardware-in-the-Loop (HIL) simulator from OPAL-RT with Imperix’s Rapid Control Prototyping (RCP) system and real power hardware. It enables rapid development of power electronics, drives and smart grid applications across industry and academia.

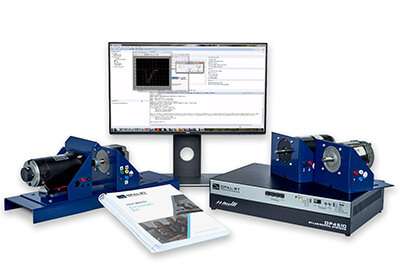

This courseware kit helps to master synchronous and asynchronous machines, from parameter identification to full operation in generator and motor modes. Our electric machine teaching laboratory comes in two(2) sections with five(5) modules each.

Starting at CAD$23,884

The Power System (PS) teaching laboratory is intended to perform transient stability analysis of electric grids.
Module 1: Power flow w/o Faults
Module 2: Damper Windings
Module 3: Faults & Recovery

Starting at CAD$1,274

Power electronics HIL teaching laboratory is an educational courseware intended to teach power electronics to university undergraduate students.
Module 1: DC-DC Choppers
Module 2: AC-DC Rectifiers
Module 3: DC-AC Inverters
Module 4: Three-Phase Three-Level NPC Inverter/Rectifier

Starting at CAD$5,110

The electric machines teaching laboratory constitutes a fundamental learning tool to thoroughly understand synchronous and asynchronous machines. Our courseware comes in two section with five modules each.

Starting at CAD$6,370

The OP4512 is a compact, entry-level simulator that combines all of OPAL-RT’s strengths in high-performance Rapid Control Prototyping (RCP) and Hardware-in-the-loop (HIL) simulation. This real-time power grid simulator offers the best performance at an affordable price.

The OP5705XG, backed by nearly two decades of expertise in the development of high-performance simulation hardware, is our customers’ preferred simulation platform, used in both industry and academia. It combines the performance, versatility and reliability that are ideal for demanding HIL applications.

ScopeView is used for signal visualization, data analysis and monitoring. In both real-time and offline modes, ScopeView displays, analyzes and compares waveforms acquired from various environments, data acquisition systems and field equipment. Scopeview is an ideal tool for engineers needing to perform mathematical and electrical calculations, conduct post-processing analysis and produce reports.

Starting at CAD$3,087

TestView provides a test automation tool specifically developed to accelerate testing, perform exhaustive analysis and guarantee test reproducibility. Use TestView to easily prepare complex test sequences in a shorter period of time. Integrated with HYPERSIM®, TestView enables additional cost-savings, as no additional testing software integration is required.

Starting at CAD$8,372

Complete and flexible solution for your HIL simulation needs. Powered by the renowned eHS electrical solver, the OP4512 HIL system offers the best performance at an affordable price.

Starting at CAD$36,844

Open and flexible HIL solution for protection relays based on Matlab/Simulink®. Driven by RT-LAB / ARTEMIS, the OP4512 protection HIL system is designed for R&D testing as well as validation of new protection algorithms.

Starting at CAD$47,278

Designed by power system engineers for power system engineers. This solution provides large and complex model-based or basic functional test scenarios, while simultaneously supporting an array of inputs and outputs for uncompromised connectivity.

Starting at CAD$47,114

The OP4610XG is a powerful all-in-one solution in a compact desktop form factor that combines the latest AMD RyzenTM processing cores with the power of a Xilinx® Kintex®-7 410T FPGA while supporting an extensive list of communication protocols to meet the requirements for demanding Hardware-in-the-Loop (HIL) and Rapid Control Prototyping (RCP) applications.

The OP5707XG offers an unequalled level of FPGA performance and optical connectivity to meet top-level requirements. An all-in-one solution, the OP5707XG combines the power of the Xilinx® Virtex®-7 FPGA with up to 32 of the latest Intel® Xeon® processing cores and supports an extensive list of communication protocols.

Based on Intel^® Xeon^® with up to 44 cores, the OP5033XG simulator serves as an ideal master system for configurations requiring FPGA and I/O expansion units. It also provides an ideal platform for real-time cybersecurity applications, in which only network protocols such as C37.118 and IEC61850 are required for hardware integration, as well as for users simply wishing to accelerate their offline simulations using OPAL-RT’s parallel processing technology.

The OP4512 is a compact, entry-level simulator that combines all of OPAL-RT’s strengths in high-performance Rapid Control Prototyping (RCP) and Hardware-in-the-loop (HIL) simulation. This real-time power grid simulator offers the best performance at an affordable price.

The OP5705XG, backed by nearly two decades of expertise in the development of high-performance simulation hardware, is our customers’ preferred simulation platform, used in both industry and academia. It combines the performance, versatility and reliability that are ideal for demanding HIL applications.

ScopeView is used for signal visualization, data analysis and monitoring. In both real-time and offline modes, ScopeView displays, analyzes and compares waveforms acquired from various environments, data acquisition systems and field equipment. Scopeview is an ideal tool for engineers needing to perform mathematical and electrical calculations, conduct post-processing analysis and produce reports.

Starting at CAD$3,087

TestView provides a test automation tool specifically developed to accelerate testing, perform exhaustive analysis and guarantee test reproducibility. Use TestView to easily prepare complex test sequences in a shorter period of time. Integrated with HYPERSIM®, TestView enables additional cost-savings, as no additional testing software integration is required.

Starting at CAD$8,372

Specialized power electronics Rapid Control Prototyping simulator for fast switching converter and drive applications.

Starting at CAD$26,708

The OP4610XG is a powerful all-in-one solution in a compact desktop form factor that combines the latest AMD RyzenTM processing cores with the power of a Xilinx® Kintex®-7 410T FPGA while supporting an extensive list of communication protocols to meet the requirements for demanding Hardware-in-the-Loop (HIL) and Rapid Control Prototyping (RCP) applications.

The OP5707XG offers an unequalled level of FPGA performance and optical connectivity to meet top-level requirements. An all-in-one solution, the OP5707XG combines the power of the Xilinx® Virtex®-7 FPGA with up to 32 of the latest Intel® Xeon® processing cores and supports an extensive list of communication protocols.

Based on Intel^® Xeon^® with up to 44 cores, the OP5033XG simulator serves as an ideal master system for configurations requiring FPGA and I/O expansion units. It also provides an ideal platform for real-time cybersecurity applications, in which only network protocols such as C37.118 and IEC61850 are required for hardware integration, as well as for users simply wishing to accelerate their offline simulations using OPAL-RT’s parallel processing technology.
