System configuration

Customize


Hardware

I/O modules specification

You can select a maximum of 4 cards.

Analog I/O

Quantity Product Channels Resolution Voltage range Sampling frequency Price

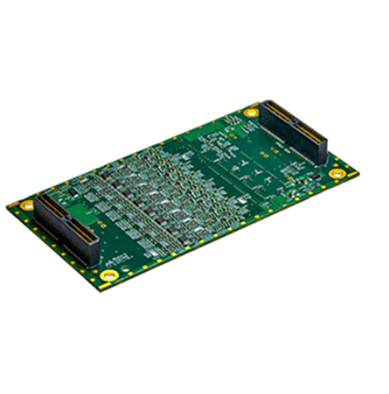

OP5342 Analog Input 16 16 bits ± 20V 2MS/s CAD$4,025

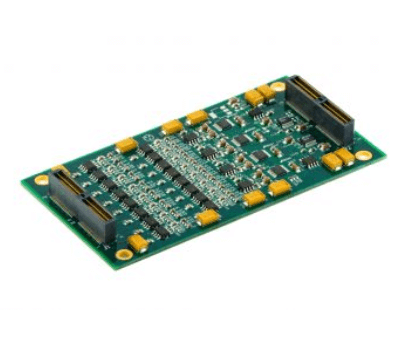

OP5330 Analog Output 16 16 bits ± 16V 1 MS/s CAD$3,468

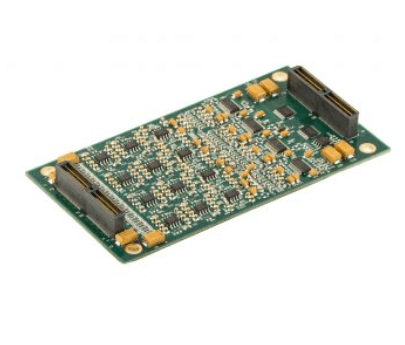

OP5340 Analog Input 16 16 bits ± 20V 500 kS/s CAD$3,468

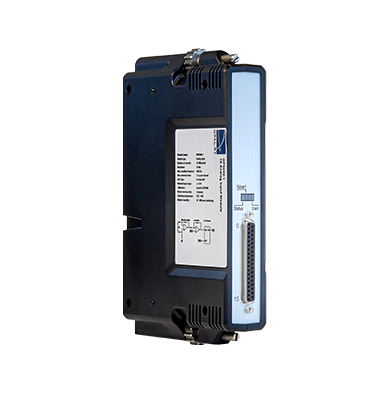

OP4242 Analog Input 16 16 bits ± 20V 2MS/s CAD$2,645
OP4230 Analog Output 16 16 bits ± 16V 1 MS/s CAD$1,332
OP4240 Analog Input 16 16 bits ± 20V 500 kS/s CAD$1,482

Digital I/O

Quantity Product Channels Voltage range Rising Time Price

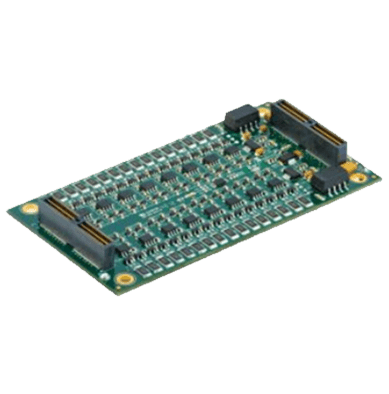

OP5360 Digital Output 32 5V to 30V 65 ns CAD$2,187

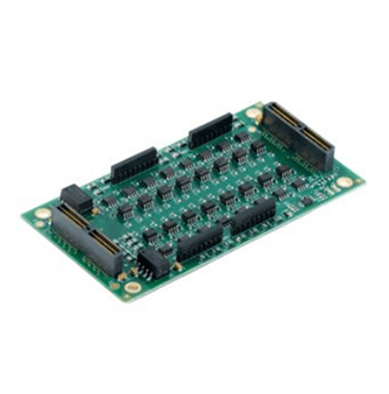

OP5353 Digital Input 32 4.5V to 50V 40 ns CAD$1,800

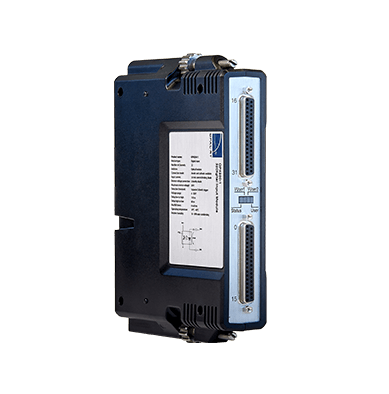

OP4260 Digital Output 32 5V to 30V 65 ns CAD$1,373
OP4250 Digital Input 32 4.5V to 50V 40 ns CAD$803
Choosing your Hardware Configuration
Measurement solution | Optional driver for I/O

RS422 Adapter
OP4510 V2-1 RS422 Connectors
DB9 connector module for RS422 signals, typically used to transmit differential encoder inputs and outputs. Transmit and receive 6 digital, 6 PWM, or 2 encoder signals.

CAD$912

Selectable 32 timed-stamped digital inputs and 32 timed digital outputs for OP4510
Timed Generation and Measurement Firmware
Capture and generate three-phase PWM, and other timed signals, with high-precision. Perform fast measurement and analysis of timed signals. The firmware provides its own MATLAB®/Simulink® blockset.

CAD$1,434

Selectable 32 timed-stamped digital inputs and 32 timed digital outputs for OP4200
Timed Generation and Measurement Firmware
Capture and generate three-phase PWM, and other timed signals, with high-precision. Perform fast measurement and analysis of timed signals. The firmware provides its own MATLAB®/Simulink® blockset.

CAD$1,352

Software

| Default software
| Optional Software

RT-XSG toolbox for FPGA real-time simulation
RT-XSG
RT-XSG offers ready-to-use Simulink function blocks that facilitate FPGA programming. It allows users to easily manage FPGA configuration, and the transfer of high-bandwidth data between RT-LAB models and custom systems running on the FPGA.

CAD$3,825

Real-time simulation up to?1000 bus network
ePHASORSIM
ePHASORSIM is ideal for projects that involve dynamic simulation of large-scale electromechanical power systems. With solver timesteps of a few miliseconds, it is perfect for EMS/SCADA system testing and integration, protection and control, training and power system studies.

CAD$14,663

eHS64 power electronics solver provides 72 coupled switches
eHS64
eHS is a reprogrammable FPGA-based electrical solver from the eFPGASIM suite that provides a convenient user interface to enable you to import real-time models, created using the simulation tool of your choice, with unprecedented speed and accuracy.

CAD$8,651

TestView Sequence for distance testing
TestView test sequence add-on for distance protection relay (IEC 60255-100)
Systematic type testing of protection distance relays and uniform test reporting to easily compare different protection relay manufacturers.

CAD$1,760

HYPERSIM® Test automation tool
TestView for HYPERSIM® HX30
Integrated with HYPERSIM®, TestView provides a test automation tool specifically developed to accelerate testing, perform exhaustive analysis and guarantee test reproducibility.

CAD$4,190

Real-time Simulation of up to 30 nodes (10 x 3-phase buses)
HYPERSIM® HX30
HYPERSIM® provides power system and protection engineers the right tools to overcome challenges thanks to a complete real-time simulation platform for Hardware-in-the-Loop (HIL) testing.

CAD$18,403

Windows based model editing software
HYPERSIM® Editor
HYPERSIM offers an intuitive, Windows based, software interface that enables power system engineers to build complex topologies and quickly tackle operational and reliability issues. - 1 User - Node-locked host - single user license only

CAD$1,676

Waveform Visualization and Analysis Software
ScopeView for HYPERSIM® HX30
ScopeView is used for signal visualization, data analysis and monitoring. In both real-time and offline modes, ScopeView displays, analyzes and compares waveforms acquired from various environments, data acquisition systems and field equipment.

CAD$1,676

Real-time Simulation of up to 75 states (sum of capacitors and inductors)
eMEGASIM FX75
Specialized power system solver add-on to RT-LAB to optimize Simscape power system real-time performance. eMEGASIM is largely used in microgrid and DER(Distributed energy Resources) applications.

CAD$19,062

eHS32 power electronics solver provides 48 coupled switches
eHS32
eHS is a reprogrammable FPGA-based electrical solver from the eFPGASIM suite that provides a convenient user interface to enable you to import real-time models, created using the simulation tool of your choice, with unprecedented speed and accuracy.

CAD$4,326

RT-XSG toolbox for FPGA real-time simulation
RT-XSG
RT-XSG offers ready-to-use Simulink function blocks that facilitate FPGA programming. It allows users to easily manage FPGA configuration, and the transfer of high-bandwidth data between RT-LAB models and custom systems running on the FPGA.

CAD$3,825

Real-time Simulation Software
RT-LAB®
RT-LAB handles everything for real-time simulation, including code generation, with an easy-to-use interface. With just a few clicks, a Simulink® model becomes an interactive real-time simulation application.

CAD$0
Choosing your Software Solution

Communication protocols

Time Synchronization GPS, IEEE 1588, 1PPS, IRIG-B with SFP connectors
Time synchronization card SFP
The OP3812-SFP board is required for accurate time synchronization (0.1 ppm oscillator) and provides SFP connections.

CAD$6,145

Time Synchronization GPS, IEEE 1588, 1PPS, IRIG-B with RJ45 connectors
Time synchronization card RJ45
The OP3811-RJ45 board is required for accurate time synchronization (0.1 ppm oscillator) and provides RJ45 connections.

CAD$6,145

Serial communication protocol using TCP-IP, RTU or ASCII interfaces
Modbus Master
Modbus is an easily deployable, simple and robust serial communication protocol. The Modbus master is a virtual device that actively polls data from one or multiple devices (slave). Capable of polling up to 50 data points.

CAD$3,491

Serial communication protocol using TCP-IP, RTU or ASCII interfaces
Modbus Slave
Modbus is an easily deployable, simple and robust serial communication protocol. The Modbus slave is a virtual passive device, waiting for the master to poll data. Capable of receiving and transmitting up to 50 data points.

CAD$3,491

Distributed Network Protocol master
DNP3 Master
DNP3 is used between components in process automation systems. The master is a virtual device that actively polls data from one or multiple devices (slave). Capable of polling up to 50 data points.

CAD$3,491

Distributed Network Protocol slave
DNP3 Slave
DNP3 is used between components in process automation systems. The slave is the counterpart of the master. It is a virtual passive device, waiting for the master to poll data. Capable of receiving and transmitting up to 50 data points.

CAD$3,491

Master communication protocol for PMU interface and synchrophasor
C37.118 Master
C37.118 protocol defines synchrophasors, frequency, and rate of change of frequency (ROCOF) measurement under all operating conditions. The master is a virtual device that actively polls data from one or multiple devices (slave). Capable of polling up to 50 data points.

CAD$3,491

Slave communication protocol for PMU interface and synchrophasor
C37.118 Slave
C37.118 protocol defines synchrophasors, frequency, and rate of change of frequency (ROCOF) measurement under all operating conditions. The slave is the counterpart of the master. It is a virtual passive device, waiting for the master to poll data. Capable of receiving and transmitting up to 50 data points.

CAD$3,491

IEC 61850-9-2 Sampled Values data integrity manipulation
IEC 61850-9-2 SV DIM
IEC 61850-9-2 Sampled Values data integrity manipulation, lets the user manipulates quality bits or inject one or multiple faults in the IEC 61850-9-2 streams.

CAD$1,466

Sampled Value communication protocols for protection relay interface
IEC 61850-9-2 SV
The IEC 61850-9-2 Sampled Values provides fast transmission and reception of voltages, currents and status information between transformers and transducers (CT, PT?), and primary power system equipment. Simulators can be used to emulate merging unit or to receive data from real merging unit. Publisher and Subscriber with up to 50 data points.

CAD$3,491

GOOSE Communication protocols for protection relays
IEC 61850-8-1 GOOSE
The IEC 61850-8-1 GOOSE provides high speed (< 4 ms) peer-to-peer exchange of status and control commands between logical nodes of the substation protection, control, monitoring and logging systems. Publisher and Subscriber with up to 50 data points.

CAD$3,491

CAN bus interface for OP4510
CAN Bus interface card
Integrated into RT-LAB software, the board creates an interface between the OP4510 real time system and CAN bus. It features four (4) CAN channels, and its associated Simulink® block library.

CAD$3,145

CAN Driver Protocol
CAN Bus interface board
Integrated into RT-LAB software, the board creates an interface between the OP4200 real time system and CAN bus. It features two (2) CAN channels, and its associated Simulink® block library.

CAD$1,415
Choosing your Communications Protocol(s)
