The case for Hardware‑In‑The‑Loop testing in microgrid development

Key Takeaways

• Hardware in the loop gives microgrid teams a safe and practical way to test controllers against detailed simulations before any field deployment.

• Early lab validation reduces commissioning risk, saves time on site, and helps projects meet reliability expectations on day one.

• Testing complex interactions between multivendor devices in HIL exposes hidden issues in control logic, communications, and protection that traditional studies often miss.

• Industry guidance now recognises microgrid HIL as a key part of modern controller validation, which supports stronger internal and external confidence in project outcomes.

• Working with experienced real time simulation partners helps teams build repeatable HIL workflows that improve microgrid stability, cost control, and delivery predictability.

Microgrid projects have no room for guesswork when it comes to ensuring reliability from day one. These systems juggle many moving parts – from inverter-based renewables to fast-switching power electronics – and even a minor control flaw can snowball into costly downtime if left unaddressed. Hardware-in-the-loop (HIL) testing has emerged as an essential approach to manage this complexity and eliminate late-stage surprises. With decades of real-time simulation experience, we have seen microgrid teams achieve the best results when they adopt HIL testing early.

This approach links actual controllers to high-fidelity microgrid simulations, allowing engineers to safely expose control systems to faults, load swings, and islanding events in the lab. This proactive validation uncovers design issues well before installation, saving weeks of on-site troubleshooting and safeguarding project budgets.

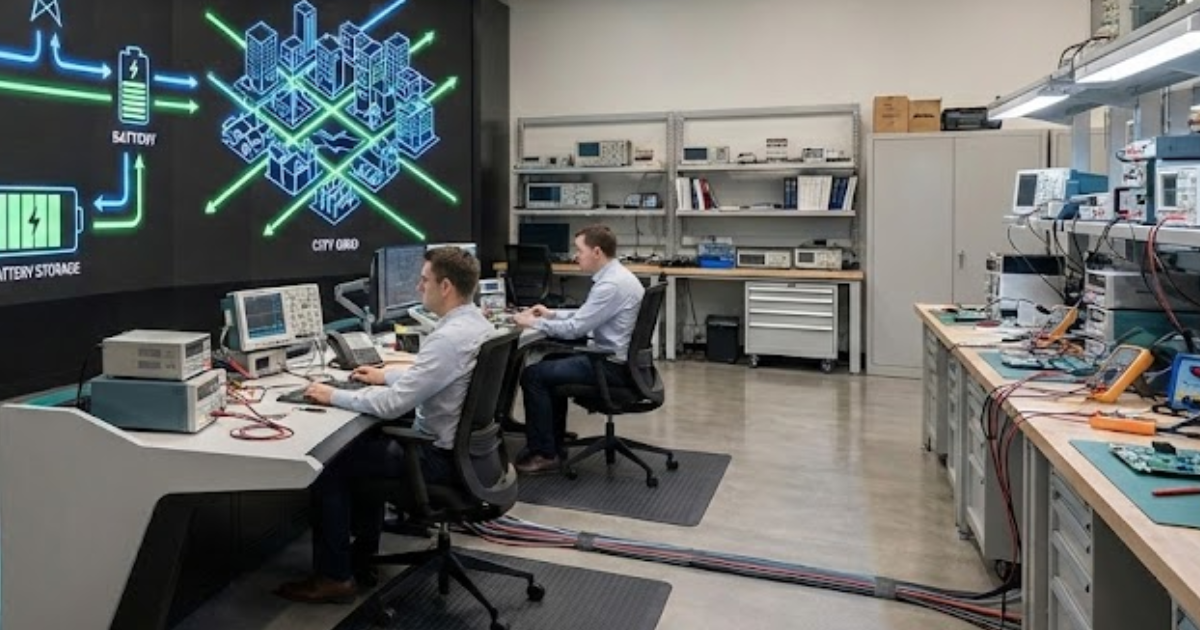

Microgrids are too complex for trial and error testing

Relying on trial-and-error testing in the field is a risky strategy for microgrids. These smaller-scale grids bring together diverse generation sources, battery storage, power converters, and control devices that all must work in unison. Each microgrid tends to be a custom assembly of components from different vendors, each with its own communication protocols and control logic. No widely accepted standard guarantees that one manufacturer’s controller will seamlessly talk to another’s inverter. This lack of uniformity makes integration tricky and unpredictable.

• Variable topologies and dynamic flows: Microgrids often switch configurations (grid-connected vs. islanded, different generation mixes), which means power flows and fault paths can change rapidly. Testing every possible permutation in the field is impractical.
• Multivendor equipment integration: A typical microgrid might include a solar inverter from one company, a battery system from another, and a third-party controller. If these parts cannot “talk” to one another—a common issue given the lack of widely accepted standards across vendors—the microgrid will not operate effectively.
• Complex control algorithms: Advanced controllers manage everything from dispatching resources to transitioning between modes. They involve sophisticated logic (for example, balancing loads during an unplanned islanding event) that is hard to validate through ad hoc field tests. Subtle bugs in control code may go unnoticed until they cause problems.
• Fast transients and protection challenges: Inverter-based sources react in milliseconds, and protection devices must respond just as swiftly to faults. Attempting to reproduce these fast transients on actual equipment is dangerous and can easily damage hardware.
• Safety and cost risks of field tests: Extreme scenarios like blackouts or equipment failures cannot be safely tested on a real microgrid, and any field trial may require costly outages.

Microgrids are intricate systems where traditional “build first, fix later” methods fall short. Critical issues may only surface during commissioning or operation, when fixes are far more expensive and time-consuming. Developers need a better approach that reveals problems early, without endangering physical equipment. Researchers at the U.S. National Renewable Energy Laboratory underscore this need by noting that HIL simulations can de-risk microgrid deployments, enabling engineers to probe conditions that would be unsafe or impractical to test on a live system. This is where hardware-in-the-loop provides a much-needed safety net.

Hardware-in-the-loop provides a safe proving ground for microgrid controllers

Hardware-in-the-loop testing offers microgrid engineers a controlled “virtual power grid” where they can validate and fine-tune controllers before anything is built. In an HIL setup, a real-time simulator runs a detailed microgrid model – complete with generators, solar panels, batteries, loads, and grid connection – to the actual controller hardware, which behaves as if it were connected to a real microgrid. This marriage of physical controller and simulated system creates a high-fidelity test bed for experimentation.

Crucially, HIL allows testing edge cases and failure scenarios with zero risk to real assets. Engineers can script events like sudden load spikes, generator trips, or communication failures and observe how the controller reacts – all without any danger to actual equipment or disruption to customers. Fault conditions that would be dangerous to trigger in the field (such as short-circuits or protection malfunctions) can be safely injected into the simulation. The controller’s responses – tripping breakers, redistributing loads, launching backup sequences – play out in real time against the simulated microgrid. If the control logic misbehaves or a setting is off, it becomes apparent immediately, yet no physical equipment is harmed and no outages occur.

This safe sandbox accelerates learning. Instead of waiting for a problem to emerge during a costly field trial, developers can iterate quickly through different control strategies in the lab. For example, if initial tests show unstable frequency in island mode, engineers can adjust control parameters on the fly and immediately observe the effect. Often a simple tuning—like refining a droop setting—smooths out the response. By final configuration, the control software has been “battle-tested” against realistic transients and worst-case events.

Beyond validating normal operation, HIL proves invaluable for uncovering hidden flaws. Integration issues like incorrect scaling of sensor inputs, timing mismatches between devices, or improper failover logic often only reveal themselves when real hardware meets a complex system model. HIL testing bridges that gap. It provides an early look at how all parts of the microgrid control scheme interact under pressure. Studies have shown that HIL platforms allow a wider range of tests at lower cost and risk, while reducing failed-test risks and shortening development time. In effect, the HIL environment becomes a proving ground where microgrid controllers earn their stripes long before they oversee real power flows.

“Hardware-in-the-loop (HIL) testing has emerged as an essential approach to manage this complexity and eliminate late-stage surprises.”

Lab validation ensures microgrid stability from day one

Investing time in lab validation sets microgrid projects up for success from the moment the switch is flipped. Many microgrids suffer commissioning delays because that is the first time the whole system is tested as one. HIL shifts much of this testing into the lab. After thorough HIL trials, on-site commissioning becomes more about verification than discovery, significantly compressing the schedule. In fact, the U.S. Department of Energy has set a goal to cut microgrid development and commissioning times by 20% by 2031 – a target achievable only with innovations like HIL.

Lab validation also boosts stakeholder confidence. When trials prove that a microgrid’s control system can gracefully handle faults and keep priority loads powered, operators and investors gain peace of mind. Detailed lab results can even streamline regulatory approvals by providing evidence of safe operation.

For developers, catching a design flaw in the lab is far cheaper than fixing it after construction. Without HIL, a latent control bug might only surface post-installation, forcing costly emergency patches. By integrating lab tests into development, teams move from a guess-and-fix approach to a first-time-right approach, delivering a microgrid that is already finely tuned rather than a prototype in need of tweaks.

“This safe sandbox accelerates learning.”

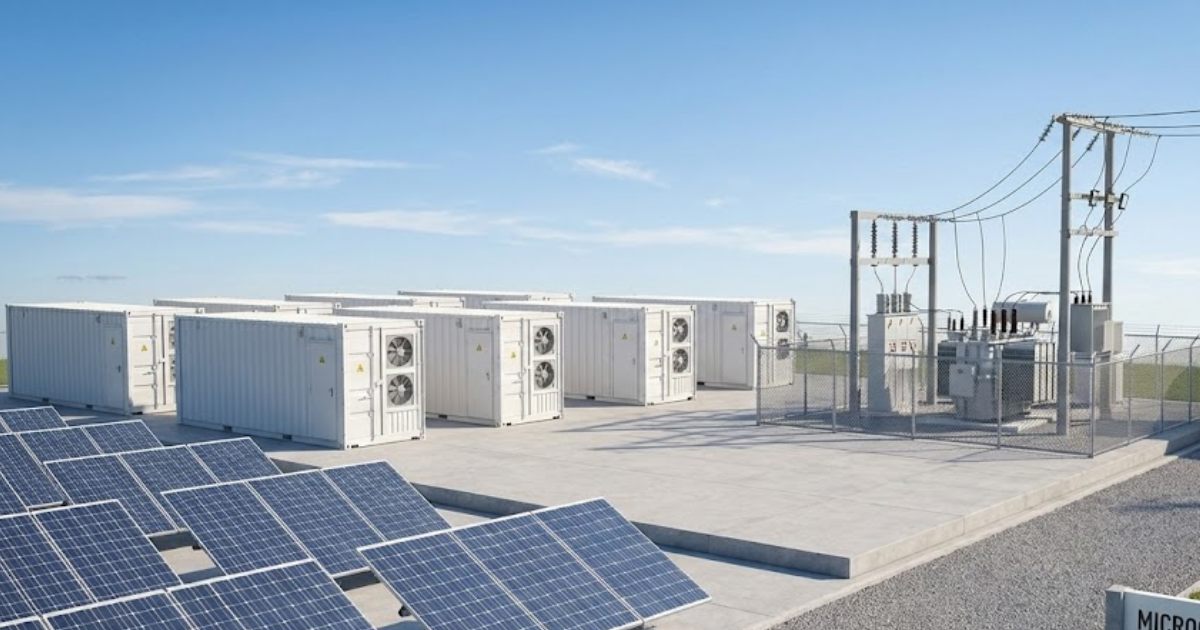

Industry standards endorse hardware-in-the-loop for microgrids

Notably, the Institute of Electrical and Electronics Engineers (IEEE) released standard IEEE 2030.8-2018 specifically to guide microgrid controller testing, and it recommends the use of hardware-in-the-loop (HIL) and power hardware-in-the-loop (PHIL) methods for development, validation, and integration of microgrid control and protection systems. This formal endorsement underscores that HIL is not just a nice-to-have tool, but rather a crucial step in verifying that a microgrid will perform as designed under actual operating conditions.

Industry adoption has followed suit. Utilities and grid operators have started to include HIL-based tests in microgrid project requirements, especially for critical applications. Many university and national lab microgrid testbeds now routinely leverage real-time simulators to refine control algorithms. The trend is clear: HIL simulation is becoming as fundamental to microgrid development as wind tunnel testing is to aerospace design.

Common Questions

Microgrid stakeholders often raise thoughtful questions about hardware-in-the-loop testing before embracing it. It is natural to consider how this technique fits into existing development workflows and if the benefits justify the effort. Clarifying these common questions helps illustrate why HIL testing is widely seen as essential in modern microgrid projects. For many teams, understanding HIL’s role can mark the difference between a risky trial-and-error approach and a confident, evidence-backed development process.

Why is hardware-in-the-loop testing important in microgrid development?

Hardware-in-the-loop testing is important because it confronts the complexity of integrating diverse microgrid components in a controlled setting. By verifying the controller against a live grid simulation, issues are caught early instead of during critical on-site moments. HIL provides a safety net, ensuring the microgrid will run reliably through everything from routine fluctuations to extreme events.

How does hardware-in-the-loop testing improve microgrid control systems?

Hardware-in-the-loop testing improves microgrid control systems by revealing how actual controllers perform under real operating conditions. It links the controller to a simulated grid in real time, so any instability, lag, or improper response becomes immediately apparent. Engineers can iteratively adjust control parameters and see the results on the spot, leading to a finely tuned control system ready for load changes and faults.

What benefits does hardware-in-the-loop testing provide for microgrid projects?

Hardware-in-the-loop testing provides several benefits for microgrid projects. It cuts down commissioning time by finding and fixing problems in the lab before installation, and it avoids dangerous on-site experiments by handling fault scenarios in simulation. This gives the team confidence that the microgrid will perform as intended, resulting in a smoother rollout with fewer surprises and a more reliable system.

Is hardware-in-the-loop testing becoming a standard practice for microgrid development?

Yes. Hardware-in-the-loop testing is becoming a standard practice as microgrid projects grow in scale and complexity. Many utilities, research labs, and microgrid developers already treat HIL as a routine part of their workflow. This widespread adoption is a result of proven successes: HIL-tested microgrids tend to face fewer integration issues and achieve stable operation faster.

Microgrid teams that embrace HIL testing shift their mindset from reactive problem-solving to proactive validation. In essence, tackling potential issues in a virtual setting allows microgrid projects to avoid costly late-stage fixes and gain confidence in their solutions from the ground up. The growing popularity of HIL is a testament to its effectiveness in delivering reliable, high-performance microgrids.
