OP4610XG

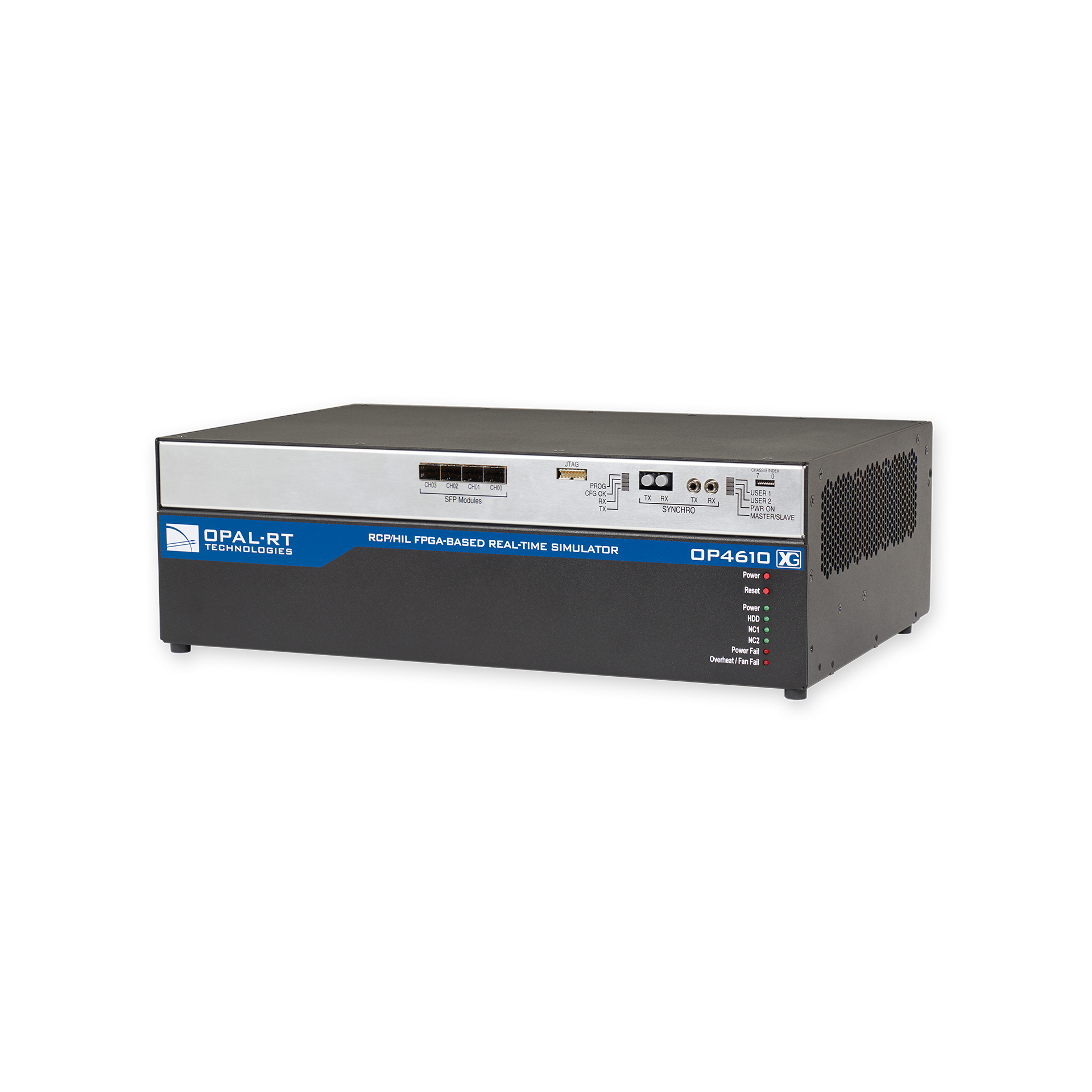

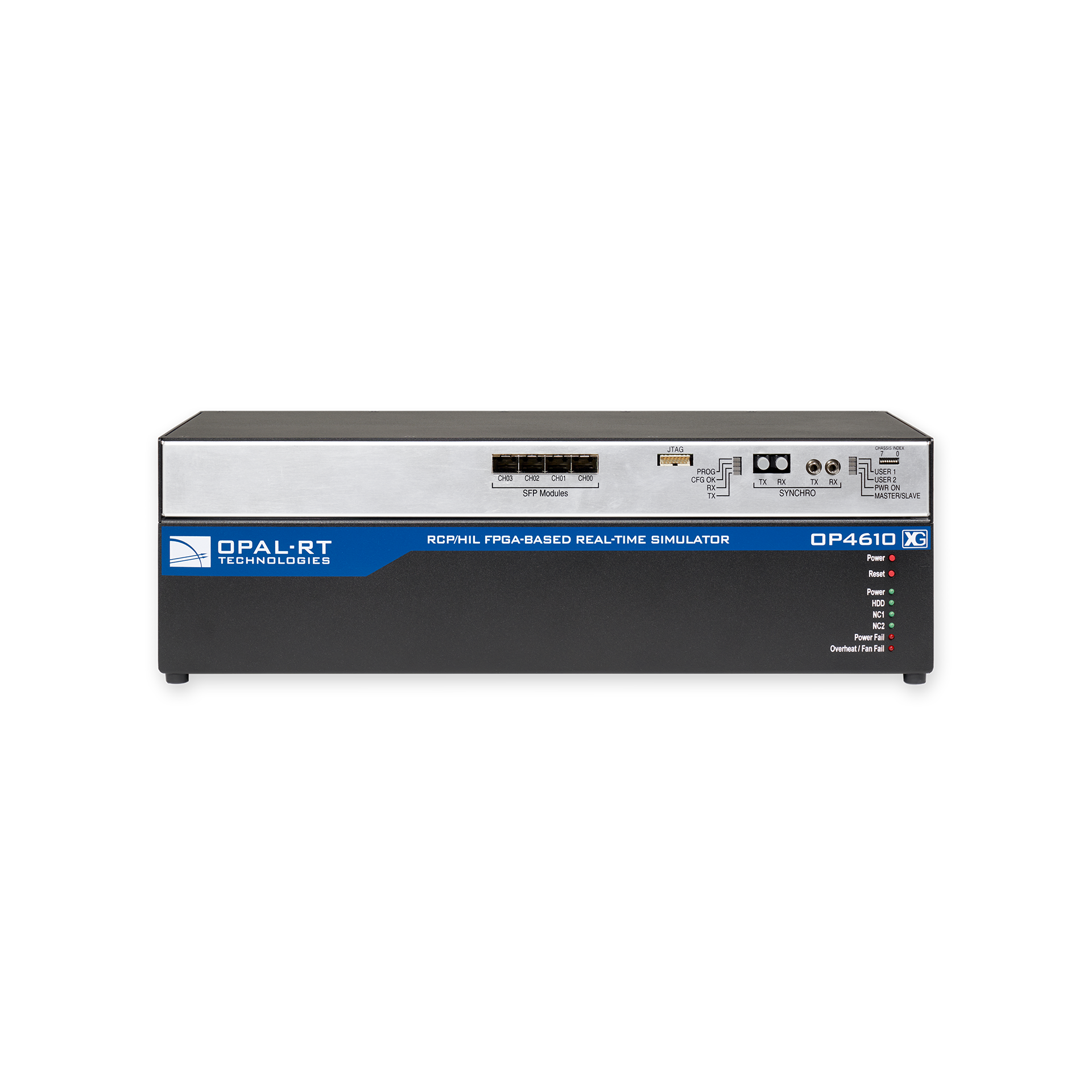

The OP4610XG is our mid-range real-time simulator in the XG series. It combines cutting-edge AMD Ryzen™ processing cores and a powerful AMD Kintex™-7 410T FPGA, all in a compact desktop form factor. With support for a wide range of communication protocols, the OP4610XG is equipped to handle your most demanding hardware-in-the-loop (HIL) and rapid control prototyping (RCP) applications.
Specifications overview
| Processor | CPU | AMD Ryzen™ 6 cores, 3.8 GHz |
| FPGA | AMD Kintex™-7 410T | |
| I/O modules | Maximum 4 I/O modules per unit | Your choice of I/O modules from one of the standard configurations offered. |
| Connectivity | Computer connectivity | 1 VGA port 1 HDMI port 2 USB 3.2 gen2 ports 1 serial port 4 Gigabit Ethernet ports (2x 10 GbE, 2x 1 GbE) 1 IPMP LAN port |
| RS422 - Digital input/output (default expansion module) OR Optional fiber optic (alternative expansion module) | 2 channels for encoders or 6 PWM in / 6 PWM out or other applications requiring reading or generation of fast differential logic signals, 5 V OR 6TX/6RX 50 Mbps channels for digital I/O, and compatible with the ORION protocol developed by OPAL-RT |
|
| High-speed optical interface | 4 SFP socket, 1 to 5 Gbits/s optical fiber | |
| Optional | 2 PCIe free slots available for optional I/O communication cards. See the full list of communication protocols. | |
| Rack unit and mount type | 3U, tabletop or rack mount (mounting brackets and hardware included for standard 19 in. rack) |
THE XG SERIES
Discover our unmatched performance
We’re redefining real-time simulation with the XG series. Powered by OPAL-RT Linux 3, Intel’s or AMD’s latest technologies, and our unique toolboxes, this series delivers unparalleled performance for simulating, testing, integrating, and validating cutting-edge products and solutions.
01
Performance
Achieve up to 1.8x faster simulation speeds. The XG series handles larger and more complex power systems, power electronics, and microgrid models using fewer cores.
02
Reliability
Ensure maximum reliability and uptime with server-grade motherboards and CPUs.
03
Accuracy
Simulate models with reduced time steps for greater precision. The XG series offers configurations with 4 to 44 cores per simulator.
04
Powered by Intel® or AMD
The XG series leverages decades of innovation to deliver world-class technology and performance.
FEATURES
Maximum flexibility and precision
Modularity
Connect your devices and systems without limitation. Onboard expansion slots accommodate up to four analog and digital I/O modules, with signal conditioning to support a combination of up to 64 fast analog or 128 digital channels. See compatible I/O modules and accessories.
Scalability
The OP4610XG supports up to 4 SFP multi-mode fiber-optic modules and LVDS or fiber-optic synchronization for high-speed communication and synchronization between devices and expansion units. Easily expand the simulation and I/O capacity using other OPAL-RT FPGA and I/O expansion units. See the list of communication protocols.
HARDWARE DETAILS

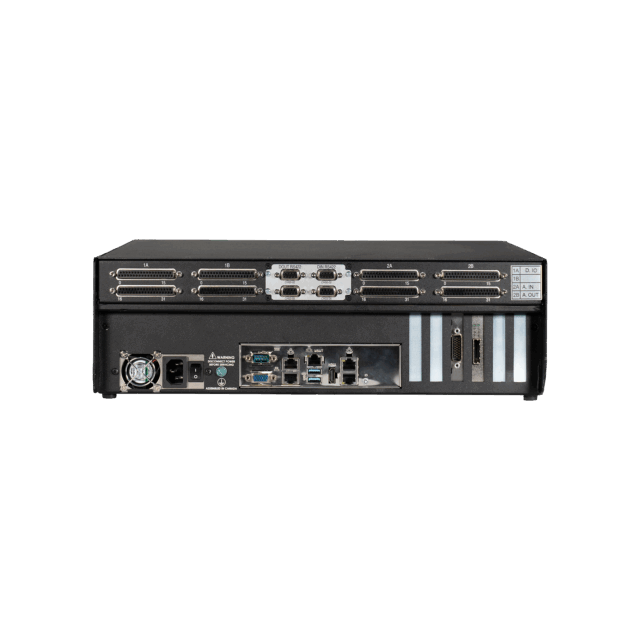

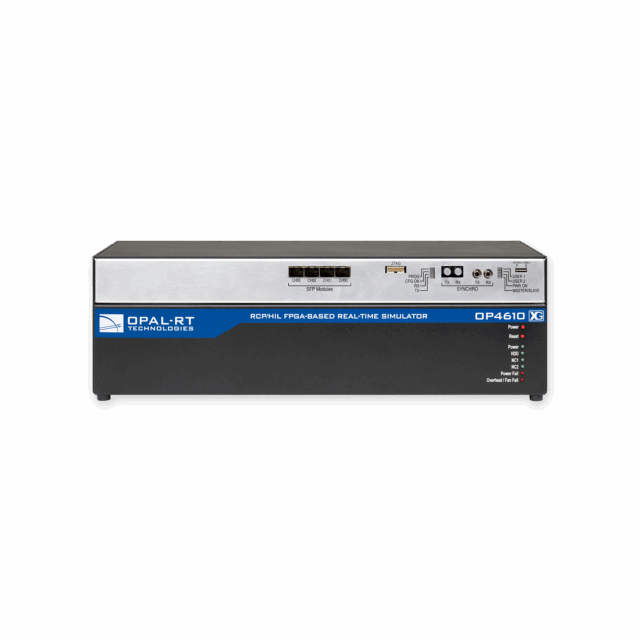

Connections and interface
SIMULATOR ARCHITECTURE
Compact design, powerful simulation

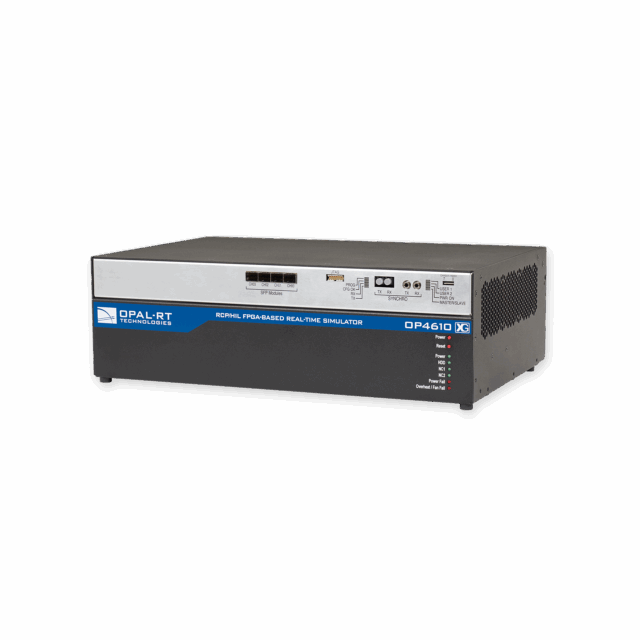

The compact OP4610XG uses an AMD processor to enable real-time computing of very large models, as well as an AMD Kintex™-7 410T FPGA to include ultra-fast loop time for fast-switching frequency real-time simulation. All this computing power is available in a single rack-mounted chassis and is compact enough to be used easily on a desktop. Benefit from parallel processing to perform high-fidelity real-time electromagnetic transient (EMT) simulation of large and complex systems, as well as an FPGA for high-frequency power electronics applications.
SOFTWARE
Work with our compatible software platforms
Discover powerful solutions for HIL and RCP testing across power systems, power electronics, aerospace, and automotive sectors. With our software platforms, you can manage complex I/O configurations, communications protocols, and specialized applications—all designed to tackle time-to-market pressures and rising system complexity.
EMT Simulation and HIL Testing
HYPERSIM
High-fidelity platform for EMT simulation, SIL and HIL testing, ideal for validating control, protection, grid integration and large-scale stability across all stages of power system development.
Multi-Domain, Simulink®-based HIL
RT-LAB
Fully integrated with MATLAB/Simulink® and best combined with our various toolboxes to bring multi-domain Simscape™ Electrical™ and SimPowerSystems models to real time for fast control development.
