OP4610XG2

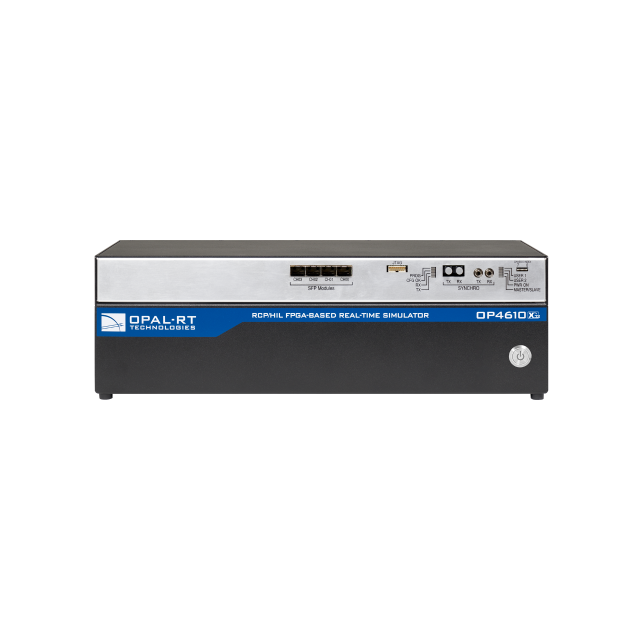

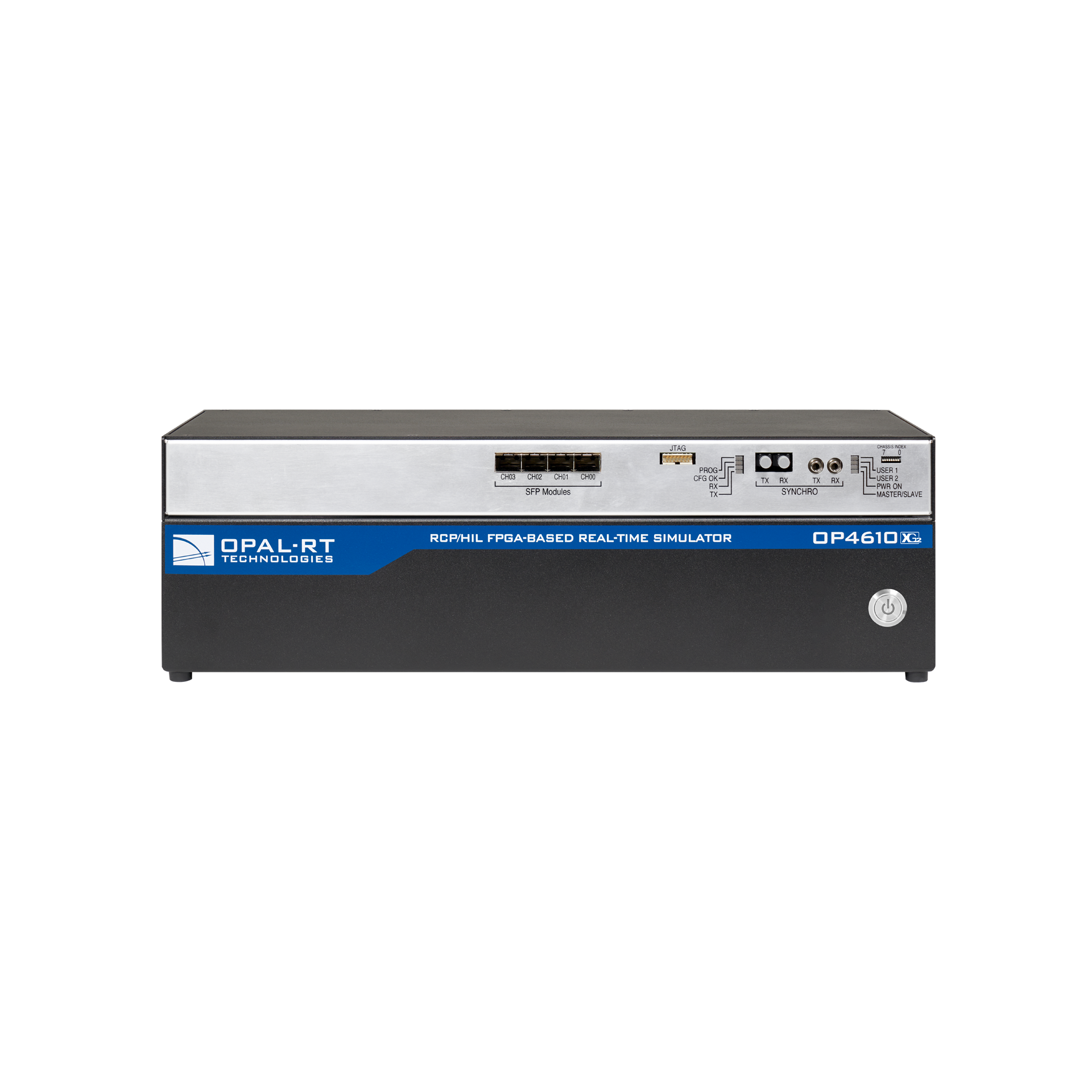

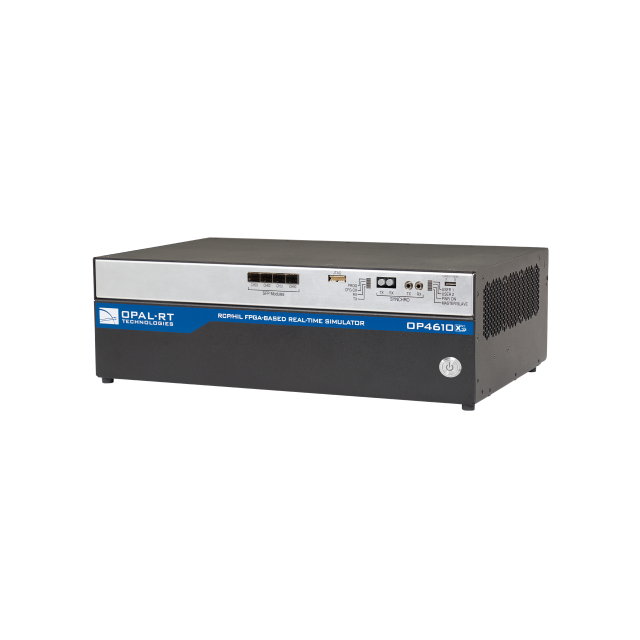

The OP4610XG2 is a mid-range real-time simulator from OPAL-RT latest simulator offering from the XG2 series. It combines an Intel® Core™ i5 6-core processor and a powerful AMD Kintex™-7 410T FPGA in a medium-size desktop form factor. With support for a wide range of communication protocols, the OP4610XG2 is equipped to handle your most demanding hardware-in-the-loop (HIL) and rapid control prototyping (RCP) applications at a contained price.
Specifications overview
| Processor | CPU | Intel® Core™ i5 6-core @ 4.1 GHz |
| FPGA | AMD Kintex™-7 410T | |
| Memory and storage | 16 GB RAM, 1 TB NVMe SSD drive | |
| I/O modules | Maximum 4 I/O modules per unit | Your choice of I/O modules from one of the standard configurations offered. (see your representative) |
| Connectivity | Computer connectivity | 1x VGA video output port 1x Serial port 4x USB 3.2 Gen2 4x 10/100/1000 Mbps Ethernet ports, including one IPMI port |
| RS422 - Digital input/output (default expansion module) OR Optional fiber optic (alternative expansion module) | 2 channels for encoders or 6 PWM in / 6 PWM out or other applications requiring reading or generation of fast differential logic signals, 5 V OR 6TX/6RX 50 Mbps channels for digital I/O, and compatible with the ORION protocol developed by OPAL-RT |
|
| High-speed optical interface | 4 SFP socket, 1 to 5 Gbits/s optical fiber | |
| Optional | 2 PCIe free slots for optional I/O communication cards. See the full list of communication protocols. | |
| Rack unit and mount type | 3U, tabletop or rack mount (mounting brackets and hardware included for standard 19 in. rack) |
FEATURES
Flexibility and precision
Modularity
Connect your devices and systems without limitation. Onboard expansion slots accommodate up to four analog and digital I/O modules, with signal conditioning to support a combination of up to 64 fast analog or 128 digital channels. See compatible I/O modules and accessories.
Scalability
The OP4610XG2 supports up to 4 SFP multi-mode fiber-optic modules and LVDS or fiber-optic synchronization for high-speed communication and synchronization between devices and expansion units. Easily expand the simulation and I/O capacity using other OPAL-RT FPGA and I/O expansion units. See the list of communication protocols.
HARDWARE DETAILS

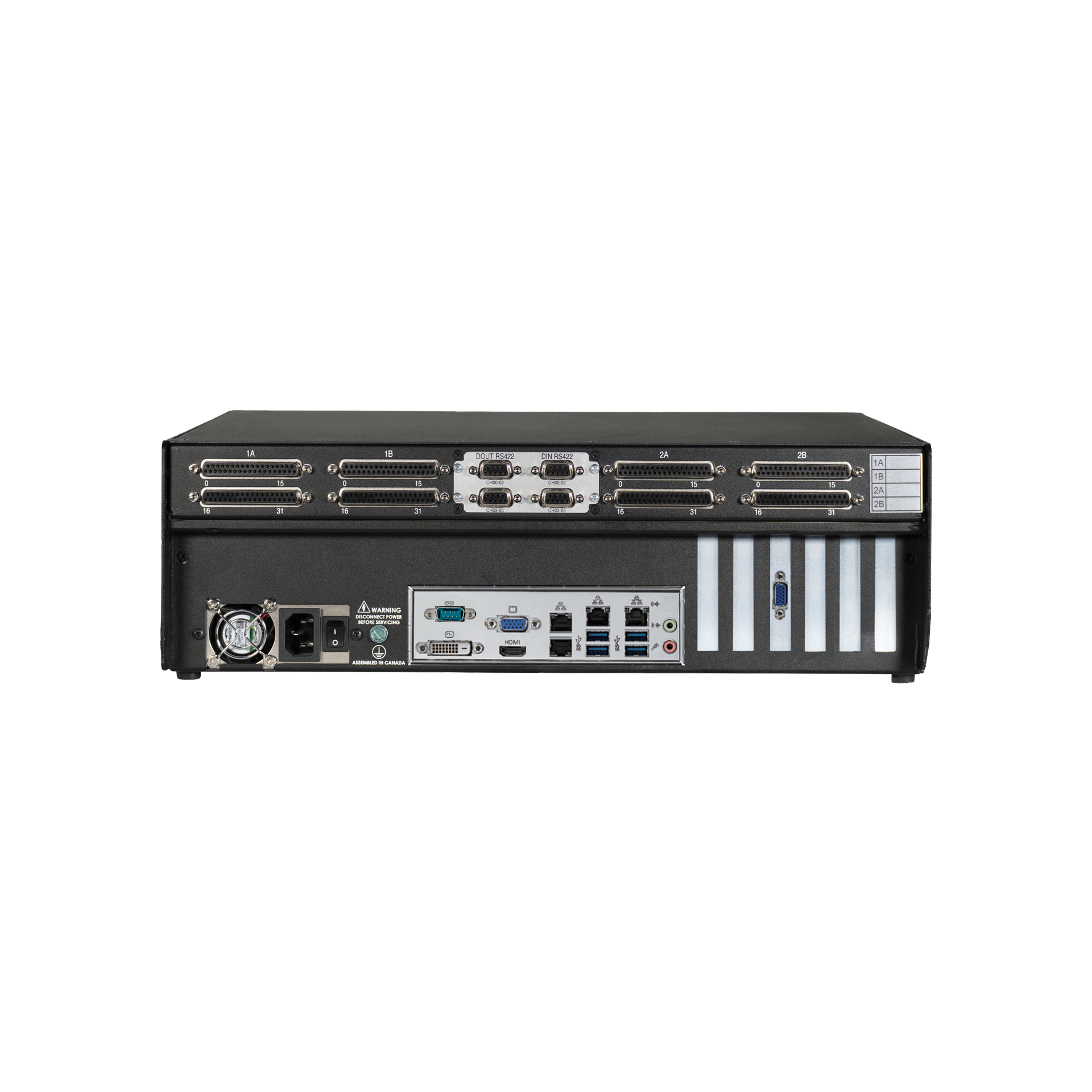

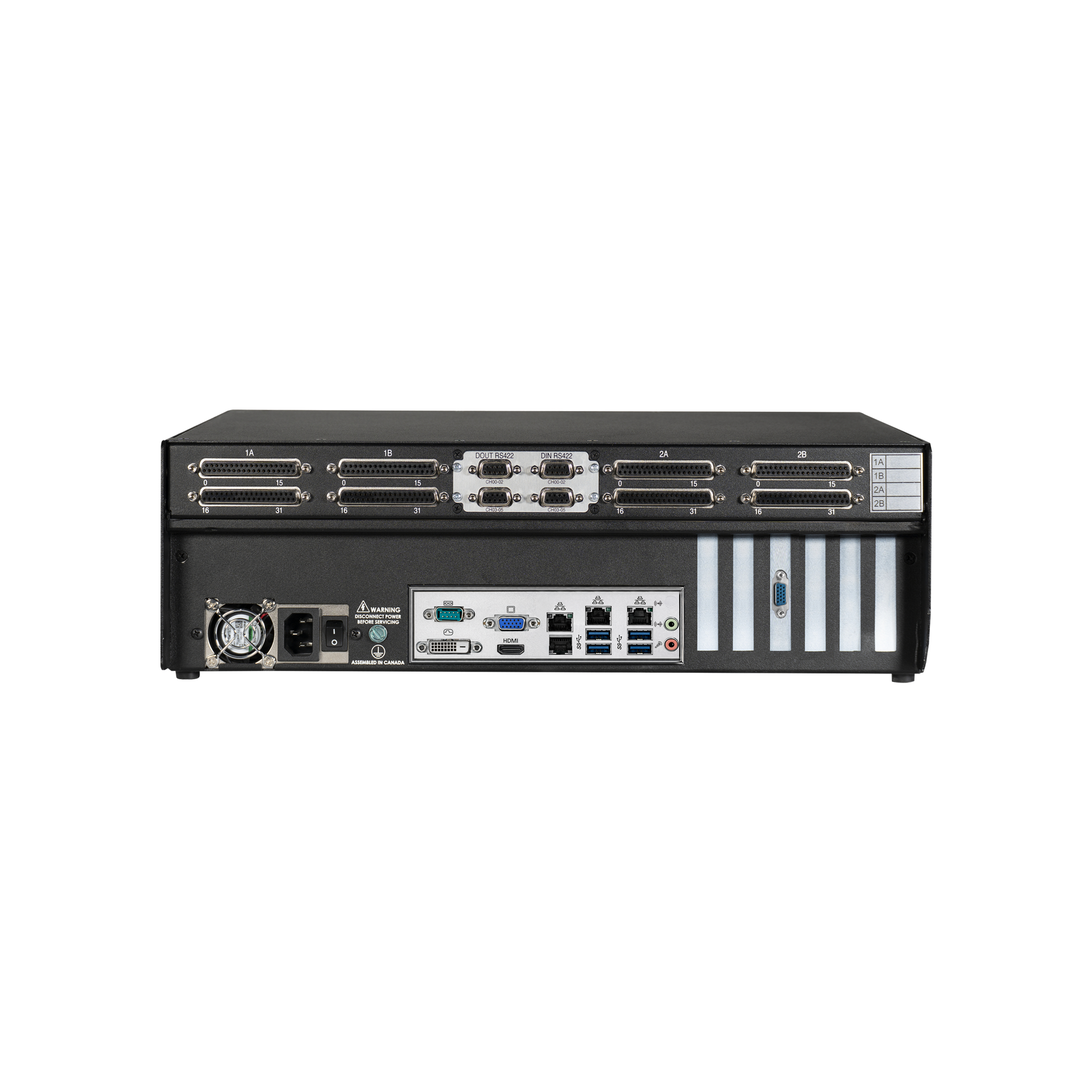

Connections and interface
SIMULATOR ARCHITECTURE
Compact design, powerful simulation
The OP4610XG2’s commercial off-the-shelf FPGA and CPU architecture deliver real-time simulation with low time steps. A high-speed PCI Express link enables seamless co-simulation between FPGA and CPU, allowing high-speed FPGA-based models—such as power converters and electric drives—to integrate with slower electrical and mechanical systems on the CPU for more detailed simulations. With low nanosecond timing resolution, the FPGA supports advanced RCP testing of high-speed PWM-based controllers on actual hardware. All this computing power is packed into a single, rack-mounted chassis.
SOFTWARE
Work with our compatible software platforms
Discover powerful solutions for HIL and RCP testing across power systems, power electronics, aerospace, and automotive sectors. With our software platforms, you can manage complex I/O configurations, communications protocols, and specialized applications—all designed to tackle time-to-market pressures and rising system complexity.
EMT Simulation and HIL Testing
HYPERSIM
High-fidelity platform for EMT simulation, SIL and HIL testing, ideal for validating control, protection, grid integration and large-scale stability across all stages of power system development.
Multi-Domain, Simulink®-based HIL
RT-LAB
Fully integrated with MATLAB/Simulink® and best combined with our various toolboxes to bring multi-domain Simscape™ Electrical™ and SimPowerSystems models to real time for fast control development.
