OP5025XG2

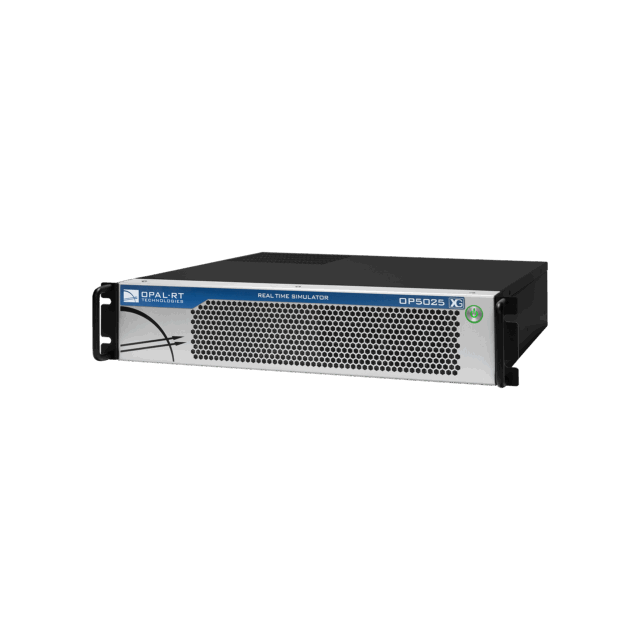

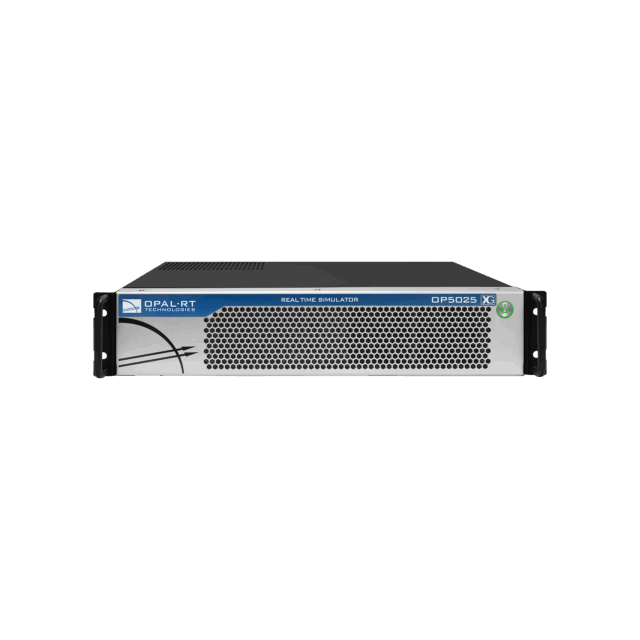

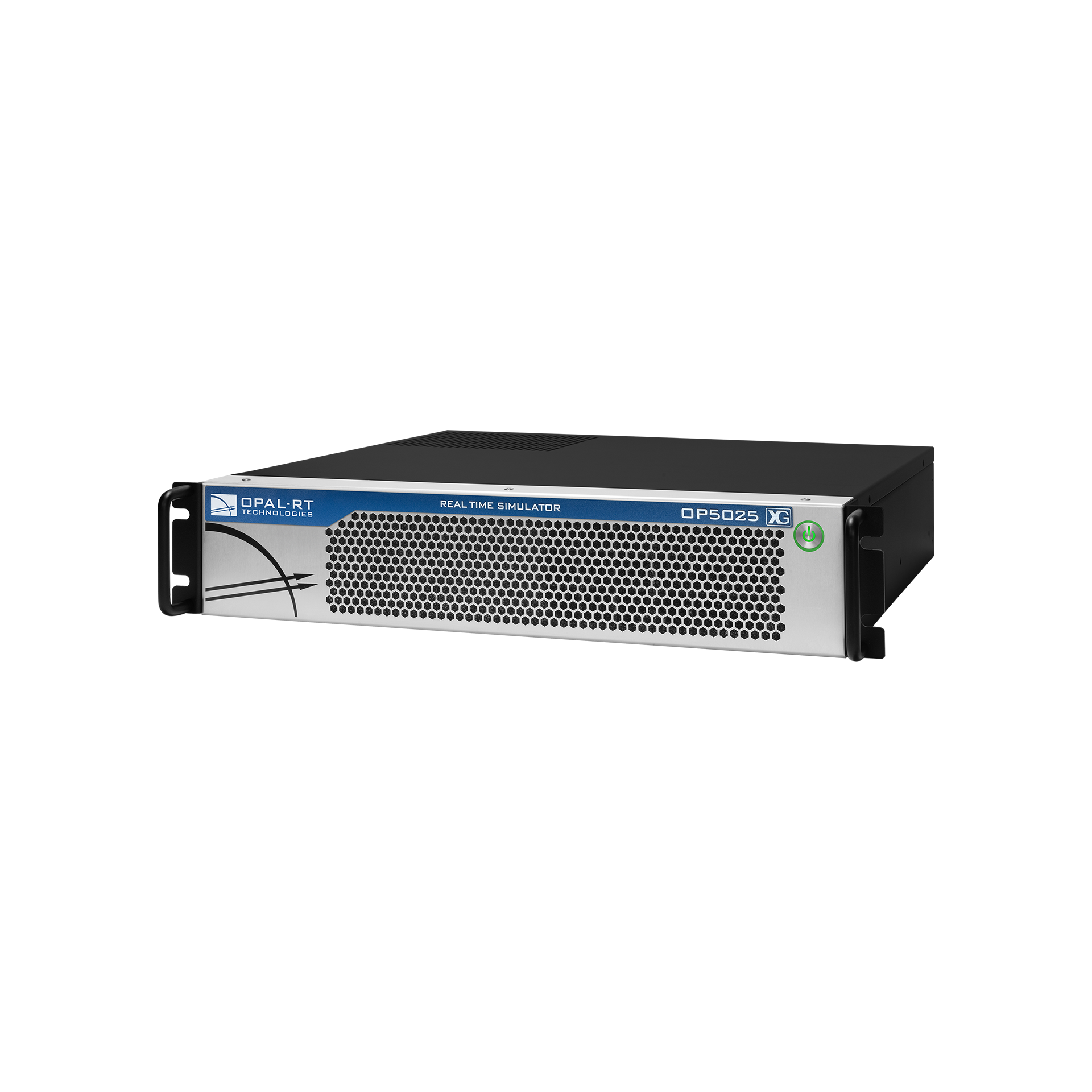

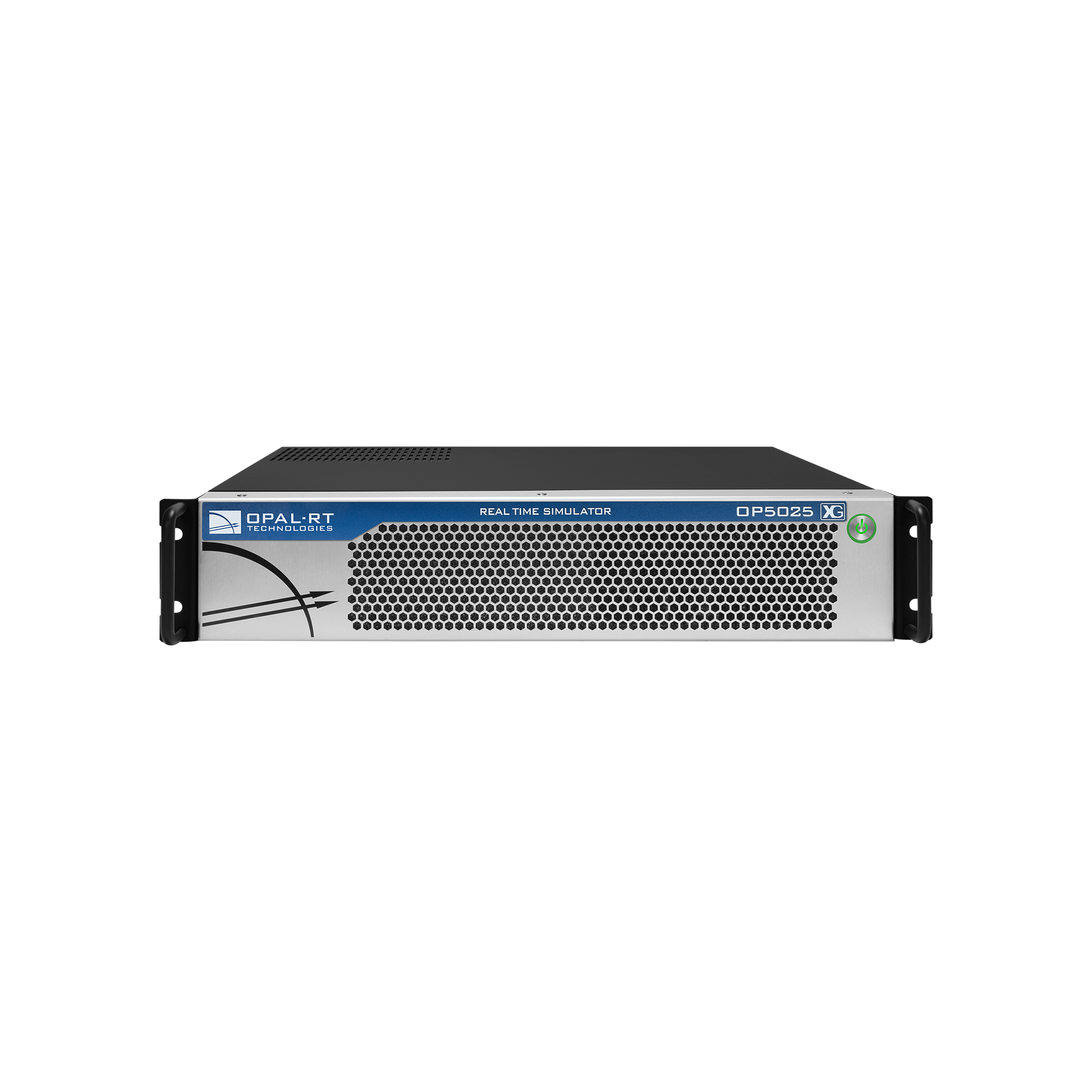

Based on an Intel® Core™ i5 processor, the OP5025XG2 simulator is ideal for configurations requiring FPGA Processor and I/O Expansion Units like the OP4800-IO series.
The OP5025XG2 is the entry-level model of the OP5000XG/XG2 Series CPU-based simulators. This versatile series of real-time simulators offers a wide range of cores to suit your model’s size and complexity while being respectful of your budget. Configurable for each customer, our real-time systems can be made to simulate, supervise, and communicate with each other as co-simulation systems. See the comparison chart below.

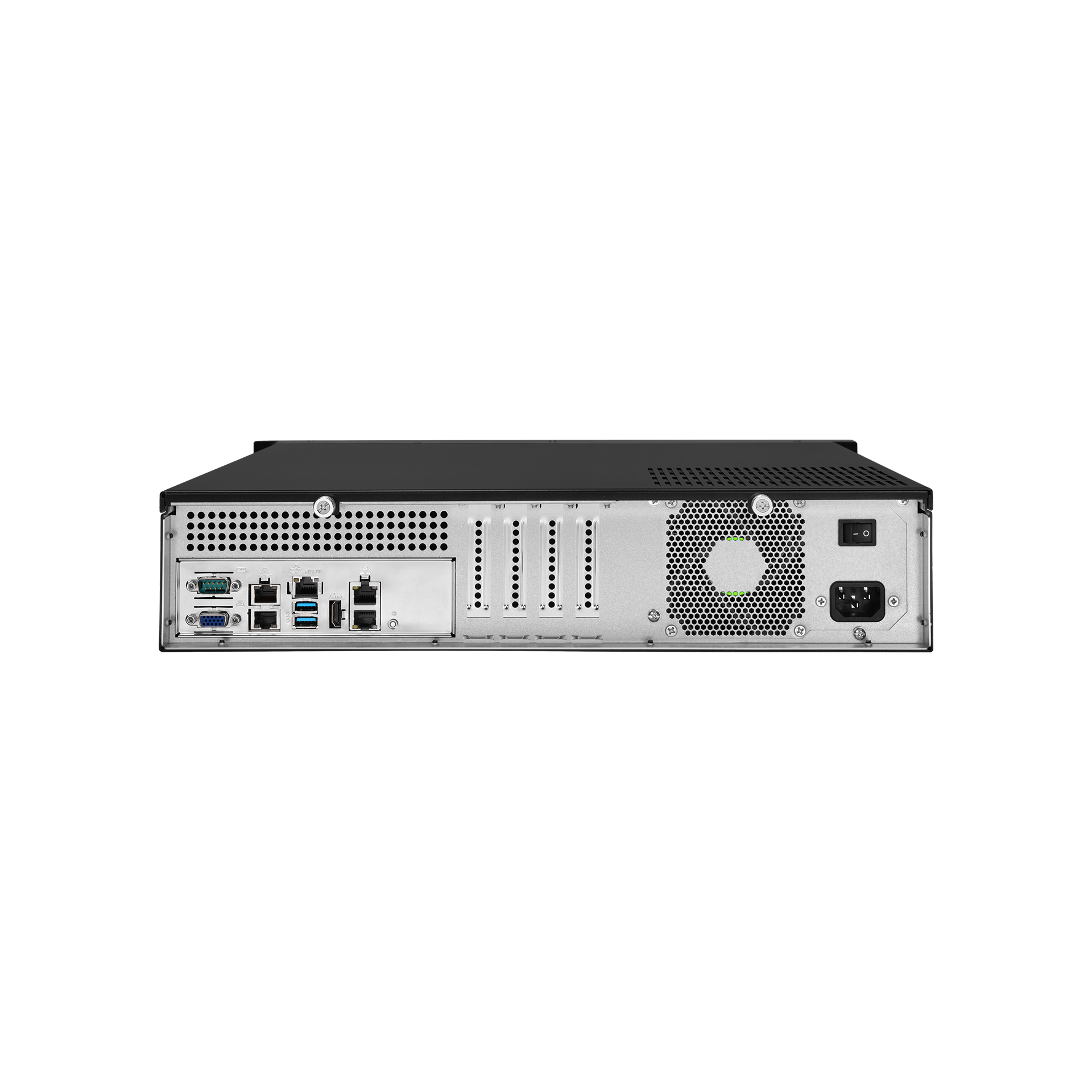

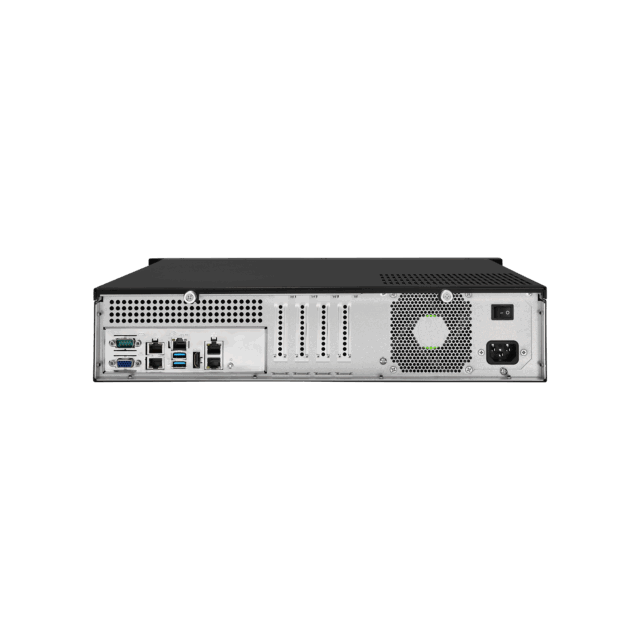

Specifications overview
| Processor | CPU | Intel® Core™ i5, 6 cores, 4.1 GHz |
| Connectivity | Computer connectivity | Video output: VGA, DVI-D, HDMI 2.0 4x USB 3.2 Gen2 4x 10/100/1000 Mbps Ethernet port including one IPMI port |
| Optional | 3 PCIe free slots available for optional I/O communication cards. 1 PCIe slot can be used to connect an FGPA Processor and I/O expansion units of the OP4800-IO Series. The remaining 2 PCIe slots are free for third-party low-profile communication card. See the full list of communication protocols. |
|
| Rack unit and mount type | 2U, tabletop or rack mount (mounting brackets and hardware included for standard 19 in. rack) |
EXPANSION

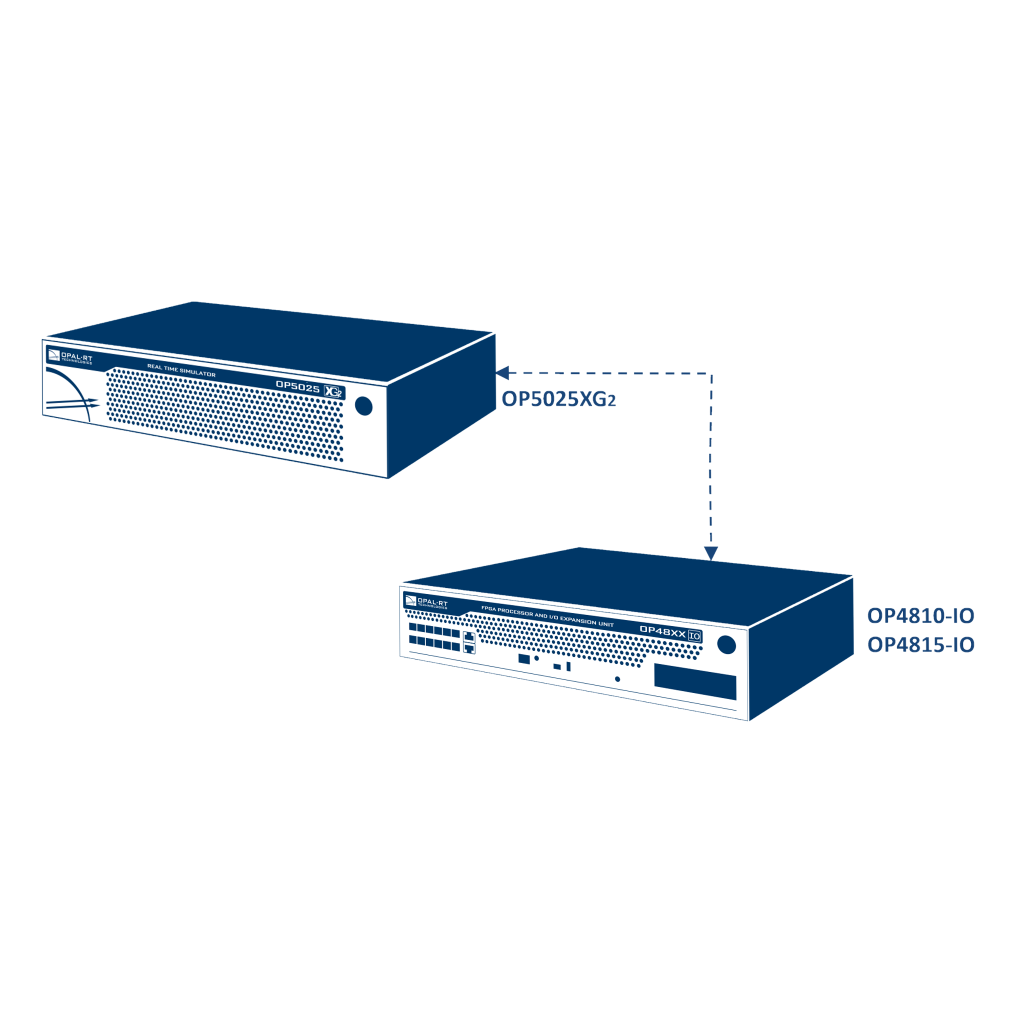

Build your system with our simulators and expansion units
The OP5020XG2 simulator includes one PCI express expansion slots to implement high-speed interfacing with OPAL-RT FPGA processor and I/O expansion units for distributed hardware-in-the-loop (HIL) simulations. Our simulators also support many other third-party communication cards, time synchronization, and more.
COMPARISON
The OP5000XG series
Explore the specifications of each real-time simulator in the flexible OP5000XG series to find the perfect fit for your project’s needs.
-
Processor
-
LAN ports
-
IPMI LAN
-
USB
-
Video out
-
Memory
-
Storage
-
Rack unit
-
Free PCIe slots available
-
Dimensions (width, depth, height)
-
Weight
OP5020XG2
Powerful computing
-
Intel® Core™ i3, 4 cores, 3.5 GHz
-
4x 10/100/1000 Mbps Ethernet port
-
4x USB 3.2 Gen2
-
VGA, DVI-D, HDMI 2.0
-
16 GB
-
1 TB SSD
-
2U
-
Up to 3 slots available for low-profile PCIe cards
-
42.8 x 43.0 x 9.0 cm / 16.84 x 16.94 x 3.5 in.
-
7.7 kg / 17 lb
OP5025XG2
Very powerful computing
-
Intel® Core™ i5, 6 cores, 4.1 GHz
-
4x 10/100/1000 Mbps Ethernet port
-
4x USB 3.2 Gen2
-
VGA, DVI-D, HDMI 2.0
-
16 GB
-
1 TB SSD
-
2U
-
Up to 3 slots available for low-profile PCIe cards
-
42.8 x 43.0 x 9.0 cm / 16.84 x 16.94 x 3.5 in.
-
7.7 kg / 17 lb
OP5033XG
Brute force computing
-
4 Cores – Intel® Xeon® 3.8 GHz, 8 Cores – Intel® Xeon® 3.8 GHz, 16 Cores – Intel® Xeon® 3.3 GHz, 44 Cores: – Intel® Xeon® 2.10 GHz
-
2x 1 Gbps Ethernet
-
2x USB 2.0 type A, 2x USB 3.0 type A
-
VGA
-
32 GB
-
500 GB SSD
-
4U
-
Up to 6 slots available for full-length PCIe cards
-
43.0 x 46.8 x 17.6 cm / 16.93 x 18.43 x 6.93 in.
-
11 kg / 24.3 lb
SOFTWARE
Work with our compatible software platforms
Discover powerful solutions for hardware-in-the-loop (HIL) and rapid control prototyping (RCP) testing across power systems, power electronics, aerospace, and automotive sectors. With our software platforms, you can manage complex I/O configurations, communications protocols, and specialized applications—all designed to tackle time-to-market pressures and rising system complexity.
EMT Simulation and HIL Testing
HYPERSIM
High-fidelity platform for EMT simulation, SIL and HIL testing, ideal for validating control, protection, grid integration and large-scale stability across all stages of power system development.
Multi-Domain, Simulink®-based HIL
RT-LAB
Fully integrated with MATLAB/Simulink® and best combined with our various toolboxes to bring multi-domain Simscape™ Electrical™ and SimPowerSystems models to real time for fast control development.
FAQ
Find the answers to your questions
What are the main advantages of the OP5025XG2 compared to the OP5020XG2?
The OP5025XG2 is equipped with an Intel® Core™ i5 processor featuring 6 cores at 4.1 GHz, offering more computational power than the OP5020XG2. This makes it better suited for larger or more complex real-time models while still maintaining an entry-level cost profile.
Can the OP5025XG2 integrate with FPGA and I/O expansion units?
Yes. The OP5025XG2 is designed to work seamlessly with FPGA processors and I/O expansion units, such as the OP4800-IO series with AMD FPGA technology. This enables engineers to enhance simulation fidelity and expand connectivity for demanding test setups.
How does the OP5025XG2 support co-simulation environments?
The OP5025XG2 can be configured to simulate, supervise, and communicate with other OPAL-RT real-time systems. This makes it a powerful tool for co-simulation, where multiple subsystems or domains must be modeled and tested together.
Who should consider the OP5025XG2 for their real-time testing needs?
The OP5025XG2 is ideal for engineers and researchers who need a balance of performance and cost efficiency. It serves power systems, power electronics, automotive, aerospace, and academic users who require real-time simulation for HIL validation, control system design, and co-simulation projects.
