OP8217 DB44 to 32 or 64 Mini Banana Plug Monitoring Panel User Manual

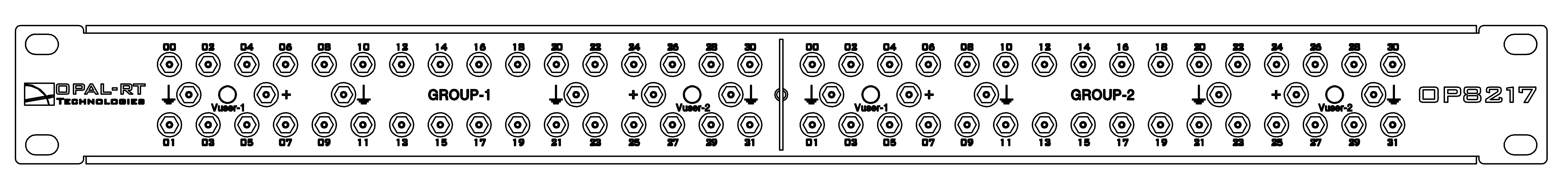

The OP8217 is a 32 or 64 signal interface panel with 2 mm diameter mini-banana plugs. The back-side connector is a DB44 connector, which allows interconnection with OPAL-RT SLSC boards and products. It does not apply any conditioning to the signals. The two DB44 connectors in the back of the panel map to two signal groups, Group-1 or Group-2.
