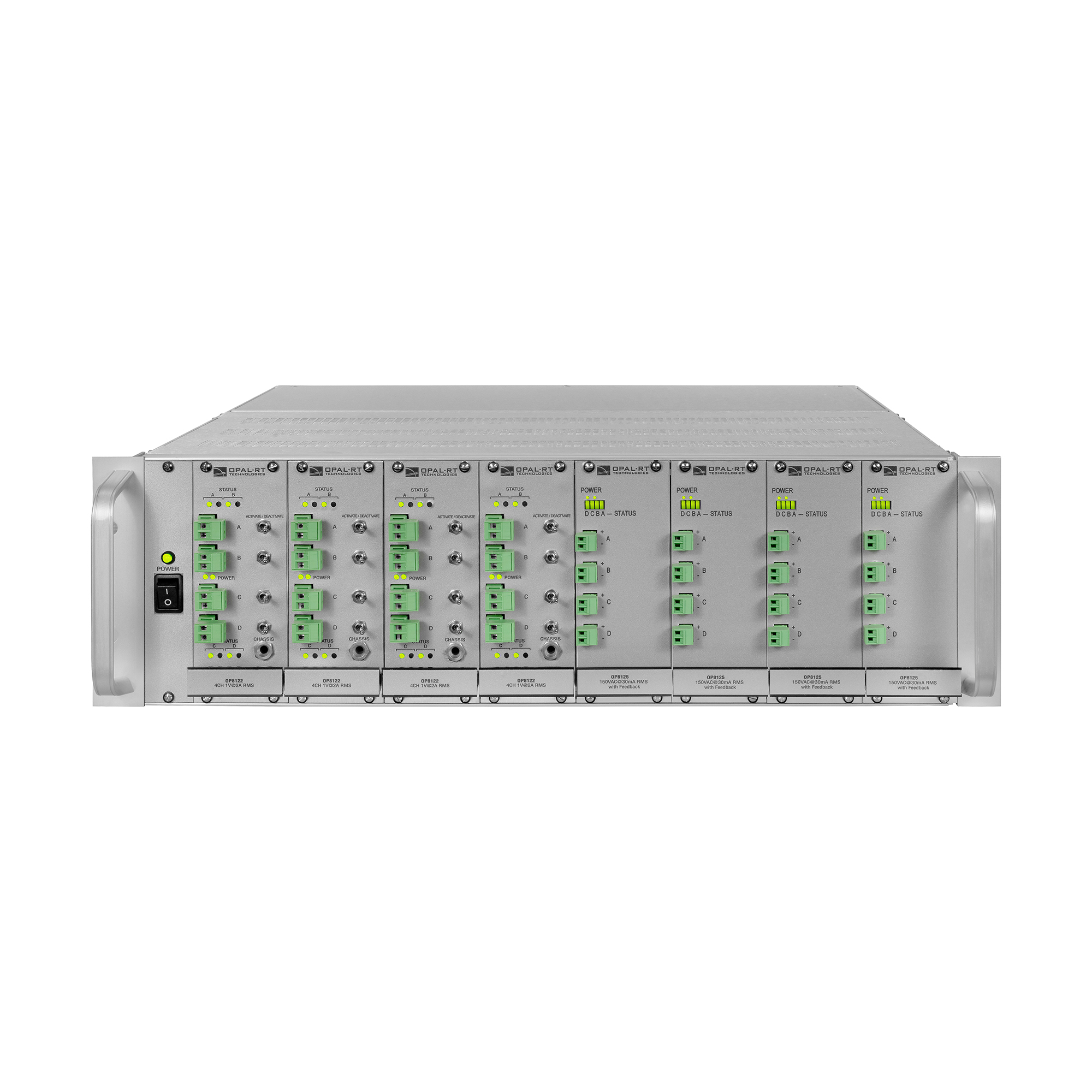

OP8120 Modular Signal Conditioning Chassis User Manual

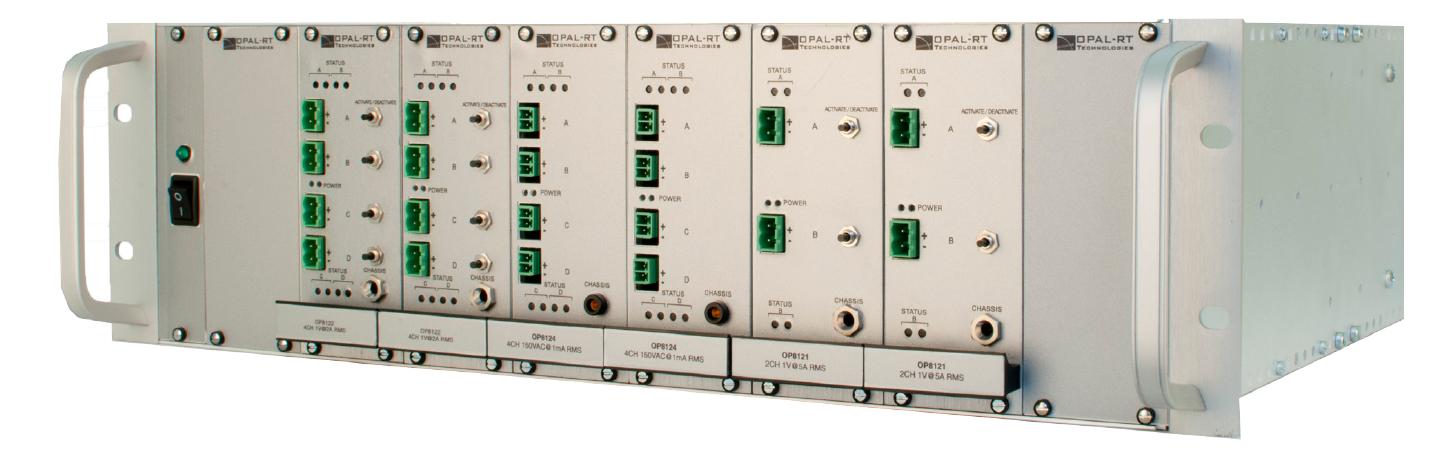

The OP8120 Modular System Conditioning Chassis (MSCC) is a high-power pre- and post-conditioning chassis (amplifier) for OPAL-RT standard analog and digital I/O boards. It is designed to be used with simulators to make high-power conditioning and cabling easier to maintain. Each chassis can accommodate up to 8 current source or voltage amplifier modules.
