Energy Conversion Controls
Evolving, innovative energy conversion systems are indispensable in the meeting of future energy needs. With greater control and communication complexity comes more sophisticated designs and rigorous testing. As a result, high-fidelity energy conversion simulation is essential to model these systems accurately. Most importantly, energy conversion controls not only require testing and certification on a power electronics level, but must also be evaluated in a complex ecosystem involving a complete power grid that includes chemical or mechanical dynamics.
We provide powerful, real-time simulation solutions for electrical conversion, enabling you to more quickly conduct precise and exhaustive testing on all controls, including advanced energy control testing for real-world reliability, with greater reliance and minimal investment.
They trust us
Demo
Low voltage ride through (LVDT) with HIL

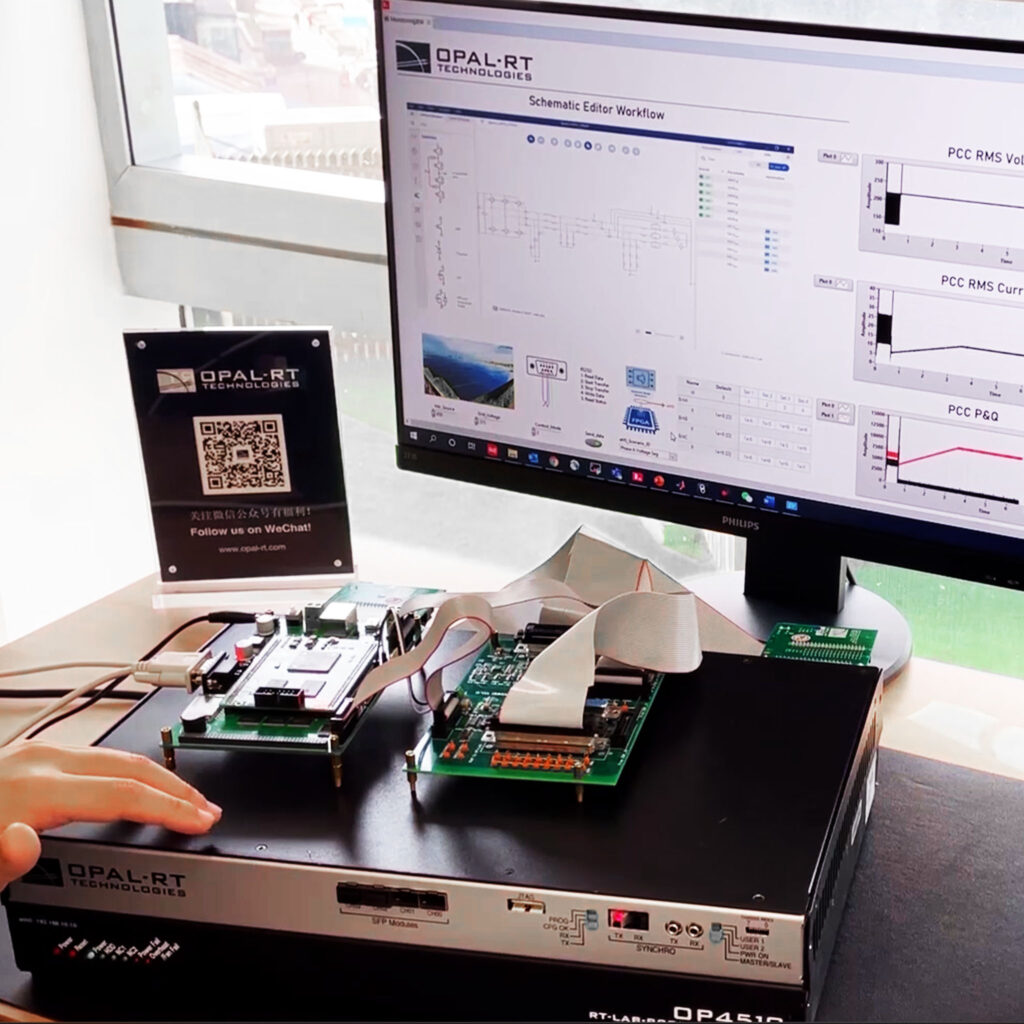

This Hardware-in-the-Loop demo consists of an inverter controller for grid-connected solar energies and an OP4510 real-time simulator. The controller, developed by the GREENLAB of Hefei University of Technology, is capable of low-voltage ride through–while the Electric Hardware Solver (eHS) simulates the entire grid-connected solar-energy inverter in real-time on the FPGA at a time step of less than 250 nanoseconds. The design of circuit schematic is done using our Schematic Editor.
Advantages
Why choose OPAL-RT?
Working extensively with the industry and top research laboratories in the world, our expertise in HIL systems offers many benefits in energy conversion control applications.
01
The most powerful FPGA solver
eHS, our real-time power electronics simulation solver, provides the most intuitive FPGA real-time simulation in the industry.
02
Complete ecosystem for real-time simulation
We combine the company’s finest power systems and power electronics solvers into one simulation solution, capable of not only testing conversion controls, but also studying the complete ecosystem.
03
Various set of I/Os and communication protocols
We support a comprehensive list of communication protocols and specific I/Os specifically designed for electric drive control, including encoders and decoders, sophisticated PWM, and triggered analogs.
04
Trusted by industry leaders, driven by innovation
With over 25 years of experience, we deliver real-time simulation solutions that push the boundaries of technology and help you build the future with confidence.
Webinars
Validation of industrial power electronics applications with HIL
Watch renowned experts share their vision on the future of the power electronics industry and our role in driving innovation.
Products
Essentials for testing power electronics applications
Discover the tools that professionals depend on for accurate and precise testing. Ensure optimal performance with our products.
Multi-Domain, Simulink®-based HIL
RT-LAB
Fully integrated with MATLAB/Simulink® and best combined with our various toolboxes to bring multi-domain Simscape™ Electrical™ and SimPowerSystems models to real time for fast control development.
Ultra-Fast EMT Simulation and HIL Testing
eHS
Advanced FPGA technology for high-fidelity, low-latency, power systems and power electronics simulation, enabling HIL testing across energy, automotive, aerospace, and industrial applications.
Compact mid-range simulator

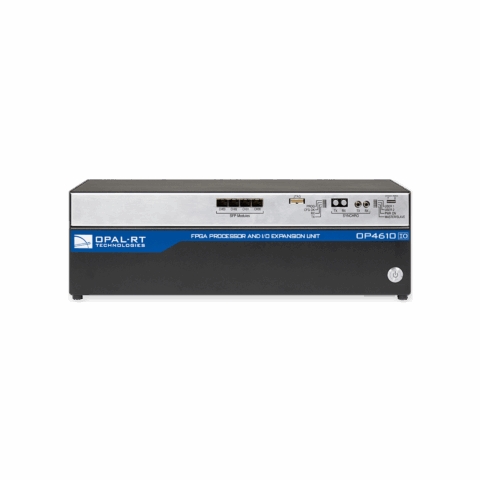

OP4610XG
Compact yet powerful mid-range simulator offering an all-in-one solution that combines the latest 6-core AMD Ryzen™ 5 CPU with the power of an AMD Kintex™-7 410T FPGA.
FAQ
Find the answers to your questions
What communication protocols do you support?
Consult our comprehensive list of supported protocols here: Communication Protocols.
What is energy conversion simulation, and why is it important for control systems?
Energy conversion simulation allows engineers to model and test the behavior of energy systems in real time, including interactions between electrical, mechanical, and chemical components. It ensures that control systems can be validated under various conditions before deployment, improving accuracy and reducing development time.
How does OPAL-RT support energy control testing for complex systems?
We provide real-time simulation platforms and tools specifically designed for energy control testing. Our solutions allow users to evaluate controller performance within a complete power ecosystem, including grid-connected scenarios, using FPGA and CPU-based simulators.
Can energy conversion simulation be used for both hardware and software validation?
Yes. Our solutions support both software-in-the-loop (SIL) and hardware-in-the-loop (HIL) methods, enabling comprehensive energy conversion simulation. This approach ensures that both software logic and physical hardware components are rigorously tested under real-world conditions.
What makes OPAL-RT’s approach to energy control testing different from others?
We offer an open, scalable platform that combines powerful FPGA-based solvers and an intuitive development environment. This allows for highly accurate and fast energy control testing, even in complex systems involving renewables, power electronics, and grid dynamics.
What industries benefit most from energy conversion simulation and control testing?
Industries such as automotive, aerospace, renewable energy, and industrial automation rely on energy conversion simulation and energy control testing to design and validate reliable control strategies. Our solutions are trusted by leaders in these fields for high-performance testing.
Let’s get to work
Whether you need more details or have a specific question, our experts are here to help. Contact us today for personalized support.
