7 Simulation Use Cases Robotics Engineers Should Know for Lab Success

Edge-case failures in industrial robotics are preventable when you simulate them early. Teams that build, wire, and test robots carry the weight of safety, uptime, and delivery dates. What slows progress is not a lack of ideas but the blind spots that only appear under rare conditions. Real-time simulation turns those rare conditions into repeatable tests you can run every day.

You want proof that your robot will behave correctly when sensors flicker, buses jitter, or fixtures drift. You also want to shorten trips between model, lab, and line without cutting corners on safety. The quickest path is to map edge cases into models, then push those models through software-in-the-loop (SIL) and hardware-in-the-loop (HIL) stages. That approach gives you speed, repeatability, and confidence before metal moves.

“Real-time simulation turns those rare conditions into repeatable tests you can run every day.”

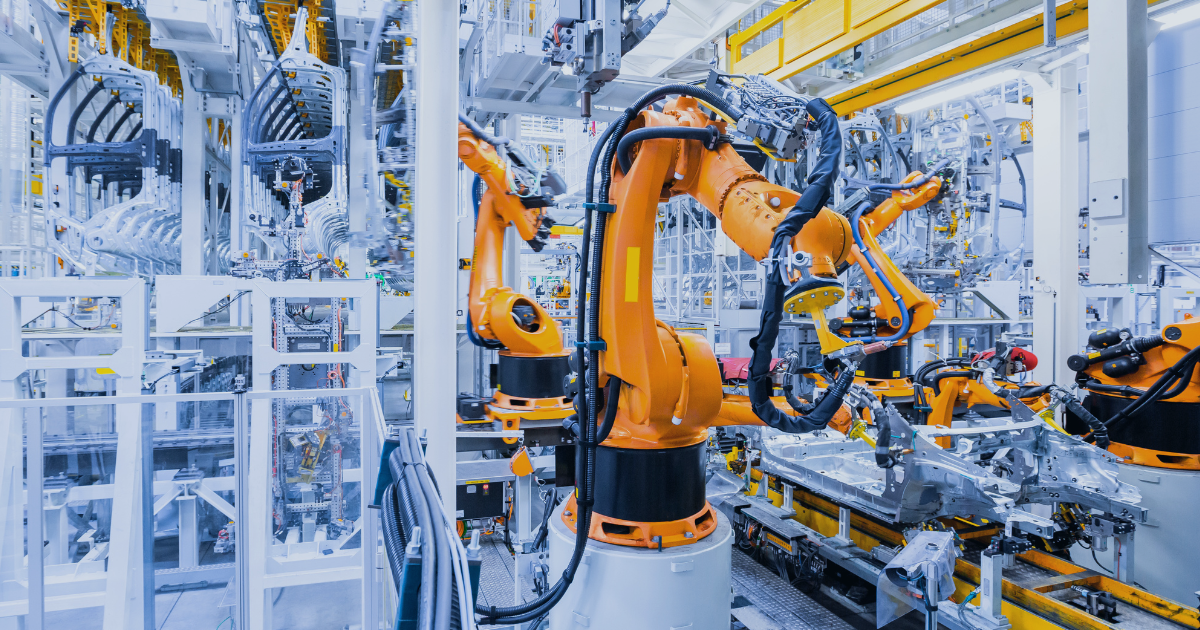

Why simulating edge cases matters for industrial robotics development

Edge cases describe the hard-to-reproduce states that sit outside normal operation. Sensors saturate, parts misalign, robot joints reach limits, or packets arrive late. Simulating edge cases lets you study how industrial robotics stacks respond when timing is tight and signals are noisy. Instead of waiting for a lucky lab incident, you trigger those states on command and measure outcomes.

This approach reveals logic errors, sensitivity to latency, and brittle assumptions before code reaches a robot. You save fixtures, reduce risk to people, and protect schedule. You also generate objective evidence for safety reviews, audits, and quality gates. Most of all, your team gains confidence that rare states have been studied, documented, and addressed.

7 use cases for real-time simulation in industrial robotics labs

Real-time simulation helps you test control software against physics, timing, and noise without waiting for hardware. It fits neatly into industrial robotics work where uptime, safety, and repeatability matter. The method supports robot safety analysis, logic robotics verification, and autonomy in robotics research with measurable outputs. The result is tighter test coverage that maps directly to tickets, requirements, and acceptance tests.

1. Validating edge-case performance for autonomous robotic behaviour

Autonomy depends on how the stack reacts when perception is uncertain, actuation is limited, or timing drifts. Using real-time simulation, you create scenes with occlusions, glare, dust, or conveyor variation and run them at control rate. Controllers, planners, and finite-state machines face edge-case stresses that would be risky to stage around hardware. The run yields repeatable logs that show where fallbacks trigger, how confidence thresholds move, and when handoff occurs.

You can quantify coverage by counting scenario families, variation sweeps, and error budgets per module. You can also tie outcomes to pass or fail rules linked to safety goals. This practice turns debate into evidence that strengthens autonomous robotic behaviour. Teams leave with clear fixes, ranked risks, and data that speeds reviews.

2. Testing robot safety logic under abnormal or failure conditions

Safety logic deserves proof under fault, not just under nominal paths. Real-time simulation lets you drive limit switches, light curtains, and torque limits as synthetic inputs while keeping people away. You can force faults like watchdog expiries, network brownouts, or thermal cutbacks and check interlock timing. The result is traceable evidence that emergency behaviours, estops, and reduced-speed modes respond within tolerance.

Logic robotics concerns often stem from untested transitions between states. Simulation lets you step through those arcs with millisecond control, then replay exact sequences during reviews. You also verify that alarms, logs, and recovery prompts present the right data to operators. That clarity reduces surprises during commissioning and shortens investigations after incidents.

3. Emulating hardware faults without damaging physical prototypes

Fault insertion at the model layer gives you freedom to test harsh cases without broken gear. You can emulate encoder dropout, stuck-at signals, motor stalls, short circuits, or timing drift without touching a single cable. Actuator and sensor models inject these patterns at precise timestamps, which keeps tests repeatable. Power electronics, drives, and input chains can all be exercised while current limits remain safe.

This method protects scarce prototypes and clears time for higher value work. It also helps isolate faults down to subsystems because stimuli are controlled, logged, and replayable. You can share fault recipes across teams, which builds a shared library of lessons. Over time, the lab grows a reliable set of fault profiles that speed triage.

4. Stress-testing logic robotics control systems in closed-loop simulation

Closed-loop tests connect control software to physics models at the target step size. You can overdrive setpoints, vary loads, and inject interference while keeping loop timing strict. This approach stresses task schedulers, middleware queues, and controller gains under heavy flow. Bottlenecks appear as missed deadlines, buffer overflows, or unstable states that can be fixed before field trials.

Hardware-in-the-loop (HIL) moves the same closed-loop idea onto physical control hardware. The controller sees voltages, currents, and contacts as if wires were present, which preserves timing. Engineers compare model iterations, firmware builds, and parameter sets quickly without re-cabling the cell. That pace helps teams reach stable logic faster with fewer late-stage surprises.

5. Accelerating autonomous robotics algorithms with software-in-the-loop

Software-in-the-loop (SIL) runs your algorithms against a compiled model on a workstation or server. You can push thousands of trials overnight with varied timing, sensor quality, and plant dynamics. Autonomy in robotics benefits because planners, estimators, and supervisors accumulate evidence faster. Performance metrics like success rates, collision margins, and recovery times trend visibly across builds.

SIL also helps with portability because code runs under the same operating system and compiler used for deployment. When HIL begins, the riskiest logic has already faced harsh case families in a safe setting. Teams keep the exact stimuli and logs so failures are easy to reproduce during fixes. That continuity tightens the link between research-grade code and production-grade behaviour.

6. Prototyping multi-robot coordination and timing synchronization

Coordinated cells depend on precise time across mobile platforms, arms, and conveyors. Real-time models let you study clock drift, message latency, and sensor skew with controlled variation. Sequence planners get exercised against jitter, missed triggers, and long network paths before hardware shares a space. You confirm that safety margins, handshakes, and resource locks hold under load.

Synchronisation strategies such as time-stamped topics, distributed clocks, and commanded barriers can be compared quickly. You can measure throughput, stall time, and queue depth for each approach using the same scenes. Engineers then select simpler, stronger methods that survive schedule pressure and maintenance realities. The payoff shows up as fewer blocked cells, fewer near misses, and steadier cycle time.

7. Reducing hardware usage by replicating industrial settings virtually

Virtual settings reduce wear on prototypes and keep the line available for production work. Physics-based models of conveyors, feeders, and fixtures let teams practise integration while hardware is still being built. You can swap variants fast, study tolerance chains, and validate layout choices without moving heavy equipment. Training, maintenance drills, and quality checks proceed sooner because models are accessible to more people.

Costs drop because fewer duplicate units are required for testing and support tasks. Those savings add up for labs that share assets across projects and shifts. Modelling also shortens the time to reproduce field issues since scenes can be reconstructed from logs. The practice builds confidence that the same logic will hold up when the workcell goes live.

Real-time simulation turns lab time into a sharp instrument for reducing risk. You get repeatable stimuli, tight timing, and physics that match your use cases. Teams spend less time fighting setup changes and more time fixing root causes. That shift sets a steady path from concept to production with fewer surprises.

“Fault insertion at the model layer gives you freedom to test harsh cases without broken gear.”

How real-time simulation supports autonomy in robotics testing

Autonomy improves when tests pressure the system where it is weakest. Real-time simulation gives you repeatability, timing control, and safe staging for hard cases. The approach scales from unit tests to full-cell checks without losing traceability. Those strengths support autonomy in robotics goals, from early modelling to lab commissioning.

• Deterministic timing for tight loops: Real-time simulation keeps control steps constant, which protects estimator and controller stability. Latency budgets become visible, and regressions show up as missed deadlines rather than vague symptoms.
• Safe exploration of rare cases: You can trigger partial occlusion, slip, and actuator limits without risk to people or equipment. Autonomy in robotics benefits from wider exposure to edge cases with clean logs for review.
• Faster iteration across software stages: Model-in-the-loop (MIL), software-in-the-loop (SIL), and hardware-in-the-loop (HIL) share the same scenarios. Issues fixed in SIL rarely return in HIL because the stimuli and timing stay consistent.
• Stronger measurement culture: Metrics such as success rate, time to halt, and path quality are computed the same way across builds. Teams align on thresholds, which shortens debate during approvals.
• Better use of scarce hardware: Virtual cells stand in for lines, fixtures, and units that are not yet available. Parallel runs keep schedules moving while suppliers finish parts.
• Cleaner safety cases: Evidence packs include scenario definitions, timing traces, and pass or fail tables tied to safety goals. Reviewers can replay any test, which supports trust and reduces rework.

Autonomy grows through repetition, measurement, and careful exposure to stress. Real-time simulation gives you that foundation without slowing the lab. You can push logic hard, inspect timing deeply, and hold the system to clear standards. Those habits carry into production, where uptime and safety matter every day.

How OPAL-RT helps engineers simulate edge cases and robot safety logic

OPAL-RT delivers real-time digital simulators that pair field-programmable gate array (FPGA) capacity with fast CPUs, which supports high-fidelity, low-latency tests. RT-LAB runs your models from common model-based design tools, Functional Mock-up Interface modules (FMI) and Functional Mock-up Units (FMU), or Python, then connects them to controllers through deterministic I/O. That toolchain lets you stage simulating edge cases, drive fault insertion, and run closed-loop safety checks under HIL conditions. Engineers keep using their preferred modelling tools, while gaining precise timing, rich logging, and open integration to lab gear. The result is a smoother path from concept to lab proof without extra vendor lock-in.

For logic robotics, OPAL-RT supports distributed tests across multiple controllers, shared clocks, and mixed networks. You can build software-in-the-loop grids for autonomy code, then port the same scenes to HIL with consistent timing and I/O maps. Safety teams can package pass or fail evidence from RT-LAB runs, including waveforms, timestamps, and parameter sets, for audits and reviews. OPAL-RT stands as a trusted partner for rigorous simulation, proven performance, and clear results.
