7 ways real-time simulation strengthens your energy storage validation process

Key Takeaways

• Real-time simulation gives engineers a safe, repeatable way to stress energy storage systems under realistic operating conditions before hardware is installed or energised.

• Consistent use of real-time tools helps compare battery energy storage, thermal storage, pumped hydro, supercapacitors, and other options using shared scenarios, metrics, and test criteria.

• Hardware-in-the-loop validation links detailed models with actual controllers so timing effects, protection behaviour, and communication issues are exposed early in the design process.

• Insights from long scenario runs help size energy storage systems, refine control strategies, estimate lifetime impact, and build stronger cases for project stakeholders and financiers.

• A flexible real-time simulation platform supports storage projects over time, from early concept validation through grid code testing, hybrid architectures, and long-duration energy storage technologies.

Engineers working on energy storage systems carry a heavy responsibility, because grid stability and project economics depend on their choices. You feel that pressure every time a model misses an edge case, or a hardware test exposes a problem that should have been caught much earlier. Storage assets are capital intensive, tightly integrated with controls, and exposed to operating conditions that are hard to reproduce with slow, offline studies. Real-time simulation gives you a way to stress those designs under realistic dynamic behaviour, before a single container, turbine, or flywheel is installed.

Teams that rely on spreadsheets and slow simulation runs often struggle to align control logic, protection, and power hardware. Signal paths, communication delays, and complex interactions across grid, plant, and storage all matter once equipment goes to site. Real-time tools let you close that loop between models and controllers, so you can watch every transition unfold at controller time scales. That shift changes validation from a static check-box exercise to a continuous learning process that guides design, testing, and commissioning.

“Real-time simulation gives you a way to stress those designs under realistic dynamic behaviour, before a single container, turbine, or flywheel is installed.”

Why engineers rely on real-time tools to assess energy storage options

Real-time simulation brings time alignment between models of energy storage systems and the digital controllers that manage them. When plant models execute at the same step size as controller hardware, you can reproduce timing problems, saturation effects, and nonlinearities that offline studies often hide. That fidelity is especially important for power electronics interfaces, complex converter control, and multi-domain coupling between mechanical, thermal, and electrical subsystems. Engineers gain clear visibility into how storage assets respond during faults, grid disturbances, and aggressive operating scenarios that would be risky to test on physical equipment.

Project stakeholders also need evidence that a chosen storage option can meet performance, reliability, and safety requirements over long duty cycles. Offline tools can estimate steady-state efficiency or energy capacity, but they struggle to capture sequences of events such as controller failovers, communication loss, or grid code tests. Real-time platforms let you replay those sequences with hardware in the loop, so controller software, protection settings, and communication links are stressed under controlled conditions. That approach reduces surprises later in the lab and on site, while giving system architects richer data to justify design decisions.

Real-time tools also connect modelling teams, test engineers, and commissioning staff around a single reference that behaves like the final system. A digital twin that runs in real time can host hardware-in-the-loop (HIL) experiments during early control prototyping, then later support grid integration studies and operator training. Engineers can reuse the same scenarios, fault cases, and load profiles as storage technology options are compared, which keeps evaluations consistent across the project. That consistency shortens handovers between project phases and makes it easier to align suppliers around clear, measurable requirements.

7 methods to validate energy storage technologies using real-time simulation

Real-time simulation supports many types of energy storage technologies, from familiar batteries to emerging long-duration concepts. Each technology brings different dynamics, control challenges, and integration questions that can be hard to study with slow simulation runs alone. A single real-time platform lets you create a consistent test bench, so the same disturbance or duty cycle can be applied to every option. Engineers gain a structured way to compare technologies on equal terms, using shared scenarios and measurement criteria instead of intuition or vendor claims.

1. Battery energy storage

Battery energy storage now appears in grid-scale projects, industrial facilities, and behind-the-metre systems, and each context pressures the design in different ways. Engineers must consider electrochemical limits, thermal behaviour, current limits, and state-of-charge management, all while keeping costs under control. Real-time simulation lets you represent these aspects through detailed equivalent circuit models, look-up tables, or reduced electrochemical models that still reproduce dynamic response accurately. When those models run in step with converter control hardware, you can test how the battery responds during high current ramps, voltage excursions, and fast switching events.

Validation of battery energy storage also involves the battery management system, since protection and health estimation often create hidden limits on usable capacity. A real-time platform lets you place the battery management system controller in the loop, inject sensor noise, communication delays, and fault conditions, then observe the effect on current limits or trip events. Ageing and degradation can be emulated by modifying internal resistance, capacity, or thermal parameters across long scenarios, so you see how control strategies hold up over many years of equivalent use. This approach produces traceable data on operating margins, which supports safer operating envelopes and more accurate business cases.

2. Thermal storage

Thermal storage covers technologies such as chilled water tanks, molten salt, phase-change materials, and building thermal mass. These assets often work alongside heating, ventilation, and cooling equipment, which means their value depends on how they shift loads over hours, days, or seasons. Real-time simulation lets you co-simulate building or process models with grid or microgrid controllers, so thermal storage interacts with electrical loads and renewable generation in realistic ways. Engineers can test strategies such as pre-cooling, load shifting, or contingency response under many weather patterns and occupancy profiles without touching physical equipment.

Accurate thermal storage validation also requires close attention to non-linear heat transfer, stratification, and material limits. Real-time platforms can implement reduced-order thermal models that preserve key dynamics while meeting step-size and latency constraints for hardware-in-the-loop tests. Control engineers can connect programmable logic controllers and building automation systems to the simulator, then rehearse control sequences for peak-load reduction, comfort limits, and grid-response programmes. These tests highlight how much flexibility thermal storage can truly provide, and reveal any conflicts between comfort, efficiency, and grid-support objectives.

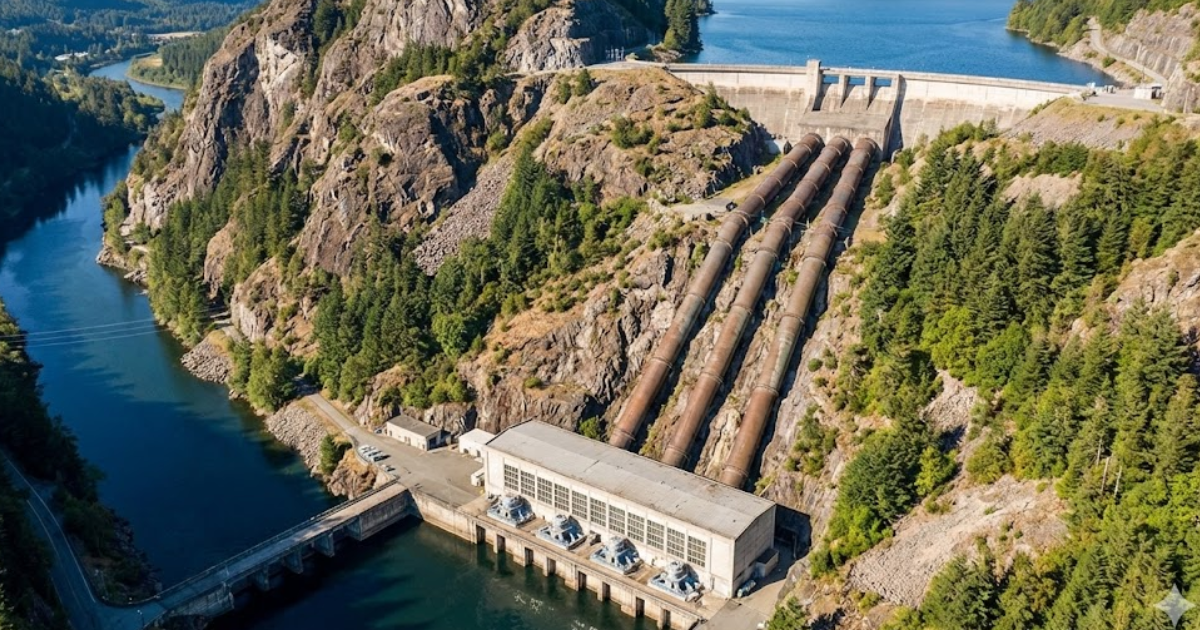

3. Pumped hydro

Pumped hydro storage uses upper and lower reservoirs, turbines, and pumps to shift energy across long periods, often from off-peak to peak load conditions. The mechanical and hydraulic components introduce slower dynamics than power electronic converters, yet their interaction with the grid still requires careful study. Real-time simulation lets engineers examine how guide vane positions, water levels, and machine inertia affect frequency response, ramping capability, and fault behaviour. Integrated models of turbines, generators, and grid controllers help teams see how a plant behaves during dispatch changes, islanding events, and black-start scenarios.

Validation of pumped hydro often focuses on operating limits, start-up and shut-down sequences, and coordination with other grid assets. A real-time simulator can reproduce detailed protection logic, governor and excitation controls, and communication with dispatch centres, using hardware controllers or software emulation as needed. Engineers can inject faults such as line trips, sudden loss of generation, or changes in tie-line schedules, then observe how the plant responds while respecting hydraulic and mechanical constraints. These insights guide settings for ramp rates, deadbands, and protection thresholds that balance grid support, asset health, and service obligations.

“Across these technologies, real-time simulation creates a consistent way to compare behaviour, stress levels, and control robustness.”

4. Supercapacitors

Supercapacitors deliver very high power for short durations, which makes them useful for voltage support, ride-through, and power-quality improvement. Unlike batteries, they store energy electrostatically rather than chemically, so they tolerate many more cycles with minimal degradation. Their dynamic behaviour is much faster than most electrochemical storage, and their interaction with converters and controls can expose subtle timing issues. Real-time simulation gives you a safe place to test these fast transients, current spikes, and control actions without risking hardware damage.

Engineers often pair supercapacitors with other assets, such as battery packs or flywheels, to absorb very short pulses while leaving slower energy shifts to another device. A real-time platform can model this combined system at microsecond-level resolution while controllers operate in the loop, so power-sharing algorithms and state estimators can be tuned under stress. Fault scenarios such as control loss, sensor failure, or over-voltage can be replayed repeatedly, making it easier to refine protection logic and interlocks. The result is a clearer view of safe operating areas, lifespan expectations, and realistic service capabilities for supercapacitor-based systems.

5. Flywheels

Flywheel energy storage relies on a rotating mass, magnetic bearings, and power electronic interfaces to provide very fast power support. These systems are sensitive to mechanical stresses, vibration, and containment constraints, which means test plans must respect safety margins. Real-time simulation lets engineers couple detailed mechanical models of the rotor with converter and control models, so both electrical and mechanical limits are respected during testing. That capability is especially useful when studying grid faults, sudden load steps, or extreme speed conditions that would be hazardous to reproduce on a prototype.

Validation work for flywheels often examines how control strategies manage state of charge, rotor speed, and torque limits while delivering high-quality power. A real-time platform can host the actual control hardware, including digital signal processors and programmable logic controllers, while the mechanical system remains in simulation. Engineers can test different damping strategies, bearing fault responses, and containment protection schemes while measuring how each choice affects response time and stability. The outcome is a safer, better-documented path from simulation to hardware construction, with fewer surprises during commissioning.

6. Hybrid energy storage systems

Hybrid energy storage systems combine different technologies, for example batteries with supercapacitors or batteries with flywheels, to balance power density, energy capacity, and lifecycle cost. These architectures rely on supervisory control strategies that decide which device handles fast events, which handles bulk shifting, and how often each component is used. Simple spreadsheets cannot capture the interactions between energy management, converter limits, and grid conditions across thousands of operating hours. Real-time simulation gives you a precise way to test these strategies under stress, while monitoring how each subsystem responds.

A hybrid system test bench on a real-time platform can include several physical controllers, communication networks, and even partial hardware such as a converter prototype. Engineers can apply identical load profiles and grid events to many control variants, then compare energy throughput, temperature evolution, and stress metrics for each component. This method reveals trade-offs between battery lifetime, supercapacitor sizing, and converter cost without needing many hardware iterations. Project teams gain hard evidence to support hybrid architectures instead of relying on rough sizing rules or simplified spreadsheets.

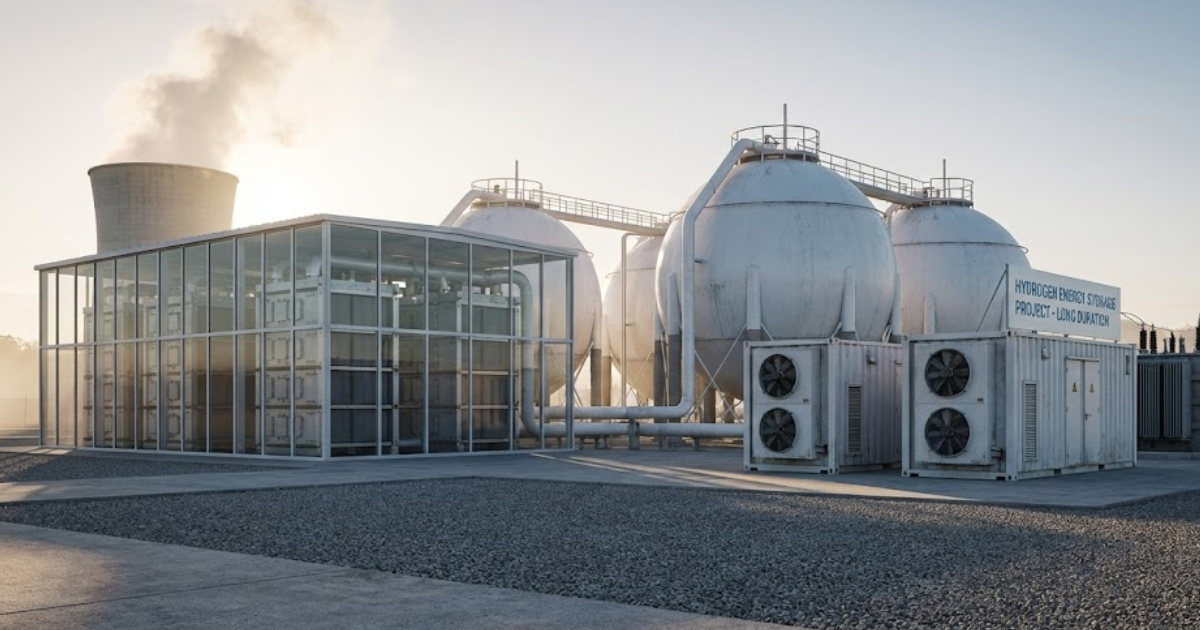

7. Long-duration energy storage technologies

Long-duration energy storage technologies, such as flow batteries, compressed air storage, and hydrogen-based systems, target multi-hour to multi-day energy shifting. Their main challenge lies less in fast transient response and more in long-term operation, cycling patterns, and integration with variable generation. Real-time simulation helps engineers connect plant-level models, grid interaction, and supervisory control into one coherent setup that runs continuously over extended scenarios. That way, you can study how dispatch rules, weather patterns, and market signals interact with plant limits and state-of-charge trajectories.

These technologies also often involve several subsystems, such as electrolysers, storage caverns, and reconversion equipment, each with its own control and protection schemes. A real-time platform lets you model those subsystems at appropriate detail, then attach control software or hardware interfaces as the project matures. Engineers can test black-start capability, island operation, and reconnection procedures without exposing costly infrastructure to risk. Data from these studies supports long-horizon planning, since planners see not only energy figures but also operational constraints that affect revenue and reliability.

Across these technologies, real-time simulation creates a consistent way to compare behaviour, stress levels, and control robustness. Engineers see beyond nameplate ratings, because they can watch how storage assets respond to faults, communication problems, and difficult duty cycles. The same test bench can grow from early concept studies to detailed hardware-in-the-loop campaigns, so teams keep building on previous work instead of starting from scratch. That continuity shortens project timelines, lowers integration risk, and supports better conversations with suppliers, regulators, and project owners.

How engineers use simulation insights to choose suitable energy storage designs

Running advanced models is only useful if the results change how you choose storage technologies and configurations. Real-time simulation generates time-series data, fault responses, and controller logs that can be turned into design criteria your team trusts. Clear metrics such as state-of-charge swings, converter utilisation, and curtailment hours help you move from abstract requirements to concrete specifications. That process turns simulation work into direct input for sizing, technology selection, and contract language.

• Quantify duty cycles and load profiles: Real-time simulation replays measured or synthetic profiles for loads, generation, and market signals over long periods. These runs reveal how often storage systems charge, discharge, rest, and sit at partial state of charge, which feeds directly into energy, power, and cycling requirements.
• Compare round-trip efficiency and losses: Standard efficiency figures can hide strong dependence on operating point, temperature, or state-of-charge range. Scenario-based simulations let you compute energy in versus energy out for each technology under consistent profiles, so you pick options that fit site-specific efficiency priorities.
• Assess dynamic performance and stability: Engineers can watch voltage, frequency, converter currents, and control signals during disturbances, start-up, and shut-down across many candidate designs. This view makes it easier to flag oscillations, sluggish response, or undesirable interactions with other grid assets before any field tests.
• Evaluate protection and fault response: Real-time testing exposes how protection relays, battery management systems, and converter controls behave during faults, sensor failures, or communication issues. Results show which designs maintain service, trip gracefully, or place hardware at risk, which helps refine settings and interlocks.

Consistent use of real-time simulation shifts storage selection from opinion and habit to evidence and engineering criteria. You gain a clearer link between grid or facility objectives and the technical parameters that define each storage option. That clarity also supports smoother procurement, because specifications reflect tested behaviours rather than generic templates. Teams that adopt this mindset find it easier to justify design choices, manage risk, and stay on schedule.

How OPAL-RT supports high-fidelity validation of advanced energy storage systems

OPAL-RT builds real-time digital simulators that combine high CPU performance with FPGA-based acceleration, so detailed storage models can run at the time steps your controllers expect. Engineers can connect converters, protection relays, and supervisory controllers directly to the simulator, which allows closed-loop tests before any storage module is installed. The platforms support power electronic converters, mechanical models, and grid networks in one integrated setup, so hybrid energy storage systems can be assessed as complete systems rather than isolated pieces. Open interfaces to common modelling tools make it practical for teams to bring existing models into real time, refine them, and share them across labs.

OPAL-RT teams work closely with utilities, equipment manufacturers, and research labs that face schedule pressure, cost limits, and strict performance requirements on storage projects. Support covers model integration, signal conditioning, and test automation, so engineers can focus on control logic and performance analysis. The same platforms that validate energy storage systems often also host microgrid studies, vehicle-to-grid testing, and power hardware experiments, which simplifies lab infrastructure planning. Experience with strict grid codes and complex converter topologies helps OPAL-RT guide users toward practical test coverage, not just idealised scenarios. That depth of technical support and project experience gives engineering teams confidence that OPAL-RT is a reliable partner for storage validation work.

Common questions

Engineers planning energy storage validation often raise similar questions about technology choices and test strategies. Some questions focus on the variety of storage options, while others look at efficiency, control behaviour, or the timing of hardware-in-the-loop work. Clear answers help project teams set realistic expectations for simulation scope and required models. Short, focused explanations help clarify key ideas that recur in planning meetings and design reviews.

What are the main types of energy storage technologies?

Energy storage technologies often fall into a few broad families, such as electrochemical, mechanical, thermal, and chemical options. Electrochemical storage includes batteries and flow batteries, while mechanical storage covers pumped hydro, flywheels, and compressed air systems. Thermal storage uses chilled water, molten salts, or phase-change materials to shift heating or cooling loads over time. Chemical pathways such as hydrogen storage and synthetic fuels add more layers by separating energy capture from use in time, at the cost of additional conversion stages.

How do batteries and supercapacitors differ in practical applications?

The main difference between batteries and supercapacitors is that batteries prioritise energy capacity over long periods, while supercapacitors prioritise very high power for short bursts. Batteries rely on chemical reactions and therefore tend to degrade with each cycle, even though they can hold energy for many hours. Supercapacitors store energy electrostatically and handle many more cycles, but their energy density is much lower, so they suit seconds-level support rather than long-duration shifting. Practical use cases tend to allocate batteries to bulk shifting and reserve support, and supercapacitors to power-quality, fault ride-through, or fast voltage support. Real-time simulation makes those roles clear by exposing how each device behaves under identical disturbances and duty cycles.

Which energy storage systems are most efficient in operation?

Efficiency depends strongly on operating conditions, but some patterns hold across technologies. Pumped hydro and modern lithium-based batteries often achieve high round-trip efficiency when operated near their design point, while thermal storage efficiency can vary with insulation quality and temperature levels. Supercapacitors exhibit very low internal losses for short cycles, yet the conversion interfaces around them still affect overall efficiency. Long-duration options such as hydrogen or synthetic fuels generally sacrifice efficiency for flexibility in storage duration and location. Simulation studies help quantify these effects for a specific project, using realistic duty cycles and loss models instead of generic catalogue numbers.

How does real-time simulation help reduce risk in energy storage projects?

Real-time simulation reduces risk by revealing how storage systems, controllers, and grid interfaces behave under stress before equipment is energised. Engineers can rehearse black-starts, islanding, reconnection, and severe faults with protection relays, controllers, and communication networks all included. Each run produces data that shows where margins are thin, which functions misbehave, and which components require redesign or additional monitoring. This process reduces unexpected trips during commissioning and operation, and it creates traceable evidence that supports internal reviews and external approvals. Project teams gain more confidence in both performance and safety without over-extending hardware test budgets.

When should hardware-in-the-loop testing be added to the validation plan?

Hardware-in-the-loop testing usually enters the plan once control algorithms are stable in offline models but before final controller hardware is frozen. Starting at this stage lets engineers verify timing, numerical limits, and fault handling on actual control platforms without waiting for full power hardware. Early HIL campaigns focus on basic I/O, protection, and communication, then gradually add more complex scenarios as models and controllers mature. The same real-time setup can later support regression tests when firmware changes or new operating modes are introduced. Treating HIL as a recurring activity rather than a last-minute check leads to more robust storage deployments.

Energy storage projects span many technologies, control philosophies, and regulatory frameworks, so clear answers to foundational questions matter. Real-time simulation does not replace engineering judgement or field testing, but it gives you a safer and more informative place to ask difficult questions. Teams that invest early in models, scenarios, and test automation find it easier to revisit assumptions as projects move from concept to operation. Clear communication of these ideas across engineering, management, and finance helps storage investments deliver the performance and reliability that stakeholders expect.
