Validating eVTOL electric propulsion before the first flight article
Industry applications
10 / 12 / 2026

Key Takeaways
- Distributed propulsion makes an eVTOL tolerant of a single failure only when every remaining unit and the thrust redistribution logic have been proven for that failure on the ground.
- Real-time models of motors, inverters and batteries let you repeat fault cases that would destroy prototype hardware, which is where most propulsion risk sits.
- Simulation earns certification value when models are correlated with measurements and every test record traces back to a requirement.
eVTOL propulsion evidence has to be built on the ground, against simulated faults, long before the first flight aircraft exists.
Flight test is a poor place to learn how a motor, inverter or battery behaves when something breaks. A lift rotor that loses torque during hover leaves the flight controller a fraction of a second to respond. The Vertical Flight Society’s directory of eVTOL aircraft designs now lists more than 1,100 concepts from over 450 designers. The distance between a concept and a certified aircraft is mostly evidence.
Electric aircraft propulsion gives you an advantage that turbine programs never had. Motors, drives and batteries can be modelled in real time with enough fidelity that the actual controller can’t tell the model from the hardware. That lets you run failure cases thousands of times on a bench, then use flight test to confirm what you already know. Programs that treat simulation as evidence reach first flight with fewer open questions.
How eVTOL electric propulsion works as a distributed system
eVTOL electric propulsion works as a set of independent propulsion units, each with its own motor, inverter and controller, fed from a high-voltage battery through redundant buses. Thrust comes from many rotors instead of one or two engines, so the aircraft keeps flying after a single unit fails, provided the rest respond correctly.
Picture a generic six-rotor lift configuration in hover. Lose one rotor and the remaining five each carry about 20% more thrust. Ideal hover power rises with thrust to the power of 1.5, so each surviving unit draws roughly 31% more power. Rebalancing torque and attitude pushes some units harder than that average.
Redundancy is only as good as the reaction to a failure. Each eVTOL motor, inverter and battery string has to be sized and proven for the overload case, and the logic that redistributes thrust has to be proven against every unit failing in every flight phase. That’s a combinatorial test problem, and most of it has to be solved on the ground.
“Redundancy is only as good as the reaction to a failure.”
What motor validation has to prove before flight hardware exists
Motor validation has to prove that the machine delivers rated torque across the full speed and temperature range, survives the overload it sees after a neighbouring unit fails, and behaves predictably under its own winding, sensor and bearing faults. Most of that behaviour can be characterized before a flight-standard motor is built.
A dynamometer covers the healthy cases well. Torque maps, efficiency, thermal rise during a sustained hover and vibration signatures all come from a physical machine on a test stand. Trouble starts with faults, because a shorted winding turn or a demagnetized rotor destroys expensive prototype hardware and can’t be repeated at will.
A real-time motor model fills that gap. With the machine represented on an FPGA using inductance and flux maps taken from finite element analysis, the real motor controller sees currents and position signals it can’t distinguish from a physical motor. You can inject an open phase, a resolver dropout or a partial short circuit in the middle of a manoeuvre and repeat it across the operating range.
Fault tolerance inside the motor raises the stakes for this kind of testing. NASA reliability modelling of a four-module fault-tolerant motor for vertical lift vehicles calculated 570 times greater reliability than a baseline motor without fault tolerance. A gain that large only holds if the controller detects and isolates each fault the way the model assumes. Closed-loop testing is how you confirm it does.
How inverter validation exposes faults a healthy bench never shows
Inverter validation proves that the drive controls current accurately at every switching instant and reaches a safe state within its fault reaction time. The second half matters most, because protection logic, gate drive behaviour and fault handling rarely get exercised on a bench where everything works.
Timing is where the difficulty sits. Take a generic drive switching at 20 kHz, which gives a 50 microsecond period. Resolving the duty cycle to 1% means capturing gate edges to within 500 nanoseconds, so the motor and power stage models have to run on an FPGA. With that in place, you can open a switch, short the DC link, drop a current sensor or delay a gate signal and watch what the controller does. None of those tests puts a silicon carbide power module at risk.
How eVTOL batteries are validated against hover power profiles
eVTOL batteries are validated at three levels. Cells are abuse tested and characterized, modules and packs are tested for thermal runaway containment, and the battery management system is tested against a simulated pack that reproduces every cell voltage, temperature and current. The mission profile links all three, since hover power arrives when the pack is weakest.
Landing is the hard case. A generic 800 V pack supplying 400 kW draws 500 A, and if terminal voltage sags to 640 V at low state of charge, the same power takes 625 A. Current climbs just as cell resistance rises and temperature margins shrink. A reserve that looks adequate on an energy basis can still fall short on power.
Battery emulation lets you test that corner without discharging a pack over and over. A cell-level model drives the sense inputs of the management system, so you can impose a weak cell, a failed temperature sensor or a contactor that welds shut and check the limits reported to the flight controller.

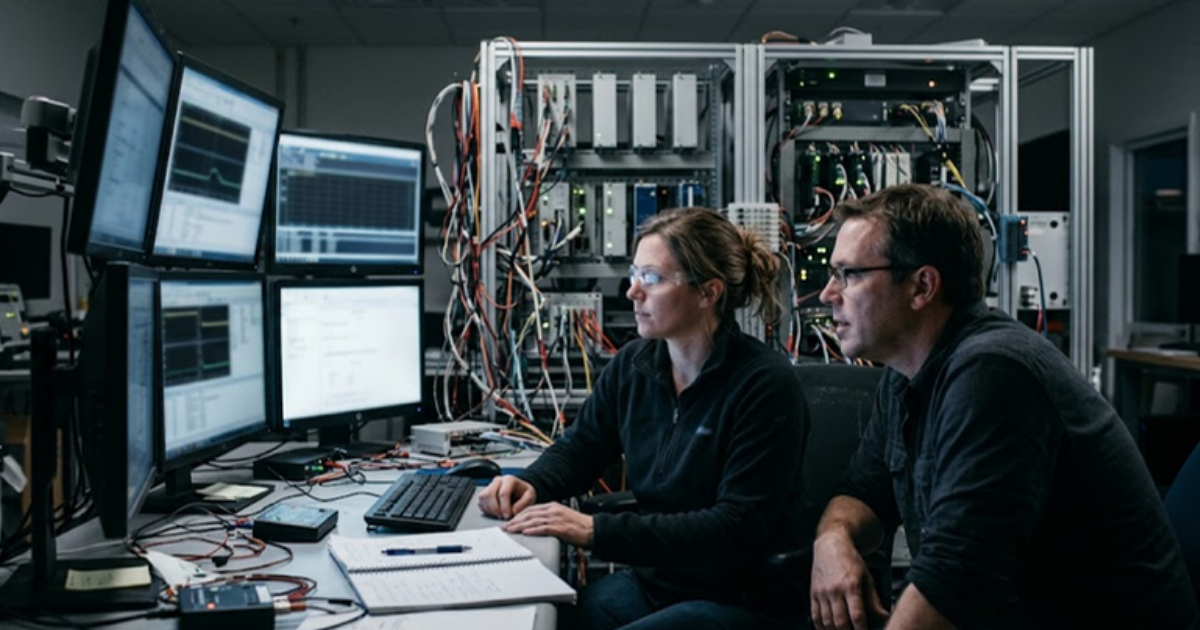

Where hardware in the loop carries evidence ahead of flight test

Hardware in the loop for eVTOL connects the actual propulsion and flight control units to real-time models of the motors, inverters, batteries and airframe, so the complete control chain runs before any flight hardware turns a rotor. It carries the evidence for fault response, mode logic and integration between units from different suppliers.
Each validation stage answers something the others can’t, and the summary below shows how the work divides.
| Validation stage | What it proves |
| Offline simulation | Sizing and control concepts hold up across the mission. |
| Controller hardware in the loop | Real control units react correctly to injected electrical and sensor faults. |
| Power hardware in the loop | A real inverter handles full voltage and current against an emulated motor or battery. |
| Dynamometer and iron bird rigs | Physical machines meet torque, thermal and endurance targets as an integrated system. |
| Ground runs on the aircraft | Installed propulsion behaves as the rigs predicted, including vibration and cooling. |
| Flight test | Earlier evidence holds in the air with aerodynamic interactions included. |
Simulation only counts as evidence when the models are validated against measurements and the test records trace back to requirements. That means correlating the motor model with dynamometer data, logging every fault case with its pass criteria and rerunning the full set after each software change. OPAL-RT supports this stage of aerospace electrification with real-time models of motors, drives and batteries, so propulsion controllers face failure cases before flight hardware exists.
The payoff shows up in the schedule, because a regression suite that runs overnight replaces weeks of rig time.
What makes eVTOL certification hard for propulsion teams
eVTOL certification is hard because the aircraft combines novel propulsion, fly-by-wire control and high-voltage energy storage under rules that were written recently and are still being interpreted. Propulsion teams have to show that no single failure is catastrophic, across far more failure combinations than a conventional aircraft presents.
Five areas absorb most of the effort.
- Failure combinations across many propulsion units and several flight phases
- Software and electronic hardware assurance for every motor controller
- Battery thermal runaway containment at pack and installation level
- High-voltage protection coordination between sources and loads
- Common cause failures that defeat redundancy, such as shared cooling or shared software
Tight timelines make the ordering matter. Authorities expect a test plan agreed in advance, a conforming test setup and credit only for what was demonstrated under that plan. Evidence gathered informally during development usually can’t be reused, so it’s worth setting up simulation benches with certification credit in mind from the first day.
Ground evidence decides how the first flight goes
The first flight of a new eVTOL should be the least surprising day of the program. If the motors, inverters and batteries have already been through their failure cases against validated models, the flight crew is confirming predictions. If they haven’t, the aircraft itself becomes the test bench.
“The first flight of a new eVTOL should be the least surprising day of the program.”
That discipline is built one decision at a time. You choose to correlate a model instead of trusting it, to log a fault case instead of trying it once, and to rerun the suite when a supplier ships new firmware. None of this is glamorous work, yet it’s the work that keeps a propulsion fault from being discovered at altitude. It’s also where OPAL-RT fits, with real-time simulation that puts controllers in front of motor, drive and battery models early. Teams that work this way arrive at flight test with shorter open-item lists.
