OP8217

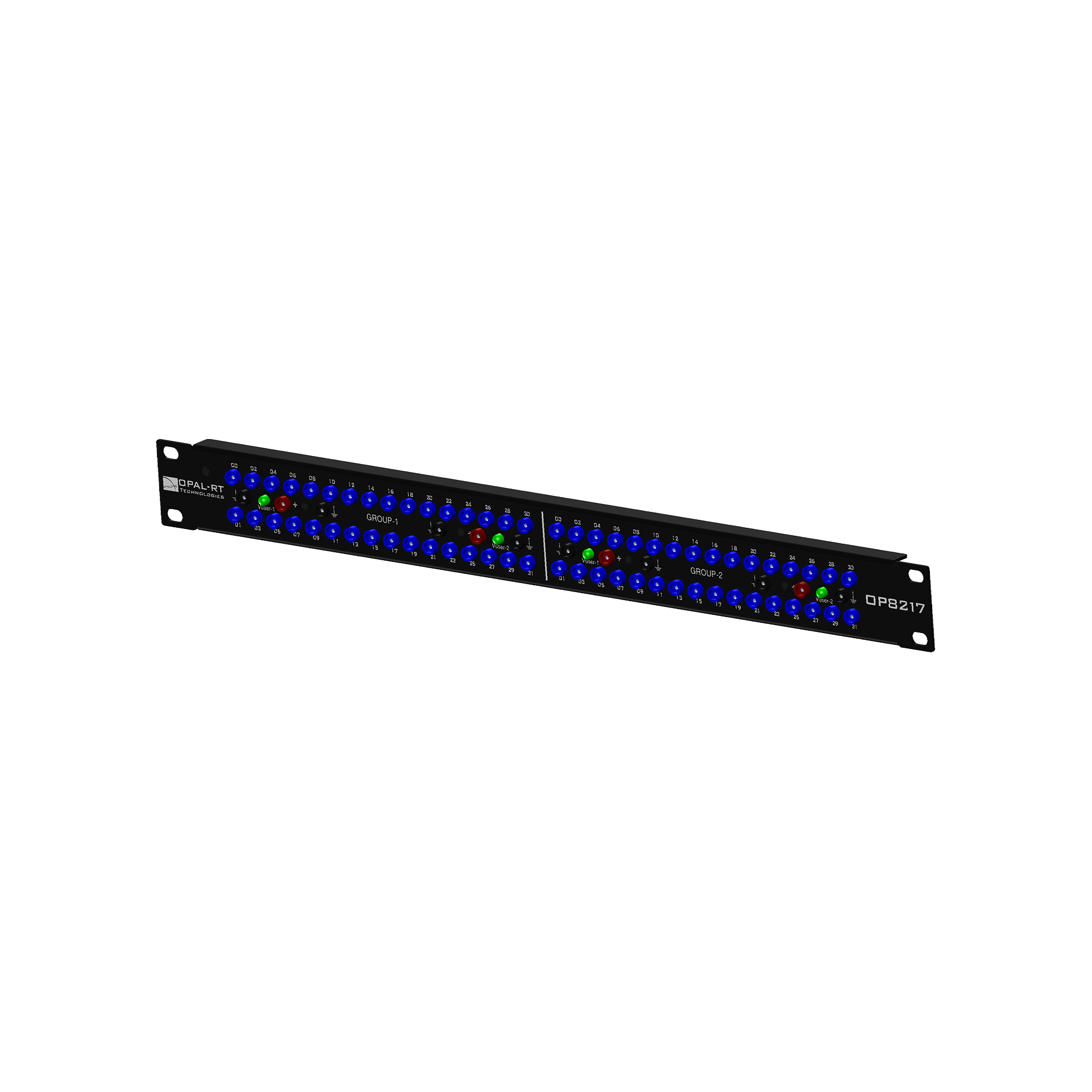

The OP8217 I/O adapter is a 32 or 64 signal interface panel with 2 mm diameter mini-banana plugs. The backside connector is a DB44 connector which allows interconnection with OPAL-RT SLSC boards and products. Designed for both memory mapped I/O and I/O-mapped configurations, it does not apply any conditioning to the signals.
FAQ
Find the answers to your questions
What is the OP8217 and how does it function as an I/O adapter?
The OP8217 is our versatile I/O adapter designed to interface with up to 32 or 64 signals using 2 mm mini-banana plugs. It connects to our SLSC boards via a DB44 connector, providing a reliable and compact solution for signal interfacing in real-time simulation environments.
Does the OP8217 support memory mapped I/O or I/O-mapped configurations?
Yes, the OP8217 supports both memory mapped I/O and I/O-mapped configurations. This flexibility allows our users to easily integrate the panel with various real-time systems depending on their project architecture and control requirements.
How does the OP8217 integrate with OPAL-RT’s SLSC boards?
We designed the OP8217 with a DB44 connector on the backside, making it easy to interconnect directly with our SLSC boards and related products. This seamless integration ensures consistent signal flow and efficient testing environments.
Does the OP8217 apply any signal conditioning to the I/O?
No, the OP8217 does not apply any conditioning to the signals. We’ve developed this I/O adapter as a direct interface panel to maintain the raw integrity of signals, giving users full control over their conditioning needs elsewhere in the simulation setup.
Where can I find more resources or support for using the OP8217 I/O adapter?
We offer a comprehensive support ecosystem for OP8217 users, including our support center and portal. Whether you’re looking for a user guide, technical support, or in-depth training on memory mapped and I/O-mapped setups, we’re here to help every step of the way.
