The Engineer’s Guide to Robotics Simulation for Research and Industry

You want fewer surprises when your robot meets hardware, and simulation gives you that confidence. Teams across research and industry are shifting key tests to digital models long before parts arrive. This approach cuts risk, shortens cycles, and reveals integration issues while changes are still cheap. The payoff is safer lab time, clearer design choices, and stronger test coverage.

Robotics simulation now supports high-fidelity physics, photorealistic sensors, and closed-loop control. It lets you evaluate control logic, calibrate perception, and study latency under stress without harming equipment. Modern toolchains tie into code repositories, orchestration platforms, and real-time rigs for smooth handoffs. The goal is simple: give engineers reliable data that stands up in the lab and in the field.

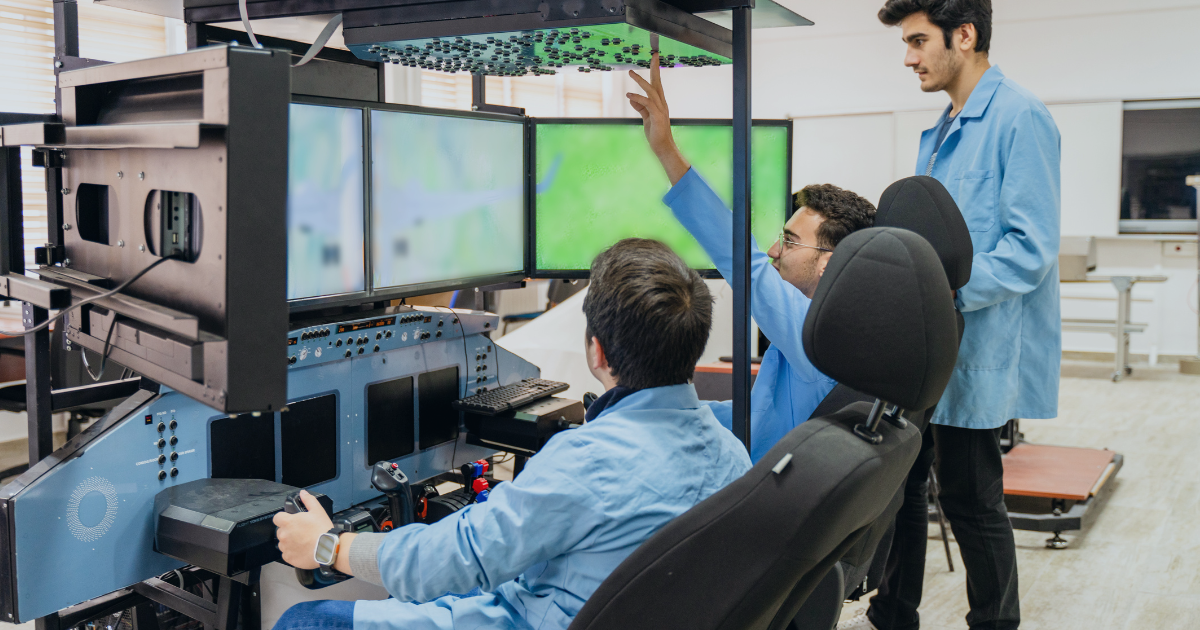

What robotics simulation means for testing complex systems today

Robotics simulation gives you a safe, cost-aware way to explore design decisions before anything touches a bench. Complex systems involve mechanics, electronics, control algorithms, and software timing that interact in subtle ways. Simulated experiments surface those interactions early, so integration happens with fewer surprises and fewer rebuilds. This makes schedules more predictable and helps teams protect limited lab time.

The term covers more than 3D visuals. It includes multi-body dynamics, contact models, actuator response, and detailed sensor modelling for cameras, lidar, radar, and encoders. It also includes test orchestration that ties simulated plants with control software through model-in-the-loop (MIL), software-in-the-loop (SIL), processor-in-the-loop (PIL), and hardware-in-the-loop (HIL). When each stage lines up, robotics simulation becomes the backbone of a continuous testing process that builds trust in every release.

Key benefits of using simulation software for robotics development

Teams adopt simulation software for robotics to reduce risk, raise test coverage, and keep iteration moving while parts are on order. Engineers use it to compare control ideas, measure sensitivity, and spot failure modes while changes are still inexpensive. Managers rely on it to protect build budgets, schedule resources, and create repeatable evidence for reviews. The gains show up across safety, performance, and time to test.

• Faster iterations with less rework: Virtual builds let you trial changes in minutes instead of waiting for a new fixture. You can try several control strategies, compare metrics side by side, and lock decisions with data.
• Physics fidelity you can trust: Rigid and soft-body dynamics, friction, and compliant contacts help you see how assemblies will behave under load. Accurate plant models shorten the gap between prediction and lab runs.
• Sensor realism for perception and fusion: Camera, lidar, radar, time-of-flight, and encoder models produce signals that match expected noise and bias. Teams can tune algorithms and verify thresholds without risking equipment.
• Closed-loop validation across MIL, SIL, PIL, and HIL: Simulation software for robotics links algorithms to digital plants, processor targets, and real I/O in a consistent flow. That continuity reduces handoff errors and keeps timing assumptions honest.
• Broader scenario coverage at lower cost: You can stage rare events, adverse lighting, and challenging surface properties without safety concerns or travel. Scenario libraries provide regression depth that is hard to reproduce on a bench.
• Data quality and traceability: Every run can log inputs, outputs, seeds, and versions for clean audit trails. This supports peer review, field issue triage, and quality systems.
• Budget protection and resource planning: Virtual tests lower wear on gear, reduce scrap, and help right-size hardware purchases. Teams align spend with proven needs, not guesses.

Teams that invest in these practices see fewer late-stage surprises, stronger evidence for sign-off, and steady progress from concept to pilot. Engineers get objective metrics for tuning and acceptance, so debates turn into decisions. Leaders gain a clearer view of risk, cost, and schedule, which keeps programmes on track. Simulation software for robotics becomes a consistent, trusted part of the test strategy rather than a side experiment.

When to use robotic simulation software in research and prototyping

Early use of robotic simulation software sets a steady cadence for design and verification. You do not need finished CAD or a complete control stack to get value. Projects benefit when virtual experiments run in parallel with hardware planning, supplier lead times, and fixture design. A robotics simulator earns its keep when it feeds decisions every week, not just at milestones.

Early concept evaluation before hardware spend

Concept studies gain speed when plant models and controllers can be paired within days. Teams sketch mechanisms, approximate masses, and try core motion tasks to see if the idea holds water. Kinematic and dynamic checks reveal joint limits, actuator sizing, and contact concerns before money moves. This clears space to focus on ideas that are feasible and worth deeper design.

Engineers often ask how precise early models must be. Start with simple, documented assumptions, then increase detail only where it changes an outcome. Record parameter ranges, note uncertain values, and confirm which decisions are sensitive to them. The point is not perfect prediction, it is high-quality guidance that avoids blind alleys.

Controller design with hardware-in-the-loop (HIL)

Control strategies benefit from a loop that moves from MIL to SIL, then to HIL as soon as timing questions arise. MIL checks structure and stability, SIL tests compiled code and interfaces, and HIL measures latencies, jitter, and I/O behaviour on target. Each step exposes a different class of issues that would be costly to chase later. You gain a clean record that links controller versions to performance under defined conditions.

HIL also gives a safe place to study fault handling. Teams can inject sensor freezes, drop packets, and power dips without risk to people or gear. Recovery logic and watchdogs get real tests against conditions that cannot be staged on a robot during early builds. That evidence builds confidence before the first motion sequence on a bench.

Perception and sensor modelling with synthetic data

Perception stacks rely on labelled data and stable calibration. A robotics simulator can produce photorealistic frames, depth maps, and point clouds with ground truth, so vision models learn exactly what each frame contains. You can study glare, motion blur, rain drops on optics, and mixed lighting in a controlled way. Calibrations can be checked against known geometry before any camera sees a fixture.

Teams should match noise profiles, field of view, and rolling or global shutter effects to intended hardware. Synthetic data helps you tune filters, test fusion timing, and stress detection thresholds. You also gain a repeatable set of scenes for regression, so model updates never surprise the rest of the stack. The result is a perception pipeline that holds up when lab lights go on.

Safety analysis and edge-case testing

Safety targets require evidence that rare combinations were considered and mitigated. Simulation lets you drive thousands of sequences that include outliers in motion, contact, and perception. You can test safe stop behaviour, interlock logic, and zone monitoring without exposing anyone to risk. Logs provide the traceability needed for internal standards and external reviews.

Edge cases are not guesswork when you can sweep parameters and seeds at scale. Teams pick distributions that match expected variation, then measure miss rates and recovery times. Results point to better thresholds, safer defaults, and clearer alarms. That work pays off the first time a field test faces conditions that were hard to stage in a lab.

Robotic simulation software shines whenever uncertainty is high, hardware is scarce, and timing assumptions matter. It supports decisions that keep designs within bounds, and it provides a safety net for code that is not production-ready. You gain a steady stream of evidence for reviews, partners, and test labs. The consistent cadence keeps research creative, and prototyping focused.

“Robotics simulation now supports high-fidelity physics, photorealistic sensors, and closed-loop control.”

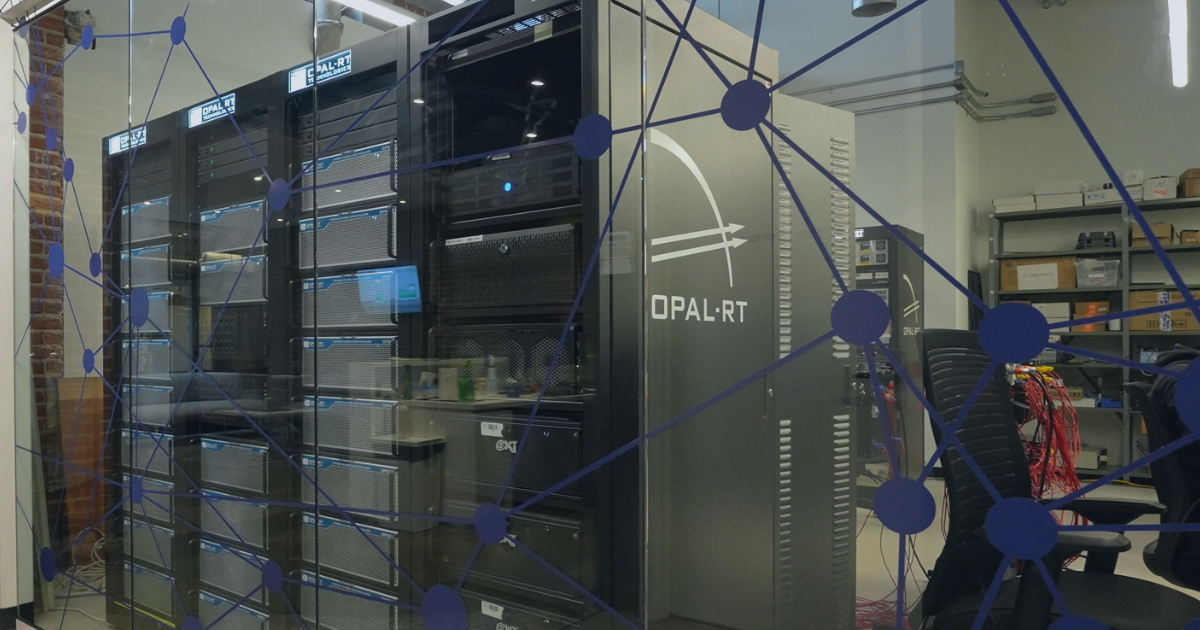

How robotics simulation software supports test automation workflows

Repeatable, automated tests shorten the path from commit to confidence. Robotics simulation software provides the hooks for headless runs, seeded scenarios, and clean metrics. Engineers can set acceptance gates that reflect physics, sensing, and timing, not just unit tests. The outcome is a steady flow of feedback that supports daily progress.

Continuous integration pipelines for robot code

Source control, build servers, and simulators work as a team when tests can run headless. Each change triggers scenes that exercise control loops, perception, and fault handling with stable seeds. Results are posted as metrics and plots, so regressions show up quickly and without debate. Failures link to logs and reproducing seeds, which shortens triage.

Pipeline stages should escalate depth as code moves from branch to main. Quick smoke tests validate basic loops in minutes, then a fuller set runs under more scenes and durations. Longer endurance jobs may run nightly to check memory use, timing drift, and rare faults. The net effect is confidence that grows with every merge.

Scenario libraries and regression suites

Good test automation relies on a library of scenes that reflect common tasks, stressors, and hazards. Libraries store geometry, materials, lighting, paths, and scripted events in a compact, reusable form. Each scene carries expected metrics and pass ranges that stand up to review. Engineers can add to the library when a field issue arises, then keep that case forever.

Regression depth improves when distributions and seeds are tracked. Teams pick a small, fast subset for pre-merge checks, then a richer set for scheduled runs. Reports call out coverage and any stale scenes that no longer reflect current goals. This keeps suites relevant, lean, and cost-aware.

Hardware-in-the-loop orchestration

Automation does not stop at virtual plants. Orchestrators can power targets, flash firmware, stage HIL connections, and run scripted sequences with strict timing. Sensors and actuators are emulated by the simulator, so every test runs the same way each time. Bench time gets used for high-value experiments, not manual resets.

Consistency matters once HIL enters the picture. Version control for plant models, I/O maps, and timing profiles keeps data trustworthy. Teams schedule maintenance windows, perform loopback checks, and store calibration records alongside test results. That discipline keeps automation stable even as systems grow.

Data logging and analytics for pass-fail criteria

Automated tests need clear metrics with thresholds that reflect physics and safety, not guesswork. Logging frameworks tag each run with versions, seeds, and conditions, then store series that cover motion, perception, and compute load. Analysis scripts compute error bands, settling times, contact forces, and end-to-end latency. Dashboards show trends, not just screenshots.

Pass-fail rules improve when tied to risk. Safety rules take priority, performance rules define comfort zones, and efficiency rules guide tuning. Teams adjust ranges with evidence, not opinion, and retire metrics that no longer matter. That focus keeps automation helpful, stable, and trustworthy.

Test automation stands tallest when simulation, code, and rig control act like one system. Pipelines reduce the gap between an idea and a result, which protects schedules and lowers stress. Scenario libraries create shared context across teams, suppliers, and reviewers. Robotics simulation software turns testing into a daily habit, not an occasional event.

What to look for in a robotics simulator for engineering teams

Choosing a robotics simulator is a technical decision with long-term impact. You want a tool that your team can trust under pressure, not just a pretty render. The right choice should fit existing toolchains, not force a restart. Strong fundamentals beat short-term novelty every time.

• Physics fidelity and determinism: Models should reproduce contact, friction, and compliance with stable results, and support deterministic replays. Without repeatability, debugging becomes guesswork.
• Sensor realism and calibration control: Cameras, lidar, radar, and encoders must offer noise, bias, and timing options that match hardware. You need to replicate both nominal and degraded behaviour for credible tests.
• Real-time performance and timing hooks: A good platform supports fixed-step timing, latency injection, and clock control for HIL and SIL. Tight loops reveal issues that batch-only tools hide.
• Openness and toolchain fit: Look for friendly APIs, script access, and support for standard formats, so models and tests move easily across teams. Closed stacks slow integration, handoffs, and reviews.
• Scale from laptop to cluster: Local runs help developers, and scalable runs help automation. Teams should shift the same scenes to more compute without rewriting code.
• Scenario authoring and data management: Scenes, seeds, assets, and logs need first-class storage with metadata and versioning. Strong data hygiene saves time during reviews and audits.
• Licensing and total cost: Budget predictability matters for labs, schools, and large programmes. Consider licence models, required add-ons, and the support your projects will actually use.
• Support, learning resources, and community signals: Documentation, examples, and responsive support shorten onboarding. You want proof that updates are steady, safe, and guided by engineering needs.

An effective robotics simulator will respect your time, your code, and your lab constraints. The best fit will match your control stack, modelling style, and safety requirements. Strong choices will keep options open for HIL, data generation, and automation. Careful selection today prevents migration pain later and safeguards your testing cadence.

Comparing the most popular robotics simulation software tools

Teams often weigh several categories of robotics simulation software that emphasise different strengths. Some tools focus on open workflows and community extensions, while others focus on premium physics or high-end visuals. A few specialise in factory cells and offline programming, and some centre on fast dynamics for research. The right fit depends on physics needs, timing constraints, and how much real-time execution matters.

You can use the table to match category traits with project needs without relying on brand names. Categories reflect common patterns seen across research labs and industrial teams. Evaluate each category against your required physics, sensor realism, data hooks, and budget. The comparison also calls out who tends to benefit from each type of platform.

“Test automation stands tallest when simulation, code, and rig control act like one system.”

Use cases of robotics simulation in aerospace, automotive, and power

Aerospace, automotive, and power systems teams share a need for safety, reliability, and clear evidence. Robotics simulation supports that need with physics you can explain and timing you can measure. Test depth grows when virtual scenarios cover rare events that would be risky or costly on hardware. Results help engineers make decisions with fewer delays and fewer surprises.

Aerospace flight-line and maintenance robotics

Aerospace programmes rely on careful procedures for inspection, fastening, and material handling. Simulation allows teams to stage access constraints, tool approach angles, and tolerance stacks around airframes. Ground vehicles and mobile platforms can be rehearsed around aircraft stands, stairs, and shared spaces. Safety rules, zone limits, and fail stops are tested in detail before any run near expensive assets.

Autonomy research benefits from synthetic sensing around airfields. Teams can study glare from aluminium surfaces, jet exhaust distortion, and complex occlusions with known ground truth. Recovery behaviours, watchdog timers, and handover controls can be verified under radio dropouts and sensor freezes. That work yields predictable field trials and fewer schedule resets.

Automotive production robotics and autonomy validation

Production lines seek cycle time gains without new risks to people or workpieces. Robotics simulation supports process layout, reach checks, and fixture design, then quantifies motion plans with energy and contact metrics. Offline programming helps reduce downtime, because sequences can be refined while lines run. HIL closes loops for controller timing and torque limits, so tuning survives contact with actual stations.

On-road autonomy studies need perception and control under varied lighting, surfaces, and traffic. Synthetic scenes produce ground-truth frames and point clouds that reflect camera lenses, lidar returns, and radar reflections. Long-horizon tests sweep seeds to expose off-nominal combinations that are rare outside. Those results guide thresholds, fallback actions, and safe-stop rules before road testing begins.

Power systems inspection and substation operations

Energy networks include substations, overhead lines, and generation sites that challenge access and safety. Robotics simulation lets engineers study motion near live equipment, clearances, and tool interactions under strict procedures. Teams can practise routes, handoffs, and failsafe responses without putting crews at risk. Sensor models help tune detection of arcing, corrosion, and insulation damage with known references.

Grid operations require careful timing and communication. Simulated events allow teams to see how robots handle switching sequences, radio loss, or weather effects without leaving a lab. HIL connects controllers to I/O that matches site interfaces, so timing is measured, not assumed. That groundwork shortens commissioning and supports clear evidentiary records.

Academic research and teaching

Faculty and students benefit from accessible tools that support clean experiments and clear grading. Robotics simulation gives classrooms safe, repeatable labs that run on common hardware. Assignments can cover kinematics, dynamics, sensing, and control with shared scenes and seeds. Results allow fair comparison across cohorts, terms, and campuses.

Research groups gain from open models, scriptability, and exportable logs. Synthetic data supports perception studies without privacy issues, and HIL ties theory to targets in a controlled setting. Cross-lab sharing improves when models, assets, and scenes follow clear versioning. That discipline strengthens publications and supports future replication.

Across aerospace, automotive, and power, simulation shortens schedules, strengthens safety, and reduces scrap. Teams produce evidence that satisfies internal and external standards, which protects budgets and plans. Data flows from virtual scenes to benches and then to pilots, so insight grows with each stage. Robotics simulation turns complex tasks into measured steps.

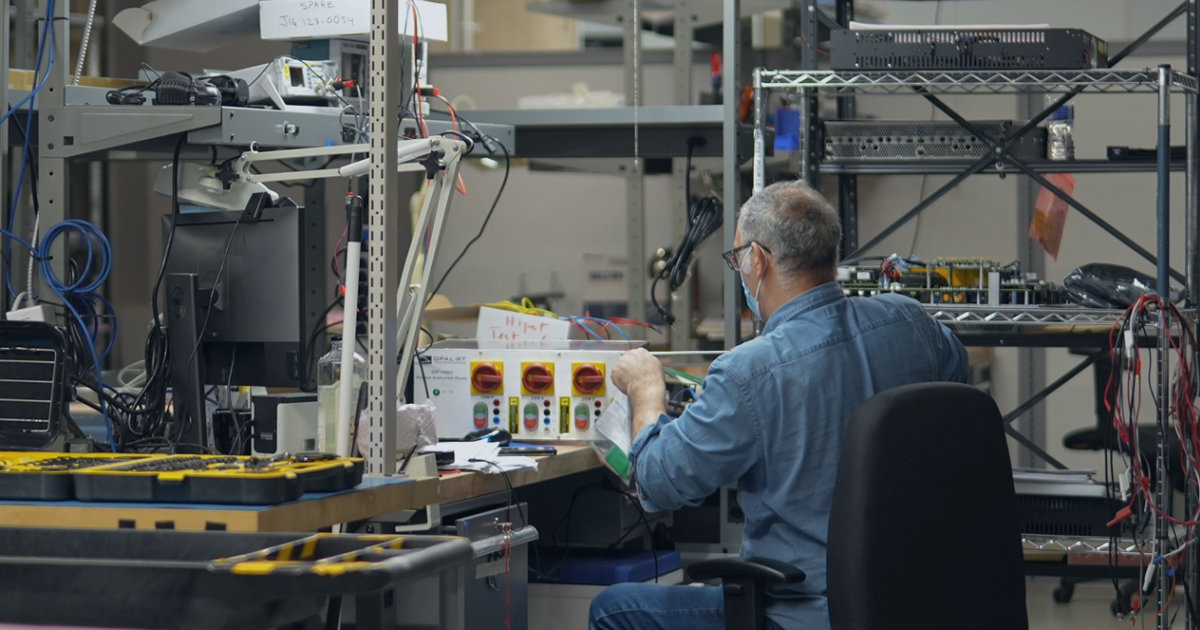

Common simulation challenges and how to avoid them in lab testing

Even mature teams hit snags when virtual tests meet hardware. Most issues trace back to model assumptions, timing gaps, or weak data hygiene. Good practices remove those soft spots before they become surprises. Engineers can avoid rework with a few disciplined habits.

• Over-trusting default physics: Defaults rarely match your materials, gear ratios, or friction. Calibrate models against measured data early, then document the parameters and associated error.
• Timing drift between loops: Control loops may run at different rates than sensors or physics. Use fixed-step settings, profile latencies, and record clocks during every run.
• Poor sensor modelling: Clean signals hide problems that will appear the first day on a bench. Add realistic noise, bias, and timing skew, then verify filters and thresholds under those conditions.
• Weak scenario variety: A handful of happy paths will not expose fragile logic. Build small, modular scenes and sweep seeds, lighting, surfaces, and contact properties on a schedule.
• Gaps in data logging and versioning: Missing seeds and versions make failures hard to reproduce. Store configurations, random seeds, and asset hashes with results, and treat logs as artefacts, not trash.
• Unrealistic actuator and gearbox models: Ignoring backlash, saturation, and compliance invites surprises. Include these effects, then validate against motor maps and torque limits.
• Late introduction of HIL: Postponing HIL hides jitter, queues, and I/O quirks until the most expensive phase. Bring targets into the loop as soon as control timing matters, and keep that path under version control.

A little discipline in these areas protects test time, budgets, and team energy. Good logs turn into faster triage, and better physics turns into credible forecasts. Consistent timing settings keep control code honest under load. A few habits today prevent long nights during commissioning.

How OPAL-RT supports robotics simulation from lab to deployment

OPAL-RT helps engineering teams link high-fidelity models with real-time execution so research, prototyping, and validation share one path. Our real-time digital simulators pair CPU and FPGA resources to run complex plants with precise timing, and our software platform connects those plants to common modelling tools. Teams move from MIL and SIL to HIL using the same assets, which protects earlier investments and preserves test intent. Open interfaces let you script scenes, run headless jobs in your automation stack, and collect logs with clean metadata.

Practical benefits show up in everyday challenges. Control engineers measure latency and jitter on target hardware while the simulator drives repeatable I/O, so timing is a measured value, not a hope. Perception teams generate sensor signals that match expected noise and bias, then compare algorithm versions under seeded scenes for honest regression. Lab managers automate power-up, flashing, and resets across benches, which reduces manual effort and protects rigs from misuse. OPAL-RT brings a credible, real-time foundation to robotics simulation that teams can trust for planning, review, and field transfer.
