Power hardware‑in‑the‑loop explained for simulation and validation engineers

Power hardware‑in‑the‑loop gives you safe, hands‑on insight into how your controller behaves under high‑energy conditions. Hardware‑in‑the‑loop (HIL) connects your embedded controller to a real‑time digital simulator, while power HIL adds a controlled power interface that moves real current and voltage. That mix lets you push devices to limits, reproduce edge cases, and learn from faults without destroying prototypes. Teams that adopt this approach shorten iterations, raise test coverage, and step into integration reviews with far more evidence.

Senior simulation engineers, HIL specialists, and power electronics designers use it to close the loop early, measure what matters, and reduce uncertainty before parts hit the bench. You get faithful plant behaviour, real switching artefacts, and hardware protection that keeps the lab safe. Managers see fewer schedule slips, fewer damaged components, and clearer evidence for signoff. The goal is consistent results that do not slow the team, with test steps you can repeat and trust.

What power hardware-in-the-loop means for simulation engineers

Power hardware‑in‑the‑loop builds on controller HIL by adding a power stage that exchanges real energy with your controller through a safe interface. A real‑time simulator computes the plant at microsecond steps, a power amplifier or power converter reproduces the waveforms, and current or voltage flows through sensors just as it would on the bench. The controller reads those sensors, closes the control loop, and drives pulse width modulation, gate signals, or torque commands like it would in a prototype.

“Because the power is constrained and monitored, you can test severe transients without risking people, space, or equipment.”

Compared with purely virtual runs, power hardware‑in‑the‑loop exposes timing paths, quantization, and measurement errors that only show up when energy moves. It also brings in parasitics, cable lengths, converter dead time, and switching ripple that shape controller performance. For simulation engineers who live in models, this method turns assumptions into measurements you can store, compare, and use to improve models. You keep the repeatability of software, yet gain the confidence that comes from seeing the power stage respond to your code.

Why hardware-in-the-loop power electronics testing improves system validation

Hardware in the loop power electronics testing tightens the link between models, firmware, and power stages. It gives you accurate stimulus, dependable measurements, and a safe way to study limit cases. The approach brings earlier alignment across modelling, control, and protection teams, which cuts rework later. The result is stronger evidence for system validation, clear performance thresholds, and consistent regression runs.

High-fidelity stimulus and measurement

Power HIL feeds your controller with voltage and current that match the timing and shape of intended plants. Four‑quadrant amplifiers, grid emulators, or converter interfaces reproduce sine waves, switching ripple, and fault transients at realistic amplitudes. The simulator solves electromagnetic transients with microsecond steps, then drives the power stage so that your sensors see the same signals they would in a prototype. This closes the loop on analogue front ends, anti‑alias filters, and quantization effects that pure software hides.

Measurement fidelity matters as much as the stimulus. Calibrated probes, low‑noise conditioning, and time‑aligned sampling let you trust the data that guide model updates. You can trace a control miss to measurement saturation, converter delay, or plant stiffness instead of guessing. That clarity helps teams agree on defects, fixes, and acceptance criteria.

Closed-loop controller stress under safe limits

Controllers face harsh cases during power‑up, shutdown, and load steps. Power HIL lets you reproduce those moments as often as needed, while current limits and fast interlocks protect equipment. You can push start‑up sequences, brownouts, and sensor faults to learn how the firmware reacts across many builds. The result is a data set that shows margins, not just pass or fail.

Gate‑drive timing, dead time compensation, and loop gains can be swept across temperature, voltage, and load. Repeatable sequences reveal where integrators wind up, where current controllers saturate, and where phase lag erodes stability. Those insights guide adjustments with confidence, not guesswork. Engineers leave with fewer surprises during later bench work.

Protection and fault coverage without damage

Power HIL supports faults you would avoid with physical prototypes. You can trigger short circuits, open phases, ground faults, and grid events while the power interface clamps energy to safe levels. That range of events builds trust in your protection logic, from desaturation trips to overvoltage monitors. You can also verify recovery behaviour, such as soft restarts and controlled re‑synchronization.

Fault campaigns benefit from automation. Scripts restart tests, randomize parameters, and log outcomes with time tags that align to firmware versions. This repeatability shortens investigations when bugs reappear after a refactor. Teams save parts, hours, and test space.

Repeatability and traceability for audits

System validation is about evidence, not anecdotes. Power HIL produces run‑to‑run data sets that line up with model versions, parameter files, and firmware checksums. That linkage makes root cause analysis faster when behaviour drifts over time. It also supports quality reviews where you need to show what changed, why it changed, and how results compare.

Traceable workflows also help with certification. Engineers can replay stress tests under the same timing, the same fault seeds, and the same thresholds. Differences in outcomes point straight to code, models, or hardware. Reviewers see consistent procedures, clear logs, and tidy summaries.

Throughput for certification and regression

Once scenarios are scripted, power HIL jobs run day or night on schedules that fit the lab. Automatic reset, self‑checks, and health monitors keep execution smooth without constant supervision. That throughput turns long checklists into predictable calendars that managers can trust. Evidence arrives earlier, test queues shrink, and projects move with fewer delays.

Throughput is only useful when fidelity stays high. Closed‑loop checks compare reference waveforms to measured signals and flag drift before it spoils results. Teams see alerts when sensors saturate, amplifiers clip, or time sync slips. That feedback preserves confidence across long campaigns.

Power‑focused HIL strengthens validation by linking real energy flow to repeatable procedures. Test depth rises without risking equipment, and outcomes align better with field use. Teams get clear margins, faster root cause analysis, and smoother handoffs to integration. The end result is validation evidence that stands up to scrutiny and supports confident release.

“You can trigger short circuits, open phases, ground faults, and grid events while the power interface clamps energy to safe levels.”

How power hardware-in-the-loop supports earlier fault identification

Finding faults early depends on provoking the right stimuli at the right time. Power hardware‑in‑the‑loop makes that possible by mixing precise timing with real current and voltage limits. You can flip fault seeds, replay waveform glitches, and randomize loads, then watch how control loops react. Patterns appear that point to a missing filter, a quantization step, or an off‑by‑one bug in a fixed‑point path.

Early insight also comes from visibility into transients that software alone blurs. Sub‑cycle events like cross‑conduction, commutation overlap, and dead time errors change currents in ways that only show up when energy flows. Power HIL exposes those edges, then lets you test remedies such as snubbers, different sampling phases, or revised limits. The feedback you collect feeds back into models, firmware changes, and test plans.

Comparing software-only simulation with power hardware-in-the-loop methods

The main difference between software‑only simulation and power hardware‑in‑the‑loop methods is the presence of actual power flow through a controlled interface. Software runs compute plants and controllers in one process or across networked nodes, while power hardware in the loop closes the loop through sensors, converters, and amplifiers. That change exposes timing, saturation, and parasitics that virtual plants often miss. It also brings safety layers and current limits that let you study severe events without breaking parts.

Software‑only runs still play a major role for early modelling, algorithm proofs, and wide parameter sweeps. Power HIL shines when firmware, sensors, and protection interact, because the controller sees realistic signals and must meet strict timing. Many teams pair both methods, moving from functional models to controller HIL, then to power HIL as designs mature. Used thoughtfully, the combination cuts risk, keeps schedules predictable, and improves coverage.

Common power hardware-in-the-loop use cases in energy and aerospace sectors

Energy and aerospace programmes face tight margins, strict safety rules, and complex power interactions. Power hardware‑in‑the‑loop provides a safe path to exercise those interactions across many operating points. Engineers can replay grid events, bus faults, and load changes while keeping people and equipment safe. Teams gain the freedom to probe edge cases, confirm protection thresholds, and rehearse recovery logic.

• Grid‑tied inverter fault ride‑through and grid‑code verification: Test voltage dips, phase jumps, and frequency excursions with realistic impedances. Validate controller behaviour, current limits, and restart strategies before site commissioning.
• Battery energy storage system controls and protection: Exercise charge, discharge, and standby states across temperature, state‑of‑charge, and calendar age. Confirm balancing logic, direct current (DC) bus regulation, and fault handling under short circuits and opens.
• Microgrid transitions and protection coordination: Prove seamless transfer between islanded and grid‑connected modes with varying inertia assumptions. Assess relay settings, fast load shedding, and black‑start sequences without disturbing a facility.
• Wind turbine converter and pitch coordination under grid events: Inject asymmetrical faults, flicker, and harmonics while the converter tracks power and reactive targets. Measure tower shadow effects, converter limits, and bus stability under gusts.
• Aircraft electrical power system validation: Emulate alternating current (AC) and direct current (DC) buses, starter‑generator behaviour, and power distribution unit logic. Verify load shedding, bus reconfiguration, and emergency power cases across flight phases.
• Spacecraft power conditioning and battery management: Test solar array regulator controls, battery charge safety, and load prioritization across eclipse transitions. Rehearse contingency cases with safe energy limits, repeatable timing, and thorough logging.

These scenarios reward high‑fidelity stimulus, strong protection, and careful logging. Power HIL lets teams stage events that would be too risky or expensive to attempt with full prototypes. The payoff is clearer margins, fewer field issues, and quicker readiness for site tests. Energy and aerospace groups gain confidence that designs can face harsh conditions without surprise.

How power hardware-in-the-loop testing reduces lab risk and downtime

Unplanned outages in a test lab tend to come from damaged hardware, unclear procedures, or rushed setup. Power HIL reduces those hazards with current limits, fast trips, and automation that resets equipment safely. Repeatable fixtures keep wiring consistent, and scripted sequences remove guesswork from start‑up, fault insertion, and shutdown. The result is fewer damaged parts, fewer burnt connectors, and fewer late nights replacing components.

Safety improves when energy limits are enforced in hardware rather than policy. Interlocks, emergency stops, and watchdogs act faster than human reflexes, and they do the same thing every time. Technicians trust a rig that is consistent, documented, and instrumented. Managers trust downtime reports that show causes, fixes, and prevention steps.

Tools and components needed to implement power hardware-in-the-loop

Building a reliable power HIL bench requires a balanced set of hardware and software. Each piece should protect people, capture accurate data, and fit cleanly into existing modelling flows. Choices at this stage affect fidelity, capacity, and long‑term upkeep. Attention to time sync, grounding, and thermal limits pays off in stable, repeatable testing.

• Real‑time digital simulator: A CPU and FPGA platform computes plant models with deterministic steps, handles input and output (I/O), and logs results. Look for microsecond‑class steps, low jitter, and support for block‑diagram modelling tools, Functional Mock‑up Unit (FMU) import, and Python scripting.
• Power interface stage or four‑quadrant amplifier: This unit reproduces AC and DC waveforms, sinks energy during transients, and imposes current or voltage limits. Specifications that matter include bandwidth, slew rate, and fault clearing time.
• Sensing and signal conditioning: Isolated current and voltage sensors, anti‑alias filters, and precision references feed the controller with trustworthy signals. Good grounding practice and careful cable routing stop noise before it spoils data.
• Controller I/O and communications: Digital I/O, analogue I/O, and protocol interfaces connect the controller to the rig. Requirements vary, so check timing, electrical levels, and supported protocols such as Controller Area Network (CAN), Ethernet, or serial links.
• Protection and safety architecture: Hardware interlocks, emergency stop loops, and watchdogs enforce limits independent of software. Clear light‑stack indicators and documented reset procedures help operators work with confidence.
• Fault insertion and event sequencing: Programmable short circuits, open circuits, contactor actions, and grid events let you stress test safely. Scripts co‑ordinate timing so that measurements line up with controller logs.
• Data acquisition, time sync, and logging: High‑rate sampling, synchronized clocks, and lossless formats keep evidence intact. Consider Global Positioning System (GPS) disciplined or Precision Time Protocol (PTP) timing where multi‑rack rigs must stay aligned.
• Model and test automation software: Test authoring, parameter sweeps, and report generation turn one‑off sessions into repeatable campaigns. Open application programming interfaces (APIs) help teams connect version control, issue trackers, and data lakes.

Teams that pick balanced components spend less time chasing noise and resets. Each element plays a role in fidelity, safety, and throughput. If one link is weak, results drift, and trust falls. A thoughtful kit protects your people, your schedule, and your budget.

Questions to ask before selecting power HIL test solutions

The right fit starts with clear requirements, not glossy datasheets. A few targeted questions expose gaps that could cost time and parts later. Answers should be specific, measurable, and tied to risks you care about. Keep the focus on evidence, not promises.

• What plant dynamics must be captured, and at what latency? Define the highest electrical frequency, switching harmonics, and closed‑loop bandwidths, then choose step sizes and I/O timing that meet those needs.
• What voltage, current, and power levels need to be exercised? Specify continuous and peak values, allowable energy during faults, and how the rig will dissipate or return that energy.
• Which interfaces must be supported on day one, and which will arrive later? List required analogue channels, digital I/O, and protocols, and verify that timing and electrical levels match your controller.
• How will measurement accuracy be verified over time? Ask about calibration intervals, reference checks, and how time sync is maintained across racks.
• What safety measures are implemented in hardware, and how are they tested? Look for interlock coverage, emergency stop paths, trip response times, and proof that limits act independently of software.
• How does the platform grow with project scope? Check slot availability, model partitioning across CPUs or FPGAs, and licensing that does not block additional benches.
• What support, training, and examples shorten time to first test? Confirm access to application notes, scripts, and responsive experts who can speak to your use case.

Clear answers at the start save months later. The best vendors speak plainly about limits, tradeoffs, and risks. Teams can then plan around constraints, or budget for the upgrades that matter. Confidence rises when expectations and evidence line up.

How OPAL-RT helps you validate power systems with confidence

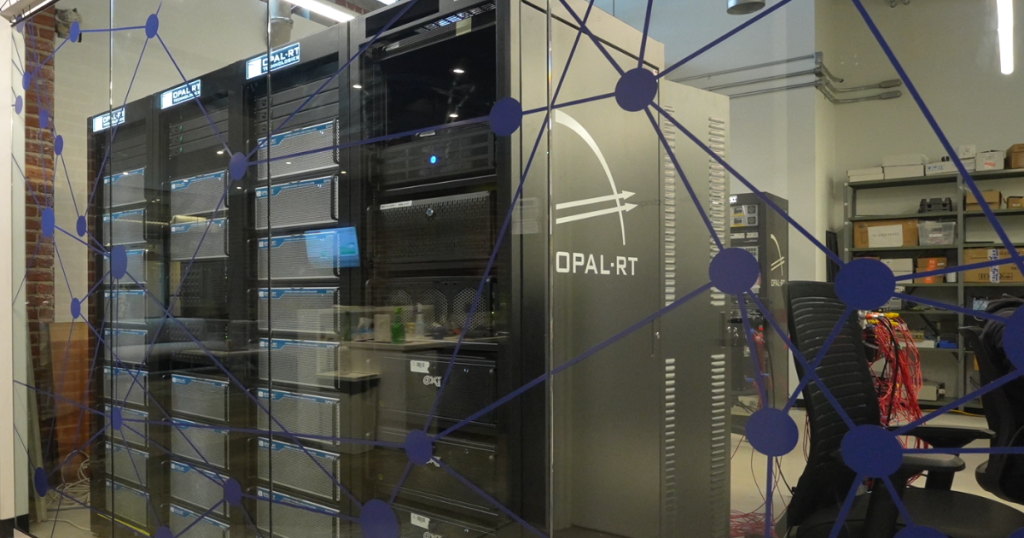

OPAL‑RT provides real‑time digital simulators, model libraries, and software that fit power HIL tasks without locking you into a single toolchain. Engineers can bring block‑diagram models, FMUs, or code‑generated controllers, then run them with deterministic timing and tight I/O. Power interfaces, protection options, and time sync features are designed to keep people safe while maintaining fidelity. Teams often start small with a single bench, then scale to larger power levels and multi‑rack rigs as needs grow. The focus stays on clean integration, dependable runs, and evidence you can present with confidence.

With eHS and ARTEMiS for electromagnetic transients, HYPERSIM for grid‑level studies, and RT‑LAB for orchestration, OPAL‑RT covers modelling depth and test automation in one ecosystem. You can automate long campaigns, align waveforms to firmware versions, and generate reports that stand up to peer review. Our engineers support methodical setup, controlled faulting, and safety reviews that match the way your lab works. The closing message is simple, clear, and practical: OPAL‑RT is a trusted partner for power HIL, and we stand behind results that teams can rely on.
