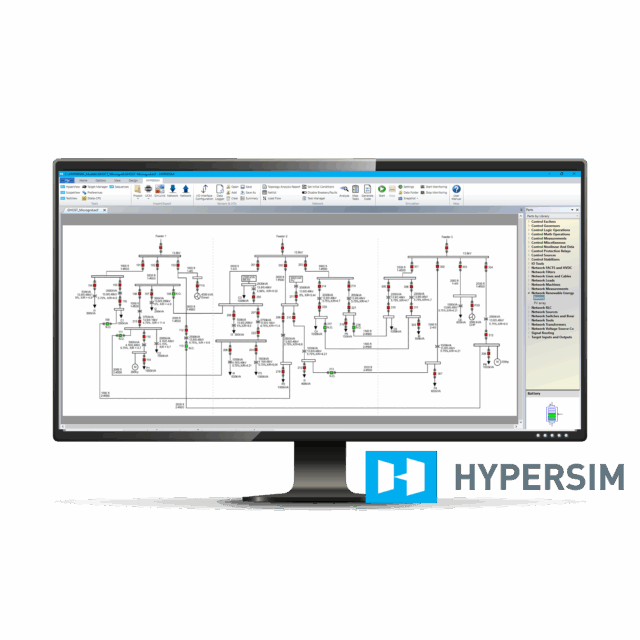

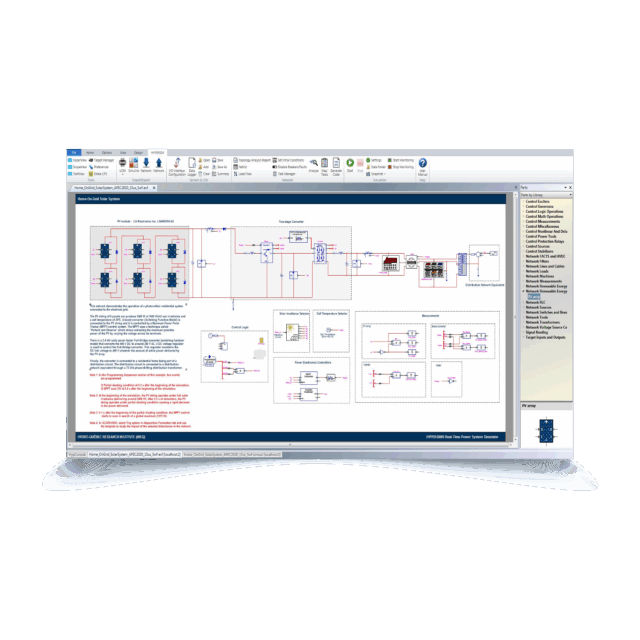

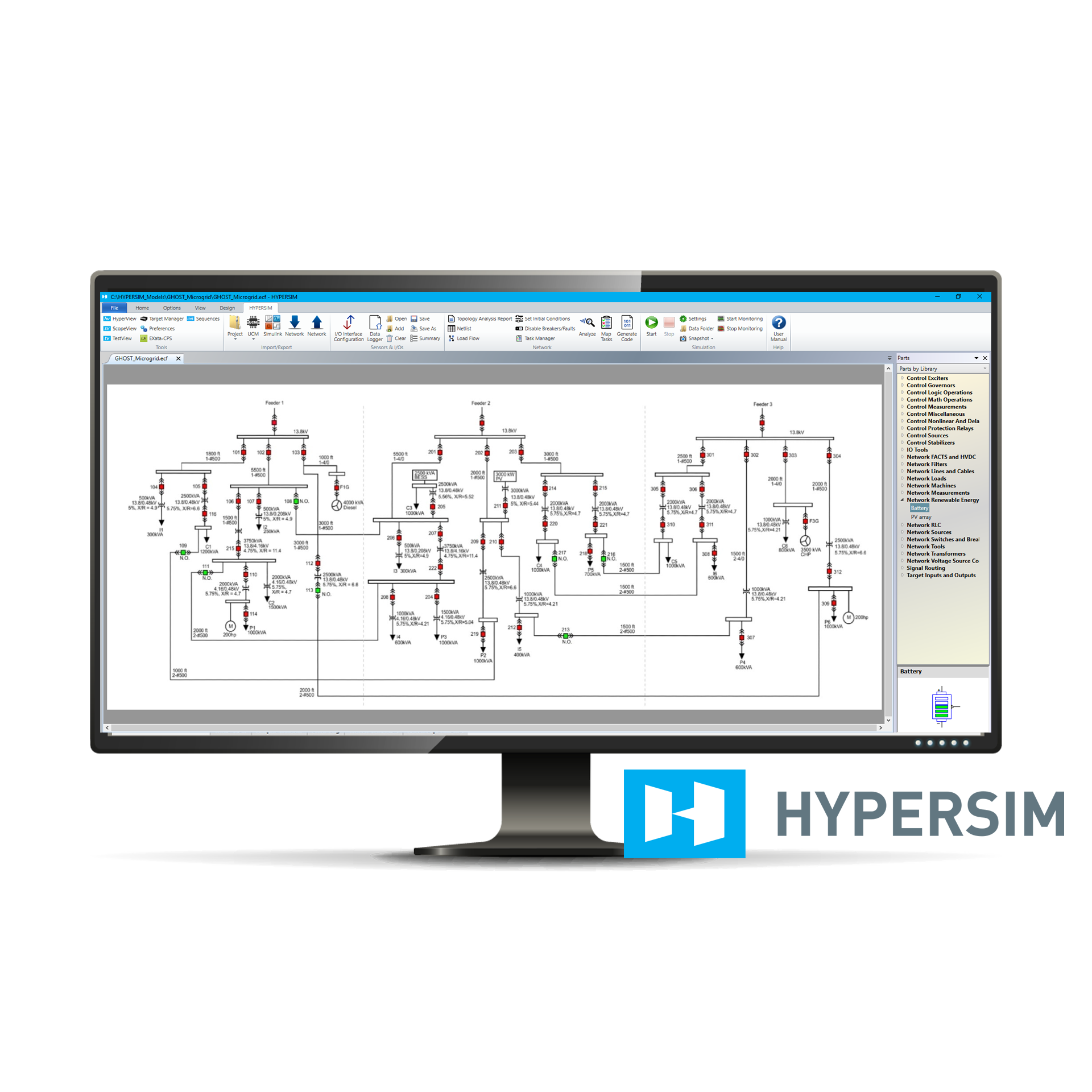

HYPERSIM
HYPERSIM is the world’s most advanced real-time simulation platform for power systems, combining hardware-in-the-loop (HIL), software-in-the-loop (SIL), and offline simulation acceleration in a single, high-performance environment. As a leading power system real time simulator, our platform provides a robust environment for accurate power system simulation and power systems testing. Built by engineers for engineers, it empowers users to model, test, and validate complex electrical grids and inverter-based resource (IBR) integration with unmatched speed and precision.
Designed for system operators, asset owners, engineering firms, manufacturers, and researchers, HYPERSIM is also ideal for use in a power system simulation lab, replicating real-world conditions to de-risk new grid configurations and control strategies through flexible “what-if” scenarios—supporting everything from early design and commissioning to large-scale stability studies.

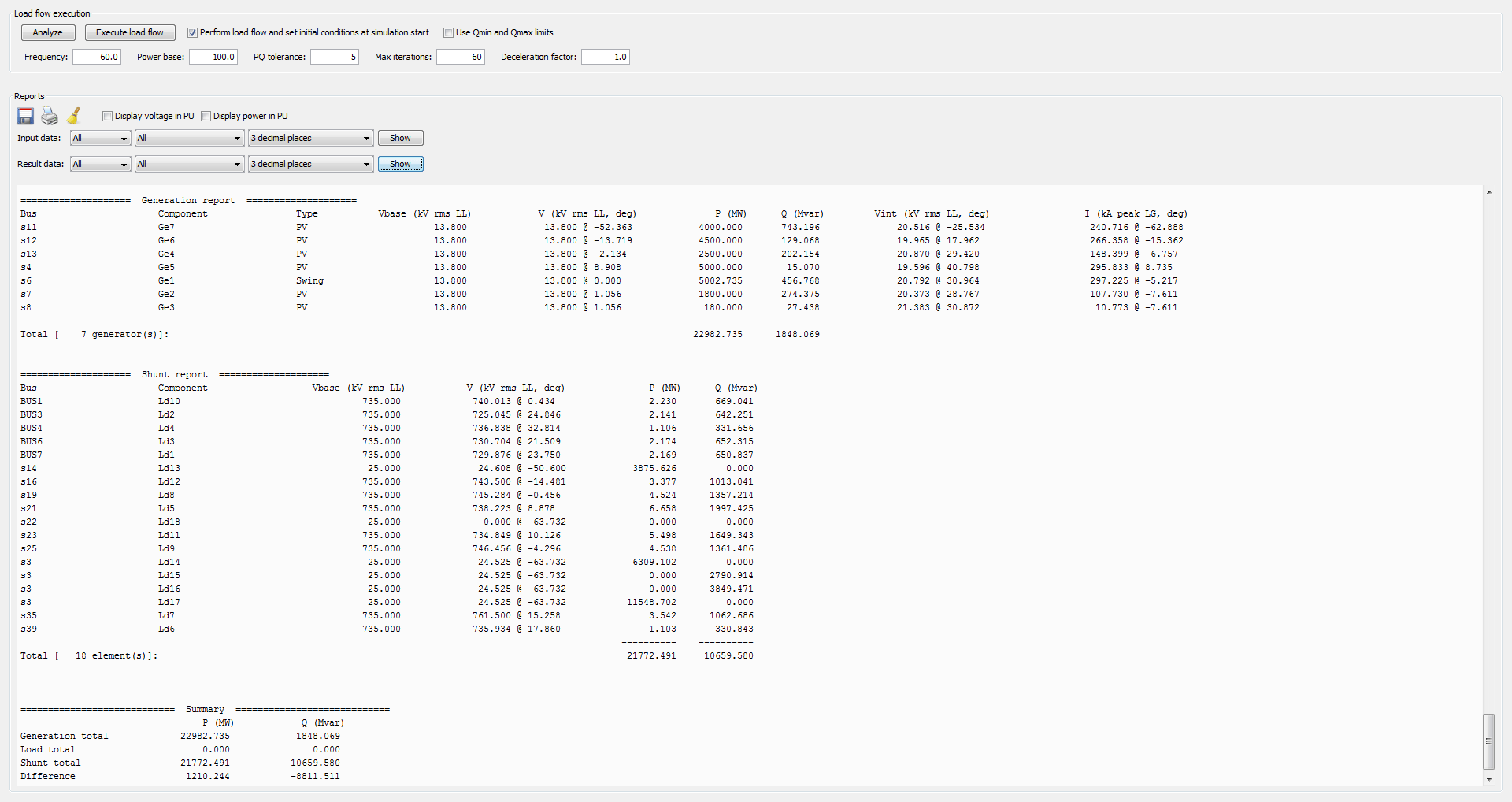

With seamless import from industry-standard tools, fast load-flow-based initialization, automated parallel processing, and a wide array of testing options, HYPERSIM accelerates innovation and enables grid planners and operators to boost system reliability, resilience, and performance—from early design to real-time operation.
Specifications overview
Specification overview
| Application domain | Simulation environment purpose-built for power grids—ideal for control design and validation, system integration, and large-scale stability studies |
| Simulation modes | Hardware-in-the-loop (HIL), power hardware-in-the-loop (PHIL), software-in-the-loop (SIL), and high-speed simulation acceleration |
| Integration | Compatible with PSCAD, EMTP, PSS®E, PowerFactory, GridLAB-D, Simulink®, FMU, and both static and dynamic libraries |
| Connectivity | Supports a broad range of analog/digital I/Os and industry protocols (IEC 61850, DNP3, Modbus, IEC 60870, C37.118, CAN, EtherCAT, etc.), and specialized interfaces including Resolver, LVDT, RVDT, SPI, and SFP |

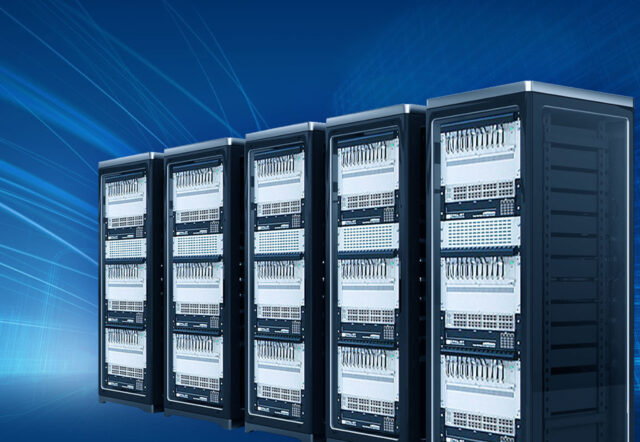

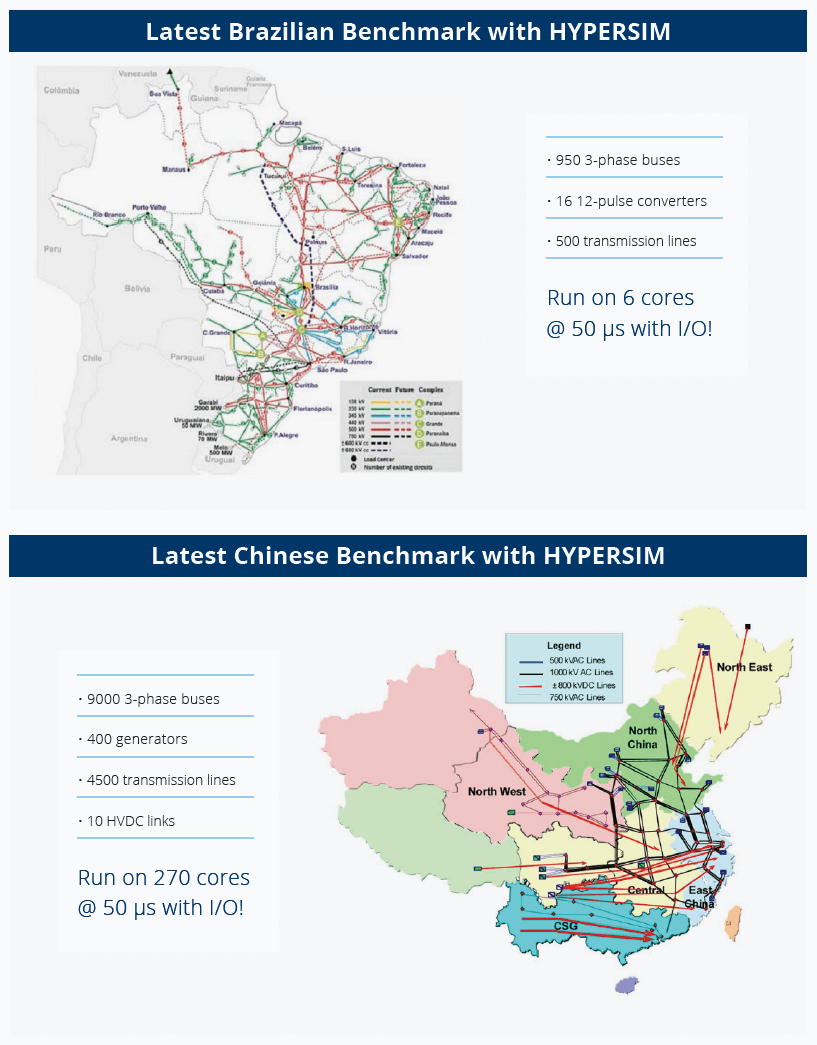

| Scalability | Runs on single workstations to multi-rack and cloud-based simulators—scaling from small IBR plant models to full-grid simulations with thousands of 3-phase nodes and I/Os, and capable of interfacing multiple Devices Under Test (DUT) simultaneously |
| Performance | High-speed EMT parallel execution on multicore CPUs (time steps: 5–100 µs); RMS simulation via ePHASORSIM (time steps: 1–10 ms); FPGA-based EMT simulation via eHS (time steps: 90 ns–4 µs) |

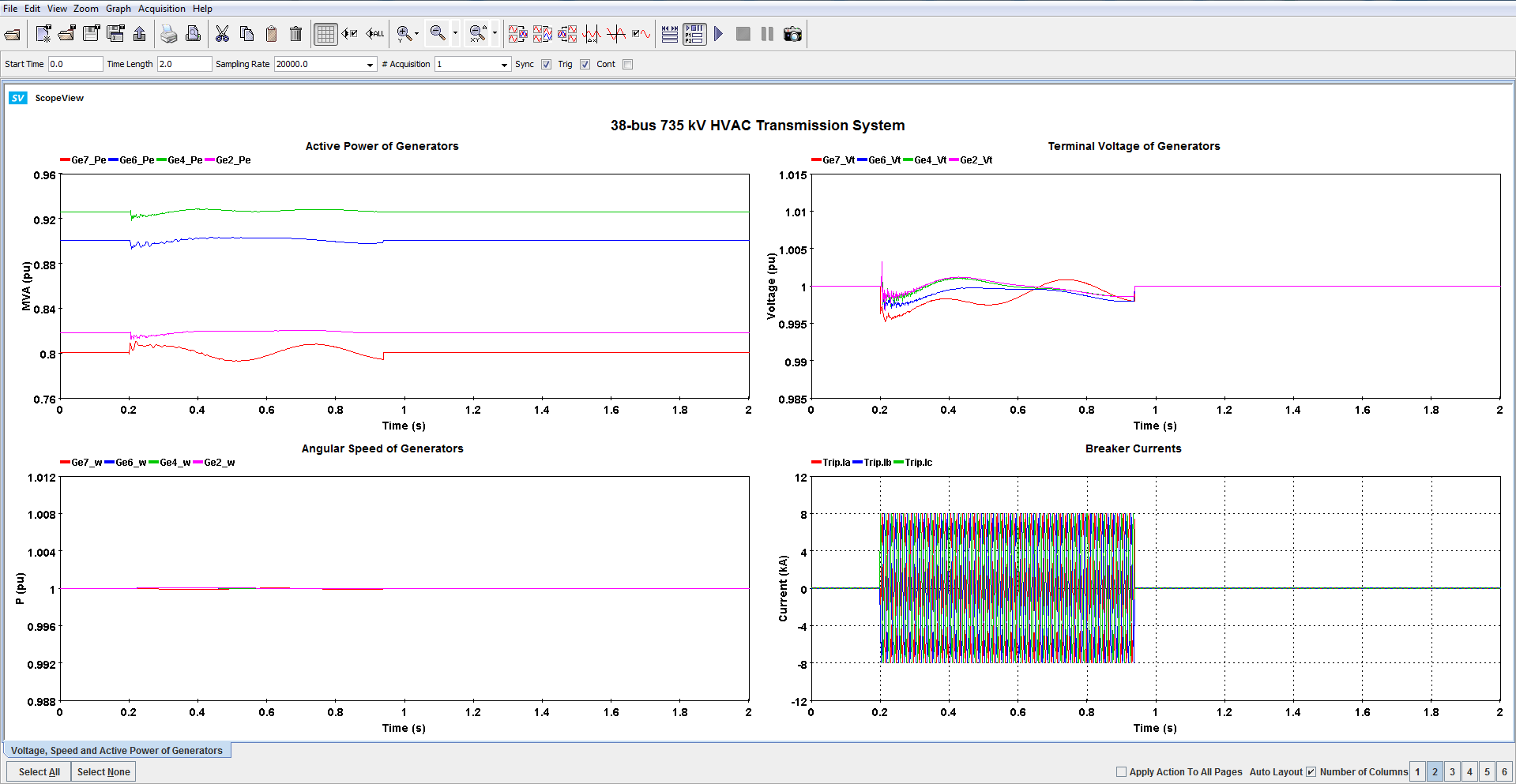

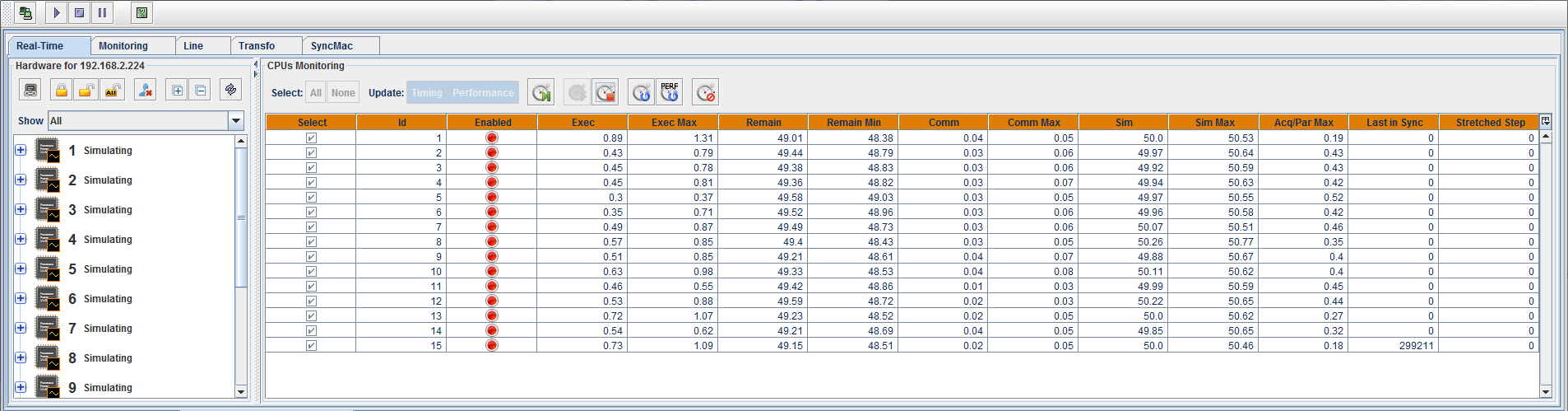

| Visualization | Real-time data monitoring, logging, and analysis—without impacting simulation performance. Customizable dashboards with an intuitive drag-and-drop interface. |

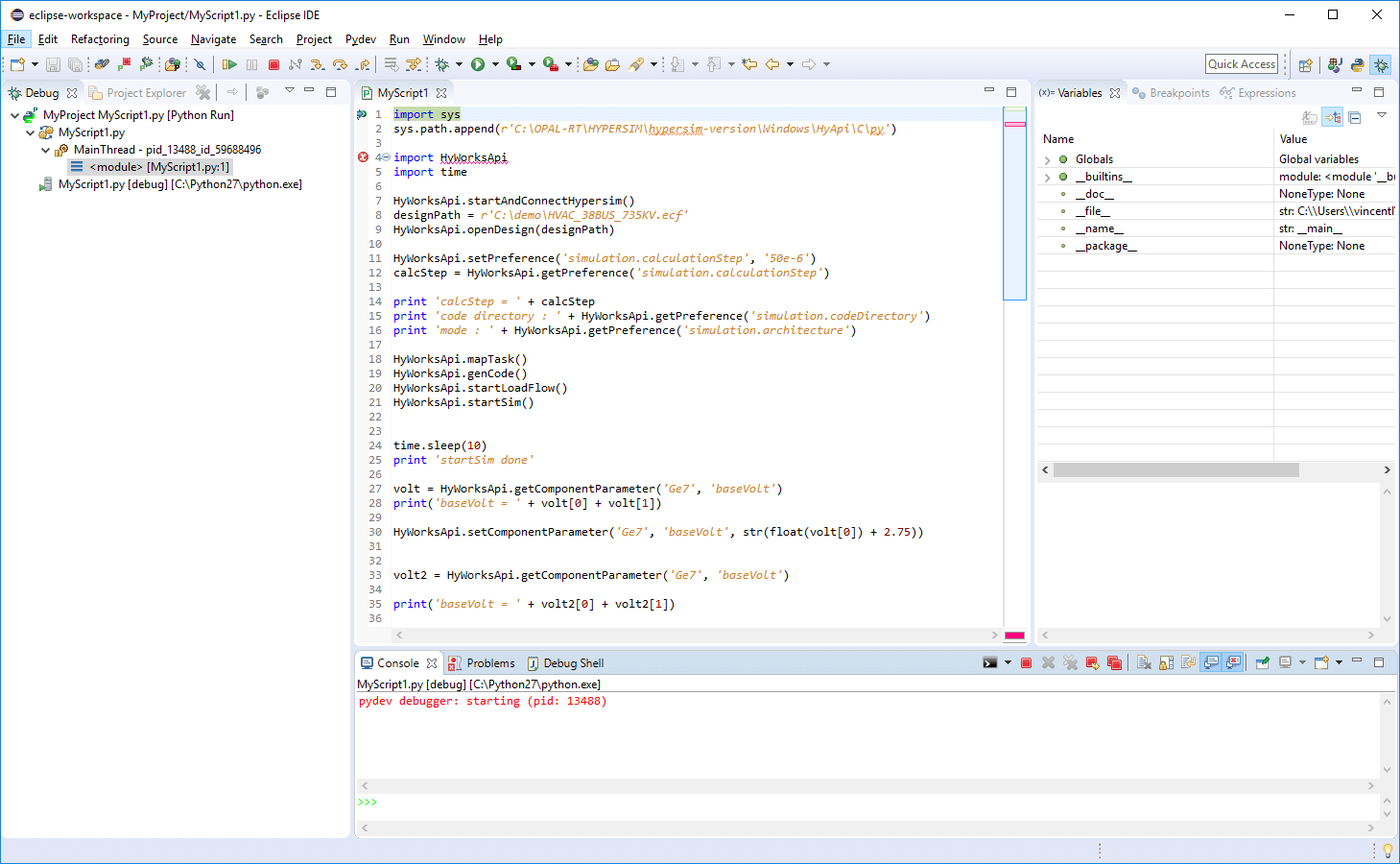

| Automation | Built-in support for test scripting and automation using Python, TestView, C/C++, and IEEE 60255-compliant test sequences |
They trust us
Features
Discover the power of HYPERSIM’s features
Select the tabs below to navigate and learn more about HYPERSIM’s features.
Testimonials
Trusted by industry leaders
Explore how leading institutions and organizations leverage HYPERSIM to achieve remarkable results.
We at R&D Nester have been very satisfied not only with their software and hardware, but also with their support. We have been using OPAL-RT real-time solution for many years, and their knowledge, responsiveness and commitment are very professional.
Nuno de Souza e Silva
Managing Director and Executive Board Member at R&D Nester
Our Wide Area Monitoring, Protection and Control System represents a significant leap forward in grid management. By integrating real-time simulation with precise phasor measurements and reliable control, we’ve created a robust platform that enhances grid stability, optimizes performance, and drives innovation in power systems. This setup not only meets the demands of today’s grid but also lays the foundation for future advancements.
Dr. Shailendra Singh
Associate Researcher at LIST
Toolboxes
Unleash more with compatible toolboxes
Ultra-Fast EMT Simulation and HIL Testing
eHS
Advanced FPGA technology for high-fidelity, low-latency, power systems and power electronics simulation, enabling HIL testing across energy, automotive, aerospace, and industrial applications.
RMS Simulation and HIL Testing
ePHASORSIM
Simulate large-scale transmission and distribution networks in real time, test WAMPAC schemes, and train operators, using models from various sources such as PSSE, PowerFactory, or CYME.
Communication Network Co-simulation
EXata CPS
High-fidelity and scalable communication network emulation for cyber-physical co-simulation, enabling HIL/SIL integration for cybersecurity testing of critical infrastructure.
Applications
Advancing your testing with HYPERSIM
HYPERSIM supports a broad range of modern power system applications, from renewable energy and energy storage systems (ESS) to multi-terminal HVDC, distribution automation, substation automation, protection relay testing, and WAMPAC. It also enables emerging domains such as EV charging infrastructure, V2X/V2G, and data center integration, while addressing advanced use cases like cyber-physical simulation. With real-time digital twins and powerful HIL capabilities, HYPERSIM empowers grid operators, manufacturers, and research institutions to accelerate innovation, ensure system reliability, and validate complex control and protection strategies.
Microgrids & renewable energy
We are the real-time simulation engine behind system operators and OEMs working toward 100% renewable microgrids—on islands, campuses, and military bases alike.

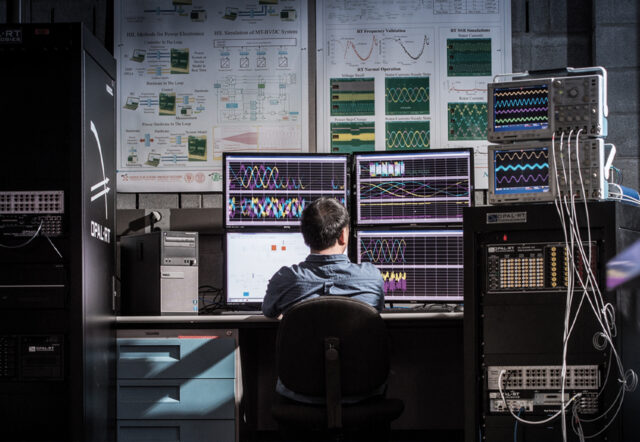

Distribution automation
From ADMS and DERMS to FLISR and Volt/VAR controllers, we enable real-time testing of the brains behind tomorrow’s self-healing, DER-rich distribution grids.
Digitalization & cybersecurity
From IEC 61850 digital substations to NERC CIP-ready control systems, we are the only cyber-physical simulation platform for validating secure, digital power networks.
Wide area monitoring, protection, and control
We enable real-time validation of wide-area control systems—where synchrophasor data, protection logic, and control center decisions must align in milliseconds.
Modular multilevel converters

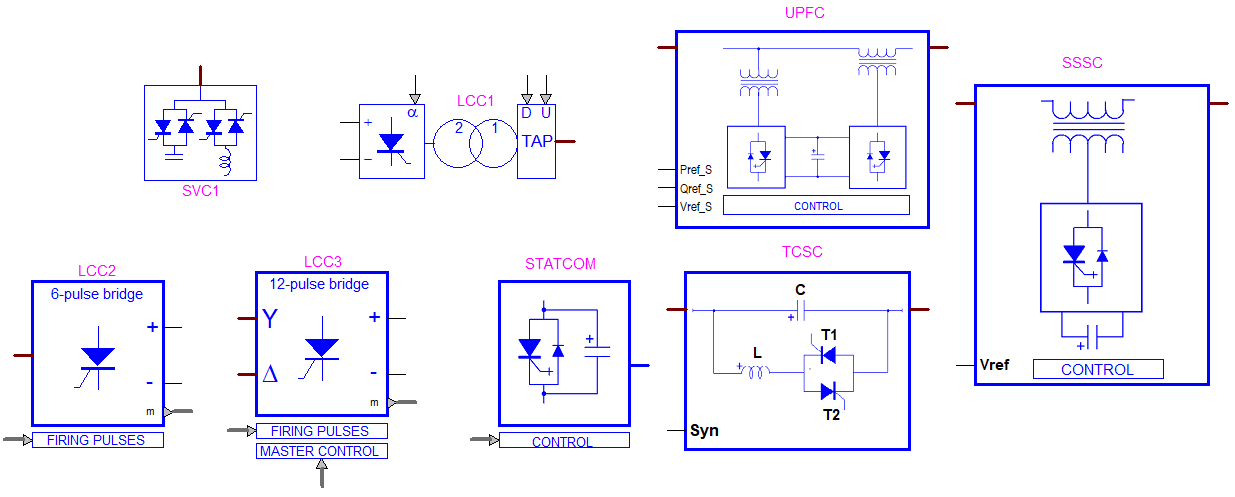

Leading HVDC and FACTS innovators use OPAL-RT to design, test, and deploy next-gen MMC-based systems with confidence—under real-time stress conditions.
Protection
Before protection relays go live in mission-critical environments, utilities and OEMs put them through closed-loop, real-time HIL tests powered by OPAL-RT.

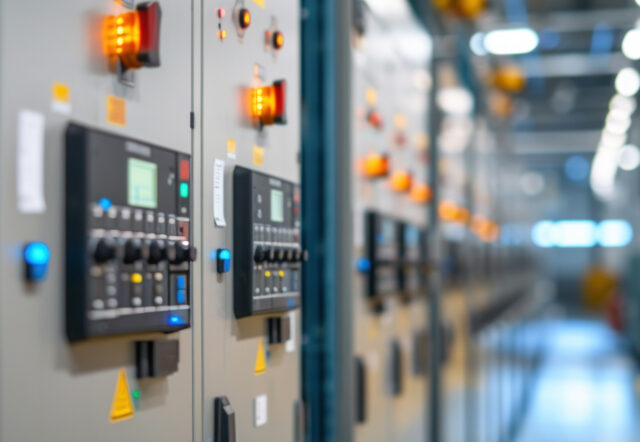

Substation automation
We empower engineers to virtually commission digital substations—integrating IEDs, SCADA systems, and automation logic—all in real time.
Expert origins
Designed by engineers for engineers
HYPERSIM is the result of over 30 years of joint expert research by Hydro-Québec, Réseau de Transport d’Électricité (RTE) and China Electric Power Research Institute (CEPRI). Since 2010, OPAL-RT has been continually developing HYPERSIM into the most high-performance real-time power system simulator available, at the forefront of innovation.
FAQ
Let our experts answer your questions and find the best match for you
What communication protocols do you support?
Consult our comprehensive list of supported protocols here.
What makes HYPERSIM a leading power system real time simulator?
HYPERSIM is built for speed, scalability, and precision, making it the most advanced power system real time simulator on the market. Our platform combines real-time EMT simulation with hardware-in-the-loop (HIL) and software-in-the-loop (SIL) capabilities, allowing users to model, test, and validate complex power systems in real-world conditions.
How does HYPERSIM support modeling and simulation of power electronics systems?
We offer a powerful environment for the modeling and simulation of power electronics systems using high-speed parallel processing and EMT accuracy. HYPERSIM enables engineers to replicate complex converter behavior, inverter dynamics, and switching events with unmatched detail and efficiency.
Can HYPERSIM be used in a power system simulation lab setting?
Yes, HYPERSIM is widely used in power system simulation labs around the world. Our platform supports academic research, product validation, and training by providing a flexible and open real-time simulation solution that integrates seamlessly with laboratory hardware for hands-on power systems testing.
What advantages does HYPERSIM offer for power system modeling and simulation?

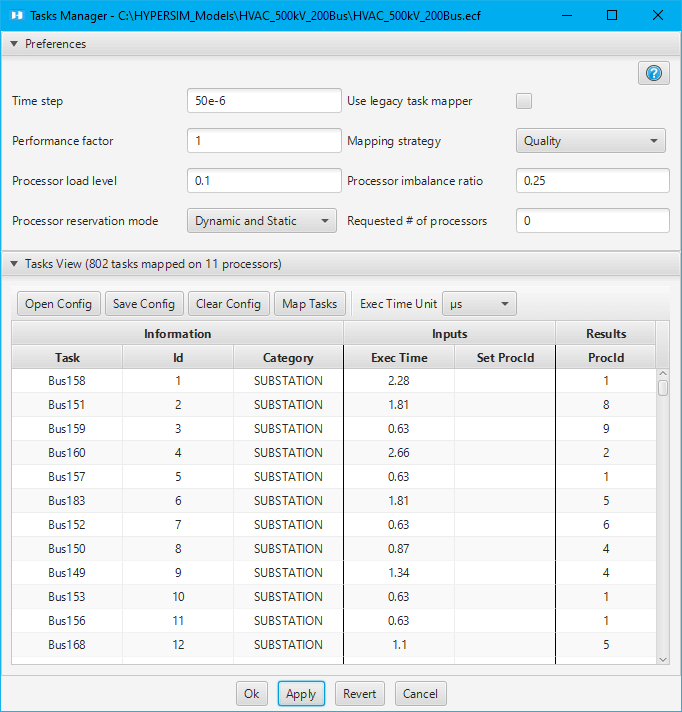

HYPERSIM provides a high-performance environment for power system modeling and simulation, featuring fast initialization, automated parallelization, and support for large EMT models. Our tools help engineers and operators evaluate grid behavior, test control strategies, and accelerate the design process.
How does HYPERSIM enhance power system simulation and power systems testing?
With HYPERSIM, we enable users to perform comprehensive power system simulation and testing under real-world scenarios. Our platform supports “what-if” analysis, inverter-based resource integration, and scalable testing options to help reduce risk, improve system resilience, and ensure operational readiness.
