Planning grid ready data center expansions using real-time simulation

Key Takeaways

• Grid capacity, fault strength, and operating limits should set expansion scope before land use, hall count, or tenant targets are fixed.
• Data center simulation is most useful when electrical load shape, cooling power, and staged buildout are tested as one system rather than separate estimates.
• Utility discussions improve when you present modelled contingencies, phase limits, and mitigation steps instead of a single peak load request.

Grid ready data centre expansion starts with a power system model before a floor plan.

That order matters because utilities size interconnections from load shape, fault levels, protection settings, and the margin left on nearby feeders and substations. Data centres used about 460 TWh of electricity in 2022. That scale explains why a new campus is treated like a grid asset rather than a normal commercial build. Grid risk starts long before energization.

If you’re planning data centre expansions without grid risk, you need data center simulation software that ties electrical behaviour, cooling load, and staging choices into one testable model. A data center simulator will show when a 40 MW phase fits, when a 60 MW phase fails, and what has to change before either one can connect. That approach gives you more than a hopeful peak number. It gives you a defensible interconnection position.

“Grid capacity is the site envelope.

Grid limits should define expansion scope before site design

Expansion scope should start with grid limits because the grid sets the maximum load, fault duty, ramp behaviour, and redundancy pattern the site can support. Site design that starts from land size or IT capacity will miss the constraint that actually decides how much power you can add.

A 90 MW campus proposed beside a 115 kV substation can look feasible on paper because the parcel is large and fibre access is excellent. The utility study can still cap the first phase at 32 MW if transformer loading, feeder congestion, or breaker ratings are already close to limits. You need those limits before you size halls, backup systems, and tenant commitments. Grid capacity is the site envelope.

That is why the first model should test the point of interconnection, upstream network strength, and the effect of N-1 outages. A good data center simulation will compare normal operation against a feeder loss, a transformer outage, and a fast load ramp from a new compute hall. If the site fails under those cases, your expansion target is wrong even if the land and capital budget look fine. Early correction is cheap, and late correction reshapes the whole programme.

Data center simulation reveals the true load shape

Data centre simulation should estimate the load shape the grid will actually see, not a flat number copied from nameplate totals. Utilities care about hourly variation, ramp rate, coincidence with local peaks, and backup system behaviour because those features decide interconnection risk and operating limits.

A 20 MW hall filled with graphics processors will not behave like a 20 MW hall filled with storage servers. One can ramp several megawatts within minutes when training jobs start, while the other stays far flatter across the day. Data center simulation software has to reflect that difference with measured workload assumptions, UPS losses, pump power, and cooling response. A single blended average hides the stress event the utility will study first.

This is where a data center simulator earns its place. You can test weekday peaks, backup recharge periods, and the load rebound after maintenance without touching the live site. Teams that skip this step usually present a tidy peak number, then spend months explaining why measured behaviour looks worse. Grid planners don’t object to growth, but they will push back on surprises.

Short circuit strength determines how much load can connect

Short circuit strength tells you how stiff the local grid is and how much new load it can accept without poor voltage performance or protection trouble. A site with weak fault levels can reach a practical limit long before it reaches the transformer rating printed on the single line diagram.

Consider a 40 MW expansion tied to a bus with low short circuit contribution from the upstream network. Motor starts, UPS rectifier behaviour, and harmonic controls can pull voltage low enough to trip sensitive equipment during a nearby disturbance. The same 40 MW on a stronger bus can operate normally with simpler mitigation. This is why grid impact work has to include fault studies, voltage sag cases, and protection coordination.

You also need to test how on-site generation interacts with that weak grid. Generators that look helpful during outages can complicate fault current, synchronizing, and transfer timing during normal switching. If you wait for the utility report to raise those issues, your mechanical and electrical design is already boxed in. Short circuit strength is a sizing input, and it isn’t a late-stage validation item.

Real-time models expose interconnection risk earlier

Real-time models expose interconnection risk earlier because they let you test the grid, the plant, and the controls as one active system. That matters when load ramps, transfer schemes, and protection logic interact too quickly for an offline study to capture with enough confidence.

A staged test can connect a substation model, UPS controls, generator controllers, and transfer logic in closed loop before construction documents are final. Teams using OPAL-RT can run those cases with actual controller code and see how the site behaves during feeder loss, breaker misoperation, or a step change in cooling load. That level of data is very different from a static spreadsheet. It shows timing, instability, and nuisance trips.

The value isn’t speed alone. You get a shared reference for electrical engineers, controls teams, and utility planners, so everyone argues from the same transient behaviour. A 150 millisecond voltage dip looks minor in a report, yet it can trigger a cascade of resets if ride-through settings are wrong. Real-time simulation surfaces those weak points while you still have room to adjust settings, topology, or phase size.

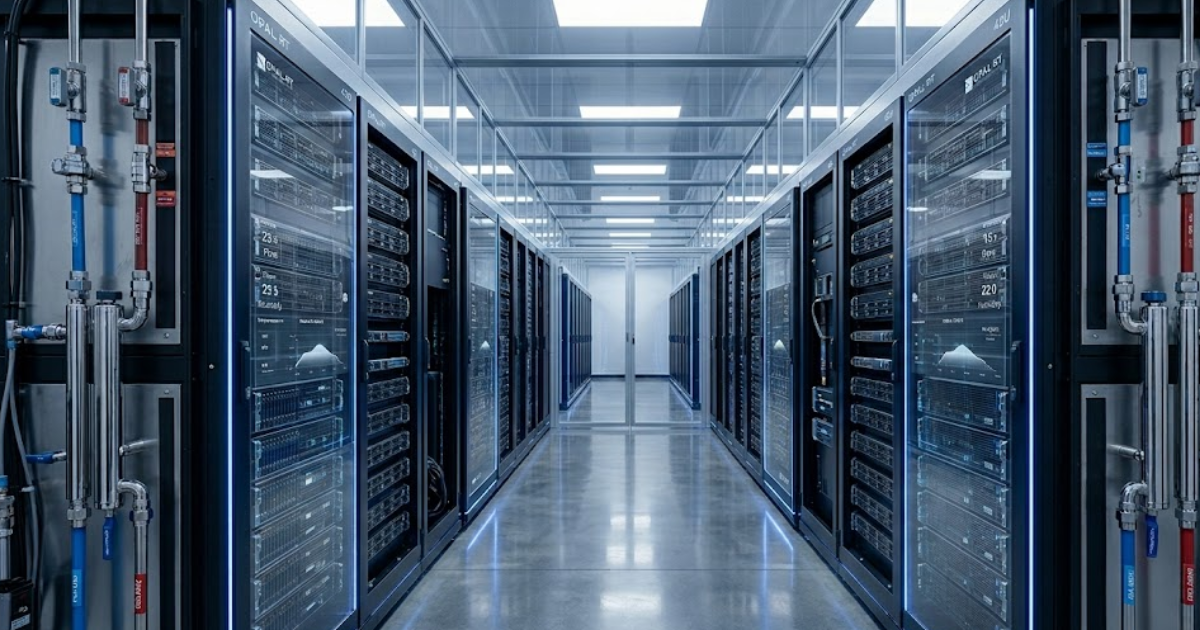

CFD simulation for data center plans cooling power accurately

CFD simulation for data center planning matters because cooling load sets a large share of the electrical load the grid must support. Electrical capacity planning fails when airflow, liquid cooling loops, and heat rejection are estimated loosely instead of modelled against the rack densities you will actually install.

Cooling and air movement can account for about 40% of a data centre’s energy use. A 12 MW IT hall with rear-door heat exchangers, condenser water pumps, and dry coolers can push total site load far above the server draw assumed in early business cases. Data center CFD simulation gives you rack inlet temperatures, recirculation patterns, and pump or fan response under partial and full occupancy. Those outputs belong in the grid model because thermal design changes electrical behaviour.

The same point applies when you compare air-cooled halls with direct-to-chip liquid cooling. One option can cut fan power yet raise pumping load and water plant complexity. Another can increase white-space flexibility while raising worst-case heat rejection on hot afternoons. A good data center CFD simulation will show where those tradeoffs land before you promise a phase size to the utility.

Expansion phasing works best when capacity follows simulation

Expansion phasing works when each phase matches verified grid capacity, thermal limits, and control settings at that stage of the campus. Phases built around a final target that the grid can’t support will force redesign, idle space, or temporary operating rules that make the site harder to run.

Picture a campus planned for 80 MW in four blocks. The first 20 MW can connect on existing utility assets, the second needs a new transformer, the third needs revised protection, and the fourth only works after transmission reinforcement. If you model each step, you can line up procurement and occupancy with technical reality. If you skip that sequence, phase one gets overbuilt for a phase four grid that does not yet exist.

That table isn’t paperwork. You’ll make cleaner capital choices when each phase has a pass or fail model instead of a hopeful date on a roadmap. It also keeps design, operations, and utility planning aligned to the same assumptions. Phasing will then protect reliability instead of hiding unresolved interconnection risk.

Nameplate assumptions hide the worst grid impacts

Nameplate assumptions hide grid impacts because they ignore coincidence, diversity loss, cooling response, and abnormal operating states. Utilities will test the site under conditions that rarely appear in sales presentations, so a plan based on cabinet counts or average watts per rack will understate the hard part of the connection request.

A 30 MW proposal can look modest when each hall is shown at partial occupancy and cooling is treated as a fixed ratio. Trouble starts when the same campus reaches high rack density, restarts after maintenance, or recharges battery strings after a brief outage. Those moments often create the steepest draw the grid sees. The common blind spots are easy to name once you model them:

• Server clusters can ramp from idle to near full draw within minutes after workload scheduling shifts.
• Cooling plants add pump and fan power at the same time that IT heat load reaches its peak.
• Battery recharge periods can stack extra megawatts on top of normal hall load after short disturbances.
• Generator transfer schemes can create short voltage swings and awkward recovery timing.
• Redundancy assumptions can fail after a feeder or transformer outage removes diversity.

Each item turns a tidy planning number into a different interconnection case. You don’t need perfect forecasting to study them. You need measured ranges, sensible worst cases, and a model that ties IT load to mechanical and electrical response. That is the difference between a safe planning margin and a surprise commissioning problem.

“The better your evidence, the better your expansion choices will be.”

Data center simulator outputs should guide utility discussions

Data center simulator outputs should guide utility discussions because they replace generic load requests with tested operating cases, phase limits, and mitigation options. Utilities respond better when you show how the site behaves during contingencies, not just how much power the finished campus hopes to draw.

A utility meeting changes when you walk in with simulated feeder loading, voltage sag plots, breaker duty, and phase-specific load shapes. A team asking for 50 MW at a single connection point will hear one set of questions. A team showing that 20 MW fits now, another 15 MW fits after protection changes, and the final block needs upstream work will hear a far more useful set. Specific cases give planners something they can study instead of something they have to guess.

That is the standard you should hold before site design hardens. Grid ready growth comes from disciplined testing, clear assumptions, and honest phase limits, not from optimistic nameplate math. OPAL-RT belongs in that process when teams need closed-loop validation that ties grid behaviour, controls, and plant response into one model. The better your evidence, the better your expansion choices will be.
